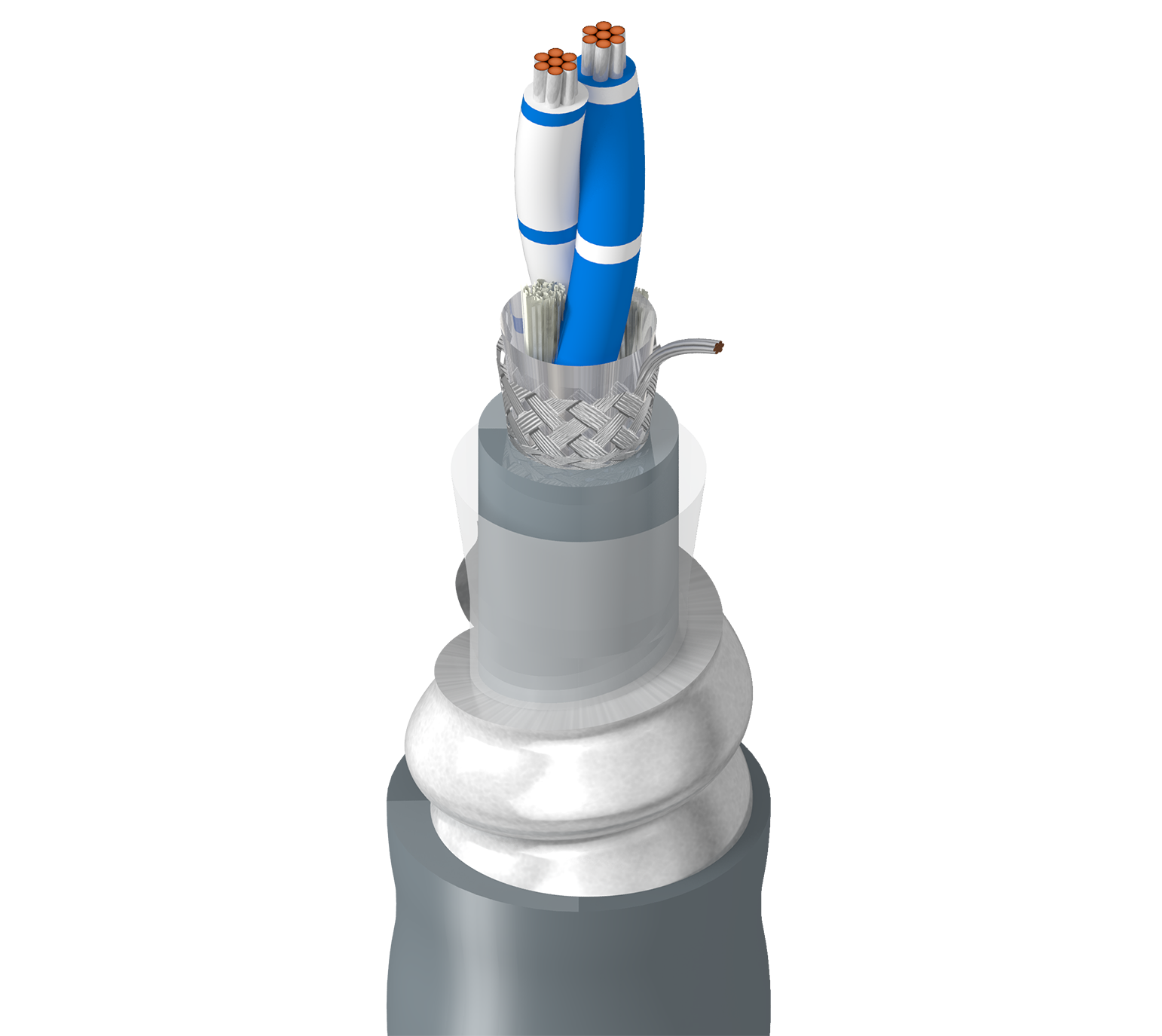

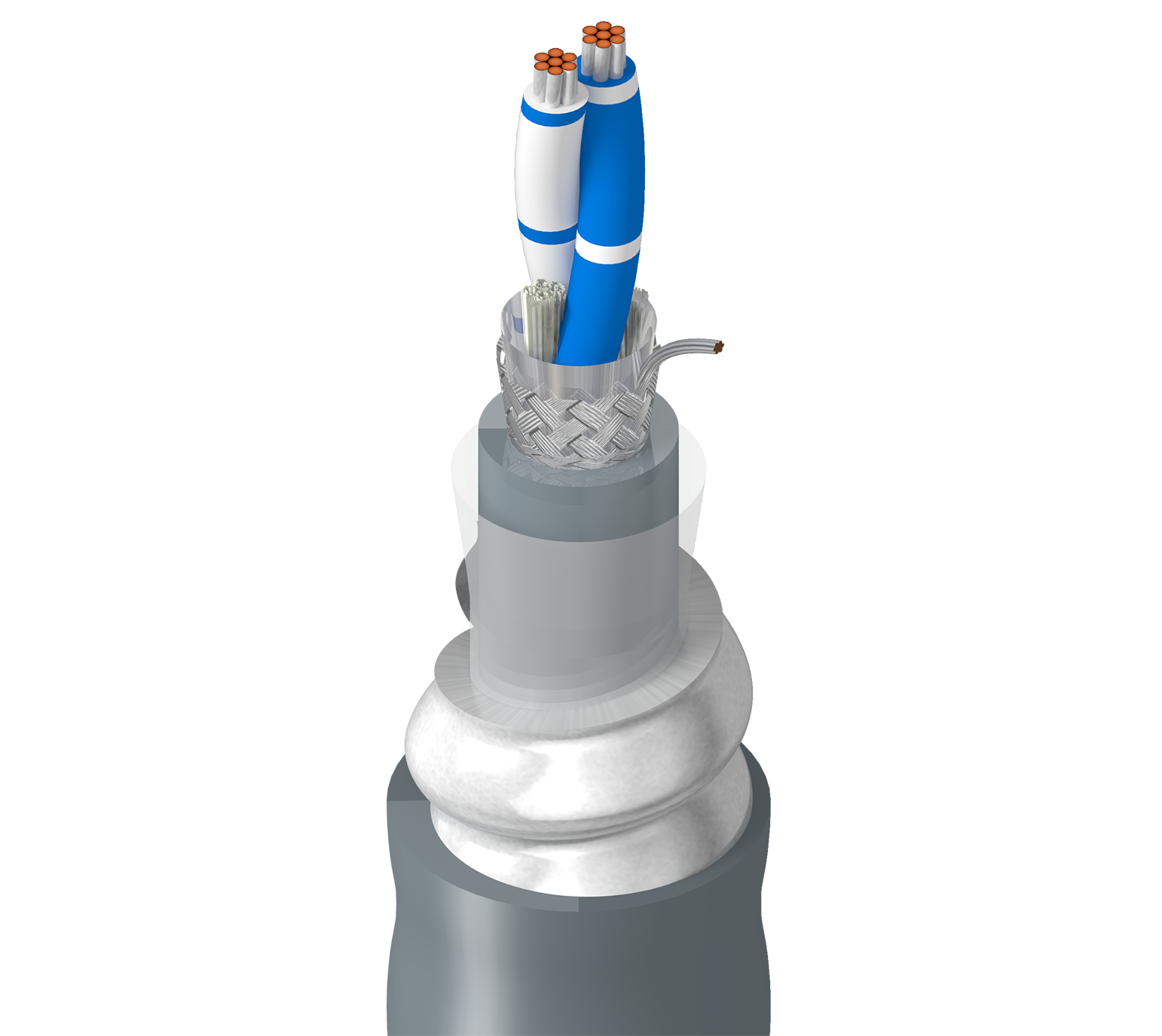

Product Number: 129841

RS485, 1 Pr #24 Str TC, PE Ins, OS+TC Brd, PVC Jkt, AIA Armor, PVC Jkt, CM

RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM

  • Availability:
    Global
  • Global inventory:
    Available
129841
  • 129841
1 of 1

Specifications

Report An Error

Suitable Applications

exposure to rodent, crush, or cut through force, burial, POS, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 24 AWG 7x32 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Color Code
Pair(s) PE - Polyethylene 0.023 in (0.58 mm) White/Blue Stripe & Blue/White Stripe

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Braid Tinned Copper (TC) 90%

Inner Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.035 in (0.89 mm) 0.232 in (5.89 mm)

Armor

Armor Type & Material
AIA - Aluminum Interlock Armor

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.045 in (1.1 mm) 0.512 in (13.0 mm)

Overall Cable Diameter (Nominal)

0.512 in (13.0 mm)

Electricals

Element Nom. Characteristic Impedence Max. Current
Pair(s) 120 Ohm 2.1 Amps per Conductor at 25ºC

High Frequency (Nominal/Typical)

Element Frequency [MHz]
Pair(s) 1

Voltage

UL Voltage Rating
300 V (CM)

Temperature

UL Temperature
80°C

Table Notes

-40C CSA

Max. Pull Tension

200 lbs (91 kg)

Bulk Cable Weight

126 lbs/1000ft (188 kg/km)

Environmental Suitability

Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CMG
