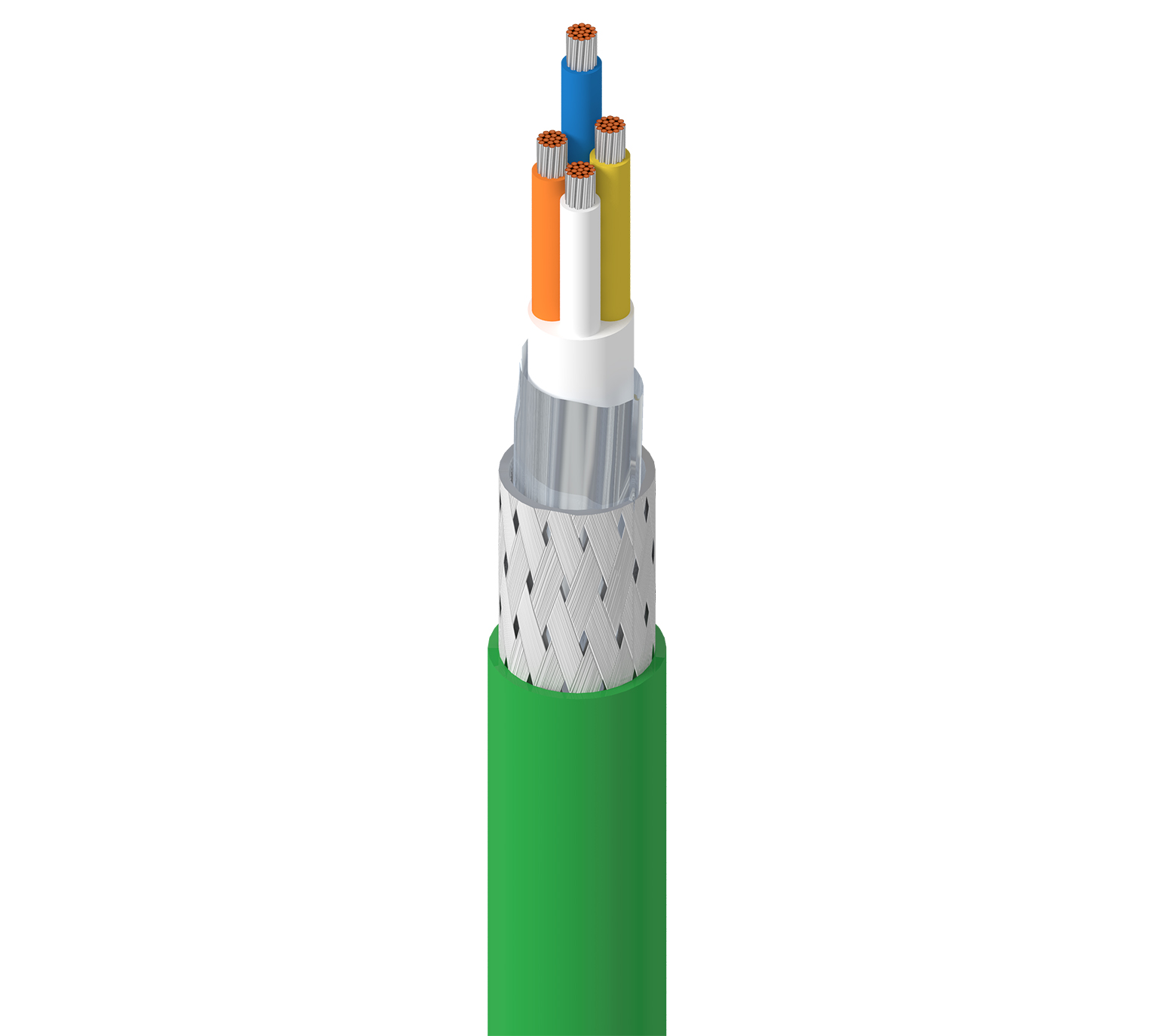

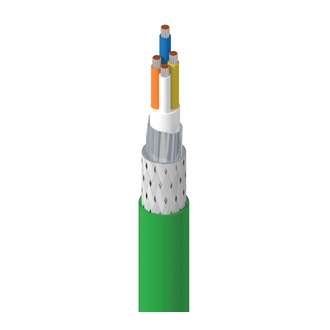

Product Number: 70008PU

DataTuff® 5E, 1Q #22 Str TC, PO ins, F/B, PUR HF jkt, PROFINET type C, 5M Trailing

DataTuff® 5E, 1 Quad AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, PUR Halogen Free jacket , PROFINET type C, 5M trailing

  • Availability:
    Global
  • Status:
    Active
70008PU
  • 70008PU
1 of 1

Specifications

Expand All

Suitable Applications

PROFINET Cat5e, Flex trailing, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Conductor

Size Stranding Material No. of Pairs
22 AWG 19x34 TC - Tinned Copper 2

Insulation

Material Nom. Insulation Diameter Color Code
PP - Polypropylene 1.63 mm (0.0642 in) White & Blue & Yellow & Orange
1 Quad

Cable Core

Description
1 quad with center filler

Inner Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 4.2 mm (0.17 in)

Inner Jacket Table Notes

Bedding

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 85%

Outer Jacket

Separator Material Nom. Diameter
non-Woven Tape PUR - Polyurethane (Halogen Free) 6.5 mm (0.26 in)

Outer Jacket1 Table Notes

Jacket color green (RAL 6018)

Overall Cable Diameter (Nominal)

6.5 mm (0.26 in)

Electricals

Max. Conductor DCR Nom. Characteristic Impedance
57.1 Ohm/km (17.4 Ohm/1000ft) 100 Ohm

Delay

Max. Delay Nom. Velocity of Prop.
530 ns/100m 68%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. ACRF (ELFEXT) [dB] Min. SRL (Structural Return Loss) [dB]
1 2.1 65 64
4 4 56 52 23
10 6.3 50 44 25
16 8 47 40 25
31.25 11.4 43 34 23.6
62.5 16.5 38 28 21.5
100 21.3 35 24 20.1

High Frequency Table Notes

Reference standard: ISO/IEC 11801 ed 2.0, Cat 5e

Transfer Impedance

Frequency Max. Transfer Impedance
10 Mhz Max. 10 mOhm/m

Voltage

UL Voltage Rating Voltage Rating
300 V 300 V

Temperature

UL Temperature Operating Installation Storage
80°C -40°C to +80°C -5°C To +60°C -40°C To +80°C

Trailing/Flexing Properties

Motion Number of Cycles Radius Speed Acceleration Traverse Length Torsion Angle
Trailing/Bending 5,000,000 60 mm 3 m/s 3
Torsion/Twisting 1,000,000 60 mm 12 1 m 180 °

Table Notes

Drag chain

Bend Radius

Stationary Min. Installation Min. Flexing Min.
30 mm (1.2 in) 65 mm (2.6 in) 65 mm (2.6 in)

Max. Pull Tension

160 N (36 lbf)

Environmental Suitability

Indoor, Indoor, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

Horizontal flametest

AWM Compliance

AWM 20549

Data Category

Category 5e

ISO/IEC Compliance

ISO/IEC 11801 Ed. 2.2:2002/A2:2010/C1:2011

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = Pass

European Directive Compliance

EU CE Mark

Update and Revision

Revision Number: 0.373 Revision Date: 09-30-2025

Update and Revision

Revision Number: 0.373 Revision Date: 09-30-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
70008PU.01B100 Green Flat Box 100 m 8719605009463
70008PU.01305 Green Reel 305 m 8719605009449
70008PU.01500 Green Reel 500 m 8719605009456
70008PU.011000 Green Reel 1,000 m 8719605009432
