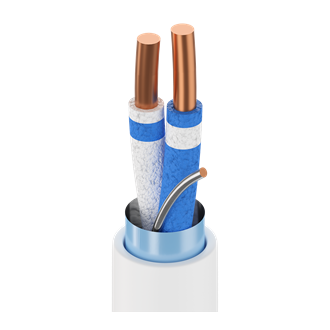

Product Number: 7703NH

LonWorks, 1PR #22 Sol BC, PO ins, OS, LSNH Jkt, 300V, Dca

LonWorks, 1 Pair AWG 22 Bare Copper - Solid, Polyolefin (PO, PE, PP) insulation, Overall Beldfoil® shielding, LSZH / FRNC jacket , 300V, CPR Dca

  • Availability:
    Global
  • Status:
    Active

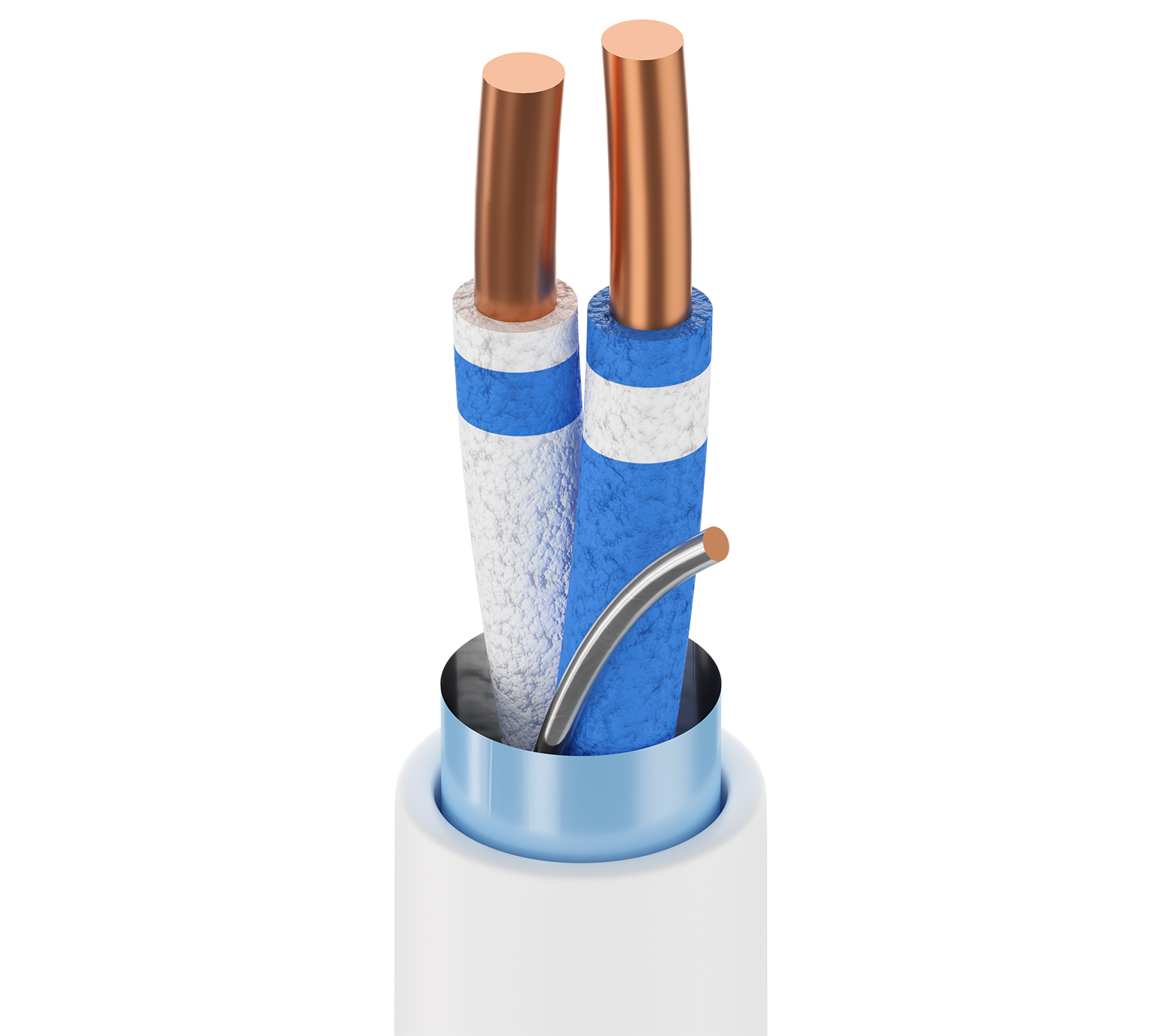

7703NH

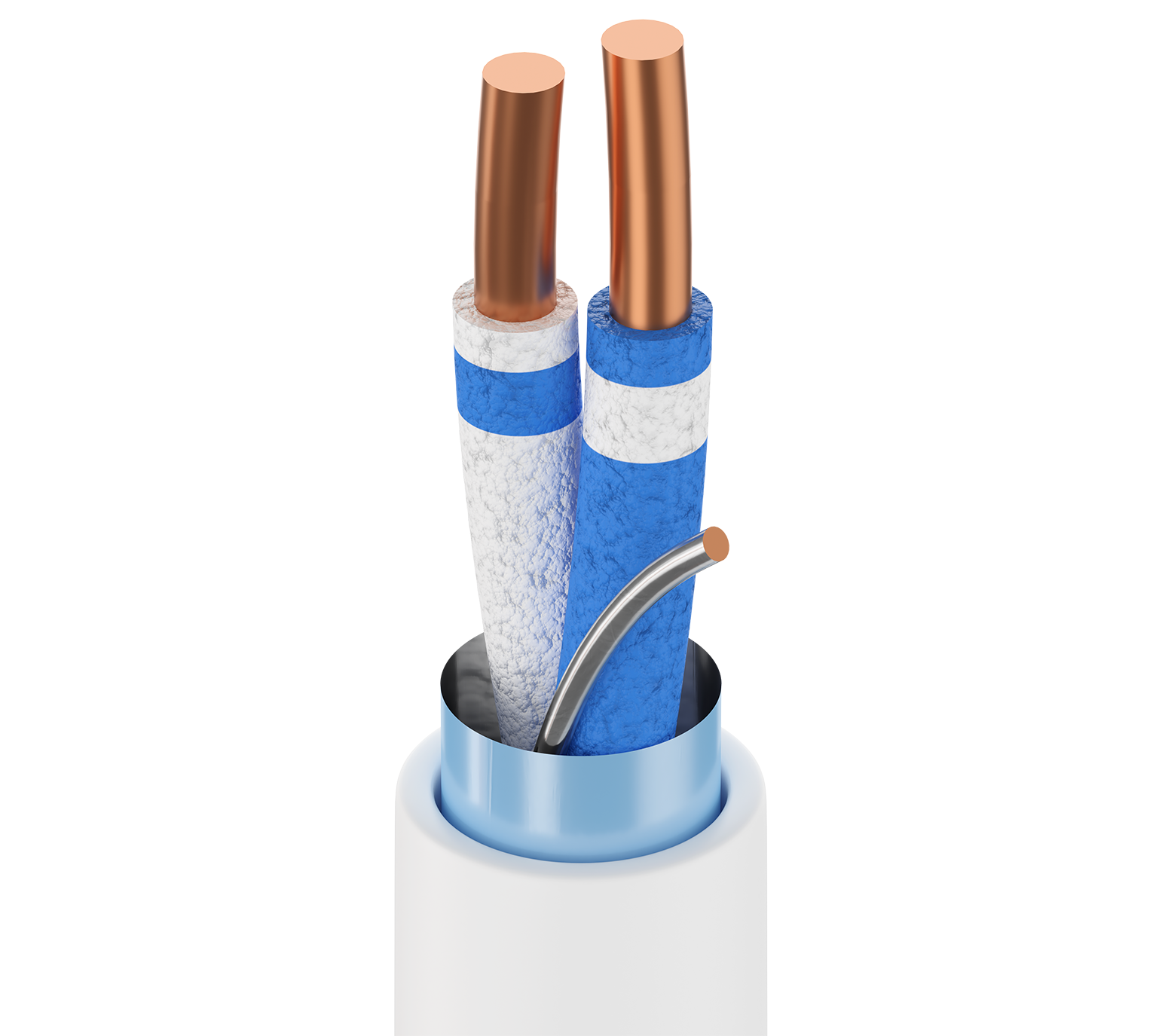

  • 7703NH
1 of 1

Specifications

Expand All

Suitable Applications

LonWorks, instrumentation, Low capacitance

Conductor

Size Stranding Material
22 AWG Solid BC - Bare Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 1.55 mm (0.0610 in) White/Blue & Blue/White

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (Solid) TC

Outer Shield Table Notes

Aluminum inside

Outer Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 4.6 mm (0.18 in)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Max. Current
55 Ohm/km 40 pF/m (12 pF/ft) 80 pF/m (24 pF/ft) 100 Ohm 2.5 Amps per Conductor

Nom Outer Shield DCR@Cond DCR1-cnv

34 Ohm/km (10 Ohm/1000ft)

High Frequency (Nominal/Typical)

Frequency Nom. Insertion Loss (Attenuation) [dB/100m]
0.772 MHz 1.8
1 MHz 2
4 MHz 3.6
10 MHz 5.5
16 MHz 7
20 MHz 7.8

Voltage

Voltage Rating
300 V

Temperature

Operating
-15°C To +80°C

Bend Radius

Installation Min.
80 mm

Max. Pull Tension

50 N (11 lbf)

Bulk Cable Weight

26.6 kg/km

Environmental Suitability

Indoor - Euroclass Dca

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Dca-s1,d1,a1; CPR UKCA Class: Dca-s1,d1,a1

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.502 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.502 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
7703NH.00C100 White Coil 100 m 8719605013477
7703NH.00305 White Reel 305 m 8719605013453
7703NH 009305M White Reel 305 m
7703NH.00500 White Reel 500 m 8719605013460
7703NH 009500M White Reel 500 m
