Product Number: 82761

Electronic, 2 C #22 Str TC, FEP Ins, OS, PVC Jkt, CMP

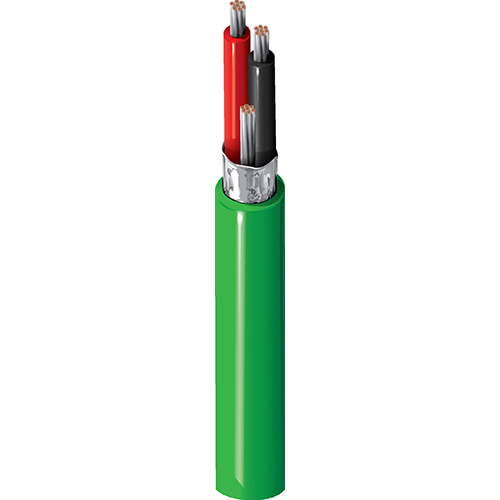

Electronic Cable, 2 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMP

  • Availability:
    Global
  • Status:
    Active
82761
  • 82761
1 of 1

Specifications

Expand All

Suitable Applications

indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7x30 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) FEP - Fluorinated Ethylene Propylene 0.007 in (0.18 mm) 0.042 in (1.1 mm) Black & Red

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.014 in (0.36 mm) 0.118 in (3.00 mm)

Overall Cable Diameter (Nominal)

0.118 in (3.00 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Inductance Max. Current
Pair(s) 15 Ohm/1000ft 35 pF/ft (110 pF/m) 67 pF/ft (220 pF/m) 42 Ohm 0.16 µH/ft (0.52 µH/m) 2.8 Amps per Conductor at 25ºC

Nom Outer Shield DCR@Cond DCR1-cnv

18.2 Ohm/1000ft (59.7 Ohm/km)

Voltage

UL Voltage Rating
300 V (CMP)

Temperature

UL Temperature Operating
75°C -20°C to +75°C

Bend Radius

Stationary Min. Installation Min.
1.18 in (30.0 mm) 1.18 in (30.0 mm)

Max. Pull Tension

27 lbs (12 kg)

Bulk Cable Weight

11 lbs/1000ft

Environmental Suitability

Indoor - Plenum, Indoor

Flammability / Reaction to Fire

NFPA 262, UL 910 (Plenum), FT6

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

8761

Update and Revision

Revision Number: 0.551 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.551 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.
