Product Number: 9729ZH

Electronic, 2 Pr #24 Str TC, PO Ins, Ind Shield, LSZH Jkt, CMG

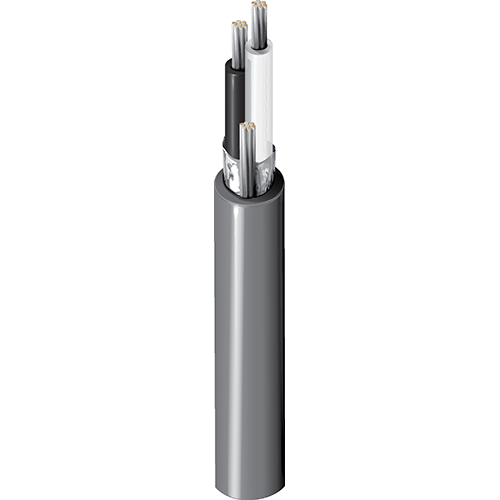

Electronic, 2 Pair 24AWG (7x32) Tinned Copper, PO Insulation, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH Outer Jacket, CMG

  • Availability:
    Global
  • Status:
    Active
9729ZH
  • 9729ZH
1 of 1

Specifications

Expand All

Suitable Applications

Computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 2 24 AWG 7x32 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PE - Polyethylene (Foam) 0.0185 in (0.470 mm) 0.061 in (1.5 mm) Black and Red, Black and White

Inner Shield

Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC Each pair

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.048 in (1.2 mm) 0.266 in

Overall Cable Diameter (Nominal)

0.266 in

Electricals

Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Inductance Nom. Velocity of Prop. Max. Current
28.8 Ohm/1000ft 17.42 Ohm/1000ft (57.15 Ohm/km) 12.5 pF/ft (41.0 pF/m) 23.2 pF/ft (76.1 pF/m) 100 Ohm 0.23 µH/ft (0.75 µH/m) 76% 8.4 Amps per Conductor at 30ºC

High Frequency (Nominal/Typical)

Frequency Nom. Insertion Loss (Attenuation) [dB/100ft]
0.384 MHz 0.74
0.7056 MHz 0.87
0.768 MHz 0.88
1.024 MHz 0.94
1.4112 MHz 1.01
1.536 MHz 1.03
2.048 MHz 1.13
2.8224 MHz 1.29
3.072 MHz 1.35
4.096 MHz 1.57
5.6448 MHz 1.78
6.144 MHz 1.84
8.192 MHz 2.13
11.2896 MHz 2.45
12.288 MHz 2.57
24.576 MHz 3.57

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
75°C -20°C to 75°C

Bend Radius

Stationary Min. Installation Min.
2.66 in (67.6 mm) 2.66 in

Max. Pull Tension

27.5 lbs (12.5 kg)

Bulk Cable Weight

33 lbs/1000ft

Environmental Suitability

Indoor, Indoor

Flammability / Reaction to Fire

UL1685 FT4 Loading, FT4

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMG

AWM Compliance

AWM 21088

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.413 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.413 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length UPC
9729ZH 060500 Chrome Reel 500 ft 612825382348
