Multi-Pair Cable

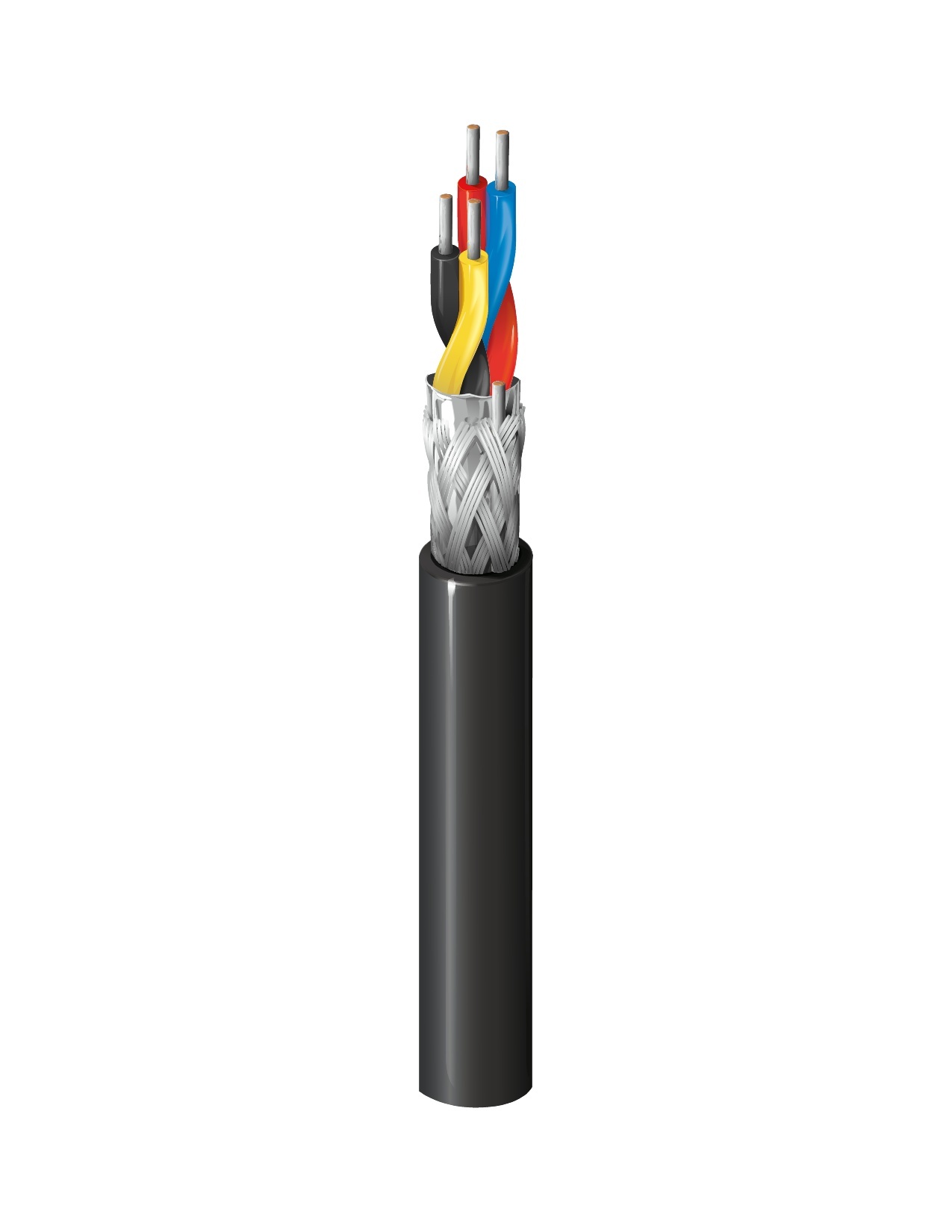

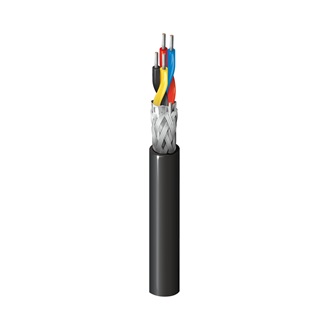

Computer POS Cable, 22 AWG solid tinned copper conductors, solid PO insulation, twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (55% coverage) + polyester tape, 22 AWG solid tinned copper drain wire, PVC jacket, CM rated

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Expand All

Product Overview

Suitable Applications	point of sale; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Pair(s)	2	22 AWG	Solid	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Pair(s)	PE - Polyethylene	0.019 in (0.48 mm)	0.064 in (1.6 mm)	Red & Blue, Yellow & Black

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	22 AWG (Solid) TC
Braid	Tinned Copper (TC)	61%

Outer Jacket

Material	Nom. Thickness	Nom. Diameter	Ripcord
PVC - Polyvinyl Chloride	0.033 in (0.84 mm)	0.270 in	Yes

Overall Cable Diameter (Nominal)	0.270 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence	Nom. Velocity of Prop.	Max. Current
20.6 Ohm/1000ft	15.5 pF/ft (50.9 pF/m)	27.5 pF/ft (90.2 pF/m)	100 Ohm	66%	4.8 Amps per Conductor at 30ºC

Nom Outer Shield DCR@Cond DCR1-cnv	4.2 Ohm/1000ft (14 Ohm/km)

High Frequency (Nominal/Typical)

Frequency	Nom. Insertion Loss (Attenuation) [dB/100ft]
0.3	0.4
0.6	0.53
1	0.65
1.5	0.78

Voltage

UL Voltage Rating
300 V

Mechanical Characteristics

Temperature

UL Temperature	Operating
60°C	-20°C to 60°C

Bend Radius

Stationary Min.	Installation Min.
2.70 in (68.6 mm)	2.70 in

Max. Pull Tension	65.04 lbs (29.50 kg)
Bulk Cable Weight	37 lbs/1000ft

Standards and Compliance

Environmental Suitability	Indoor, Indoor
Flammability / Reaction to Fire	UL 1685 UL loading
CPR Compliance	CPR Euroclass: Fca
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2582
CEC / C(UL) Compliance	CM
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	89855

History

Update and Revision	Revision Number: 0.212 Revision Date: 09-07-2025
Footnote	C - CRATE REEL PUT-UP., Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.
