123109A

RS485, 4 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, AIA Armor, PVC Jkt, CM, PLTC

...

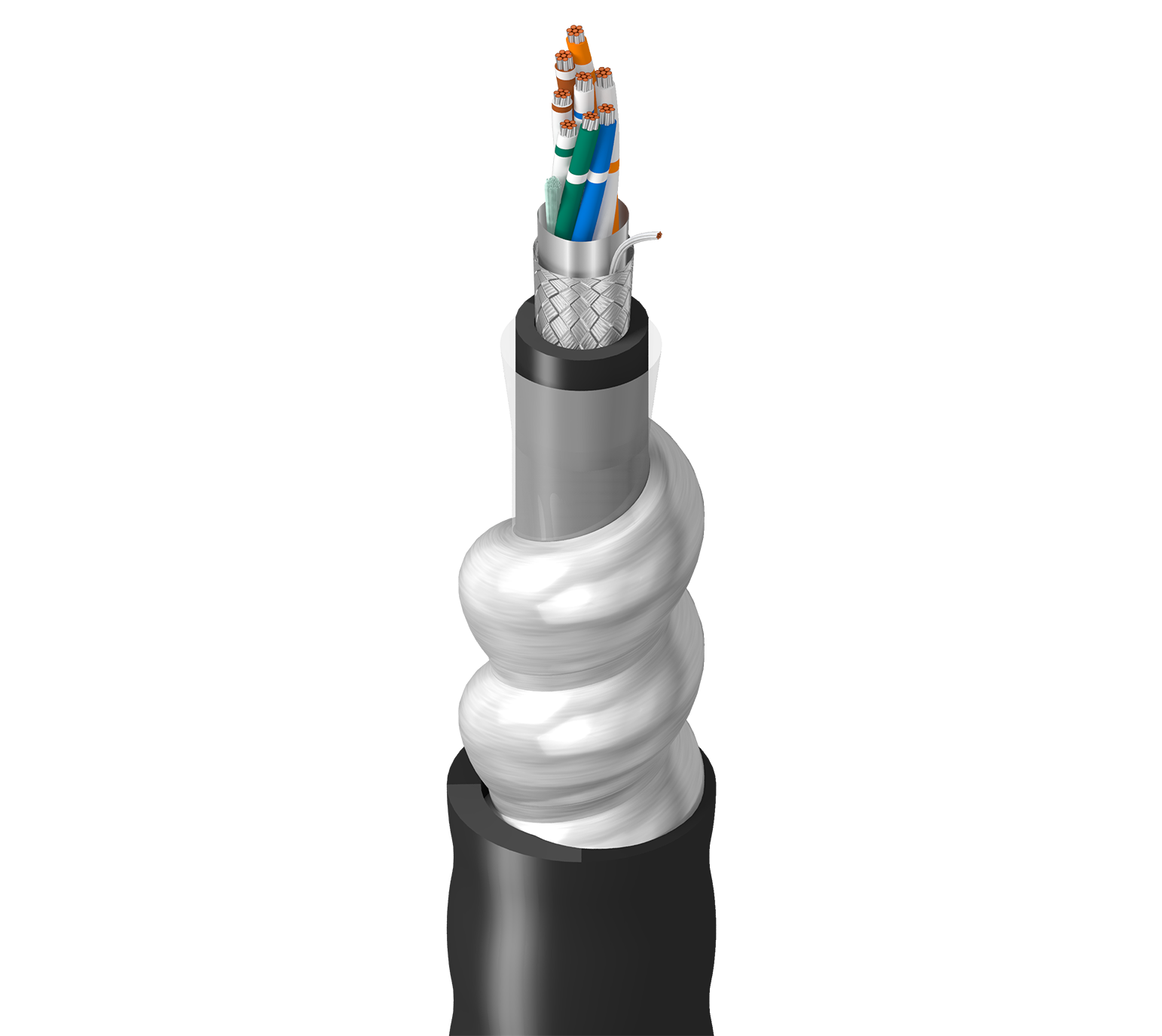

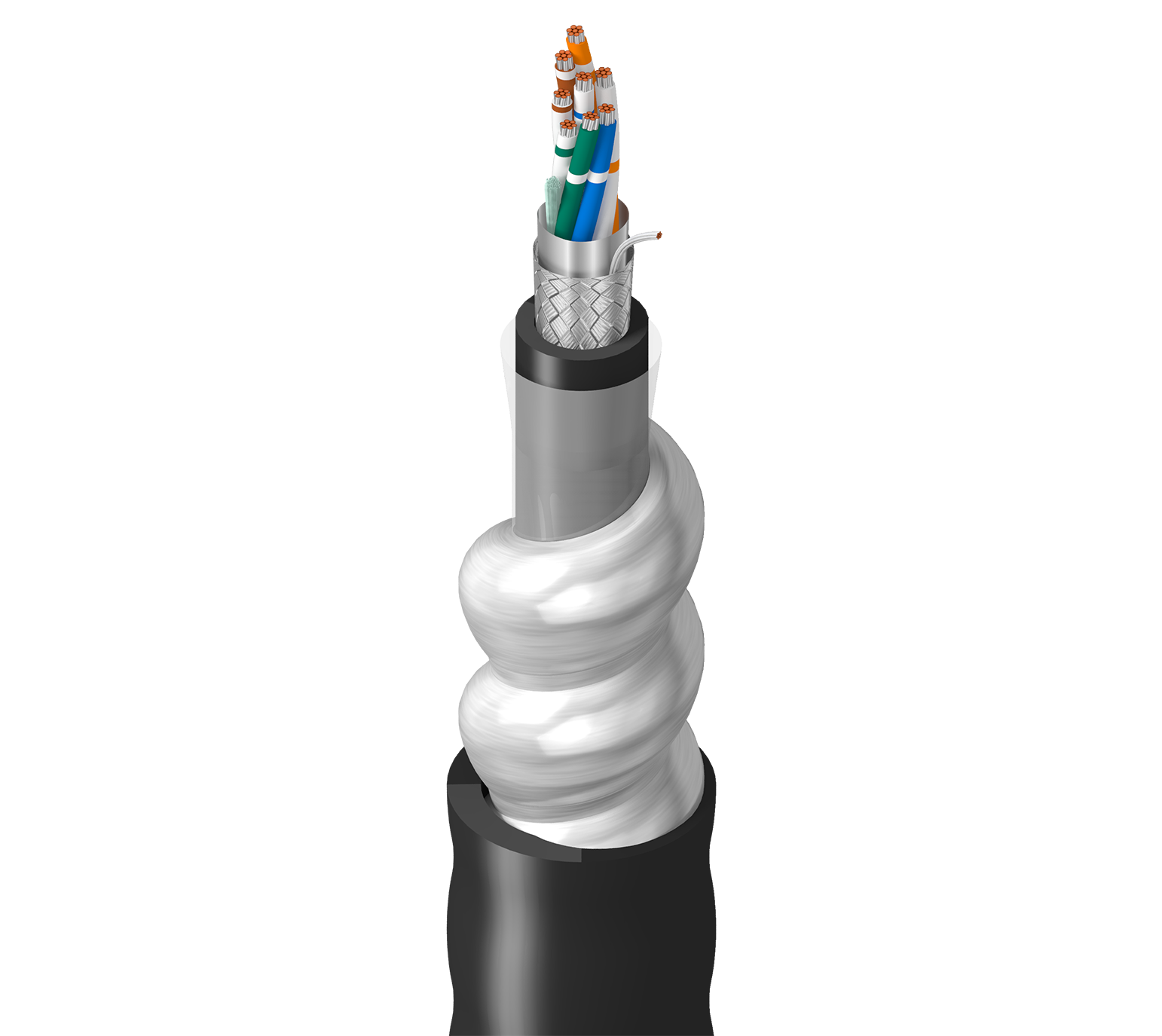

RS-485, 4 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM, PLTC
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 4 22 AWG 7x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) PE - Polyethylene (Foam) 0.023 in (0.58 mm) 0.075 in (1.9 mm) White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe HDPE
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC
Braid Tinned Copper (TC) 65%
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.053 in (1.3 mm) 0.448 in (11.4 mm)
Armor
Armor Type & Material
AIA - Aluminum Interlock Armor
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.050 in (1.3 mm) 0.744 in (18.9 mm)

Overall Cable Diameter (Nominal)

0.744 in (18.9 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 14.7 Ohm/1000ft (48.2 Ohm/km) 11 pF/ft (36 pF/m) 120 Ohm 78% 2.7 Amps per Conductor at 25ºC

Nom. Outer Shield DCR

2.53 Ohm/1000ft (8.30 Ohm/km)

High Frequency (Nominal/Typical)
Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 1 0.5 dB/100ft
Voltage
UL Voltage Rating
300 V (CM, PLTC)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -40°C to +60°C

Table Notes

-40C

Bend Radius
Stationary Min. Installation Min.
7.5 in (190 mm) 7.5 in

Max. Pull Tension

250 lbs (110 kg)

Bulk Cable Weight

233 lbs/1000ft (347 kg/km)

Standards and Compliance

Environmental Suitability

Indoor, Sunlight Resistance

Flammability / Reaction to Fire

UL1685 UL Loading, 1202

NEC / UL Compliance

Article 725, Article 800

CEC / C(UL) Compliance

CMG HLBCD

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.74 Revision Date: 05-05-2023
