3109DB

RS-485, 4 Pr, 22AWG, Str TC, PE Ins, OS+TC Brd, CPE Jkt, CM, PLTC, Sun Res, Dir Bur, Oil Resistant

...

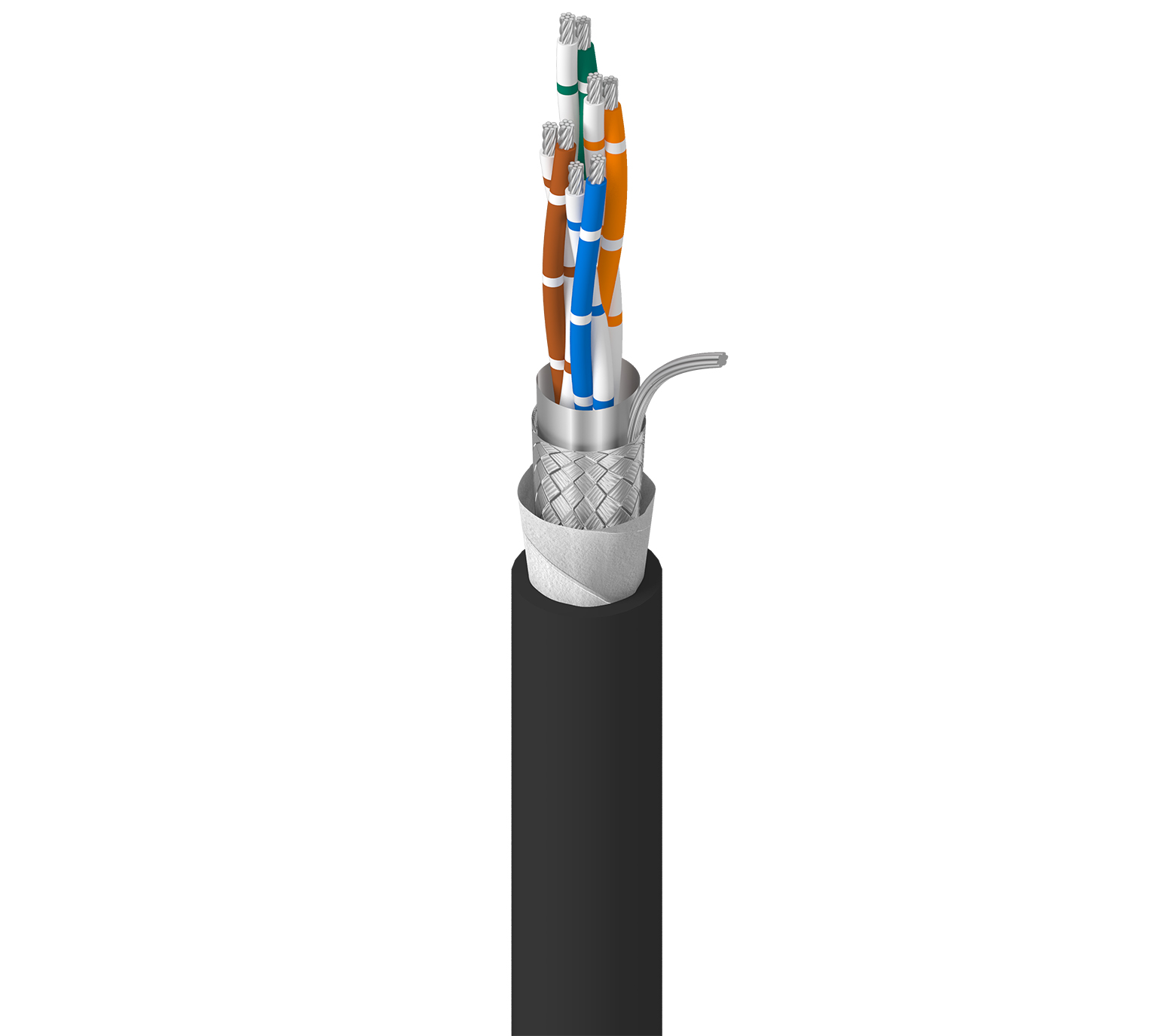

RS-485, 120 Ohm, 4 pair 22AWG (7x30) tinned copper Datalene® insulaton, Overall Foil + 65% Tinned Copper Braid, CPE jacket, CM, PLTC, SUN RES DIR BUR and oil-resistant
Get Product Alerts
Specifications
Product Overview

Suitable Applications

direct burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Construction Details
Conductor
Element Number of Element AWG Stranding Material
Pair(s) 4 22 7x30 TC - Tinned Copper
Insulation
Element Material Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) PE - Polyethylene (Foam) 0.023 in 0.075 White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe HDPE
Outer Shield Material
Shield Type Material Coverage Drainwire Type
Tape + Braid Bi-Laminate (Alum+Poly) + Tinned Copper (TC) 100% + 65% 22 AWG (7x30) TC

Waterblocking

Waterblock Tape

Outer Jacket Material
Material Thickness Nom. Diameter
CPE - Chlorinated Polyethylene 0.053 in 0.481 in

Cable Diameter (Nominal)

0.481 in

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 14.7 Ohm/1000ft 11 pF/ft 20.9 pF/ft 120 Ohm 78% 2.7 Amps per Conductor at 25ºC

Nom Outer Shield DCR

2.95 Ohm/1000ft

High Frequency (Nominal/Typical)
Element Frequency [MHz] Nom. Insertion Loss
Pair(s) 1 MHz 0.5 dB/100ft
Voltage
UL Voltage Rating
300 V (CM, PLTC)
Mechanical Characteristics
Temperature
UL Rating Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
4.8 in 4.8 in

Max. Pull Tension

80 lbs

Bulk Cable Weight

58 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Fire Resistance

UL1685 UL Loading, FT1, IEC 60332-1-2

NEC / UL Compliance

Article 725, Article 800, CM, PLTC

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Oil Resistance: Passes Oil Res I & II Per UL1277, Table 10.17

History

Update and Revision

Revision Number: 0.77 Revision Date: 02-16-2021
