7201A

MachFlex™, 2 Pr #24 Str BC, PO Ins, OS+TC Brd, PVC Jkt, CM

...

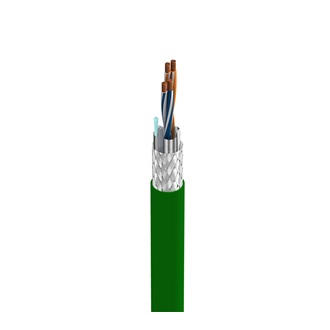

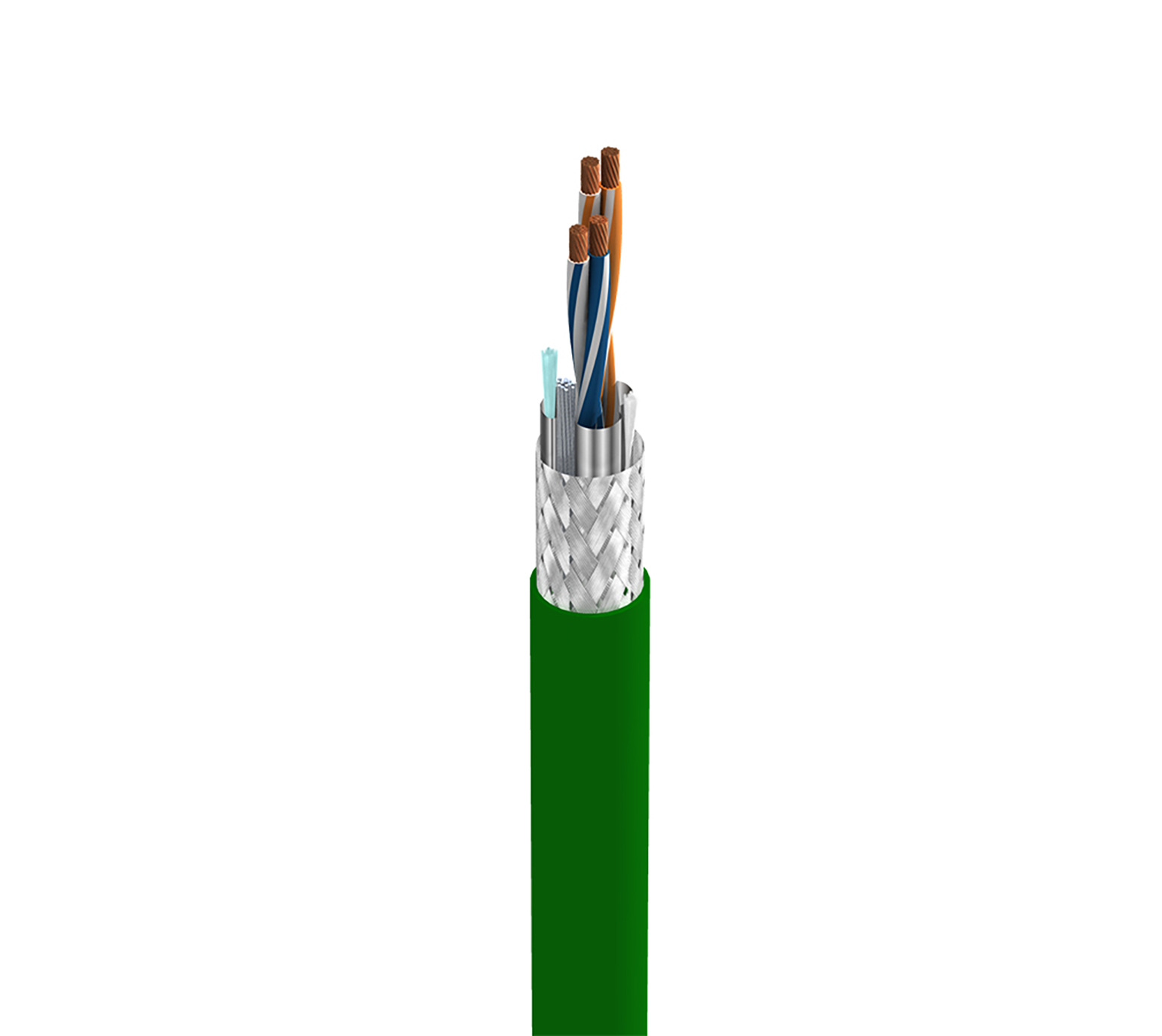

MachFlex™ for High Flex, 2 Pair 24AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CM
Request Sample Get Product Alerts

Specifications
Product Overview

Suitable Applications

Flex Data, RS232, RS485

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 2 24 AWG 41x40 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PE - Polyethylene (Foam) 0.0115 0.0555 in (1.41 mm) White/Blue & Blue/White, Orange/ White & White/Orange
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (41x40) TC
Braid Tinned Copper (TC) 89%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.045 in (1.1 mm) 0.322 in

Overall Cable Diameter (Nominal)

0.322 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Velocity of Prop. Max. Current
27.8 Ohm/1000ft 15 pF/ft (49 pF/m) 26 pF/ft (85 pF/m) 72% 1.6 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
3.22 in (81.8 mm) 3.22 in

Max. Pull Tension

87 lbs (39 kg)

Bulk Cable Weight

56 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Oil Resistance, Oil Resistance

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

RS Type: 232/485

Product Notes

Notes

1 million flex cycles based on proper installation techniques in a C-track cable guide.

History

Update and Revision

Revision Number: 0.399 Revision Date: 12-22-2023

Part Numbers
Item # Color Putup Type Length UPC Footnote
7201A X4P500 Green X4P Reel 500 ft 612825182702 C
7201A X4P1000 Green X4P Reel 1,000 ft 612825182696 C
