89842

RS485, 2 Pr #24 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

...

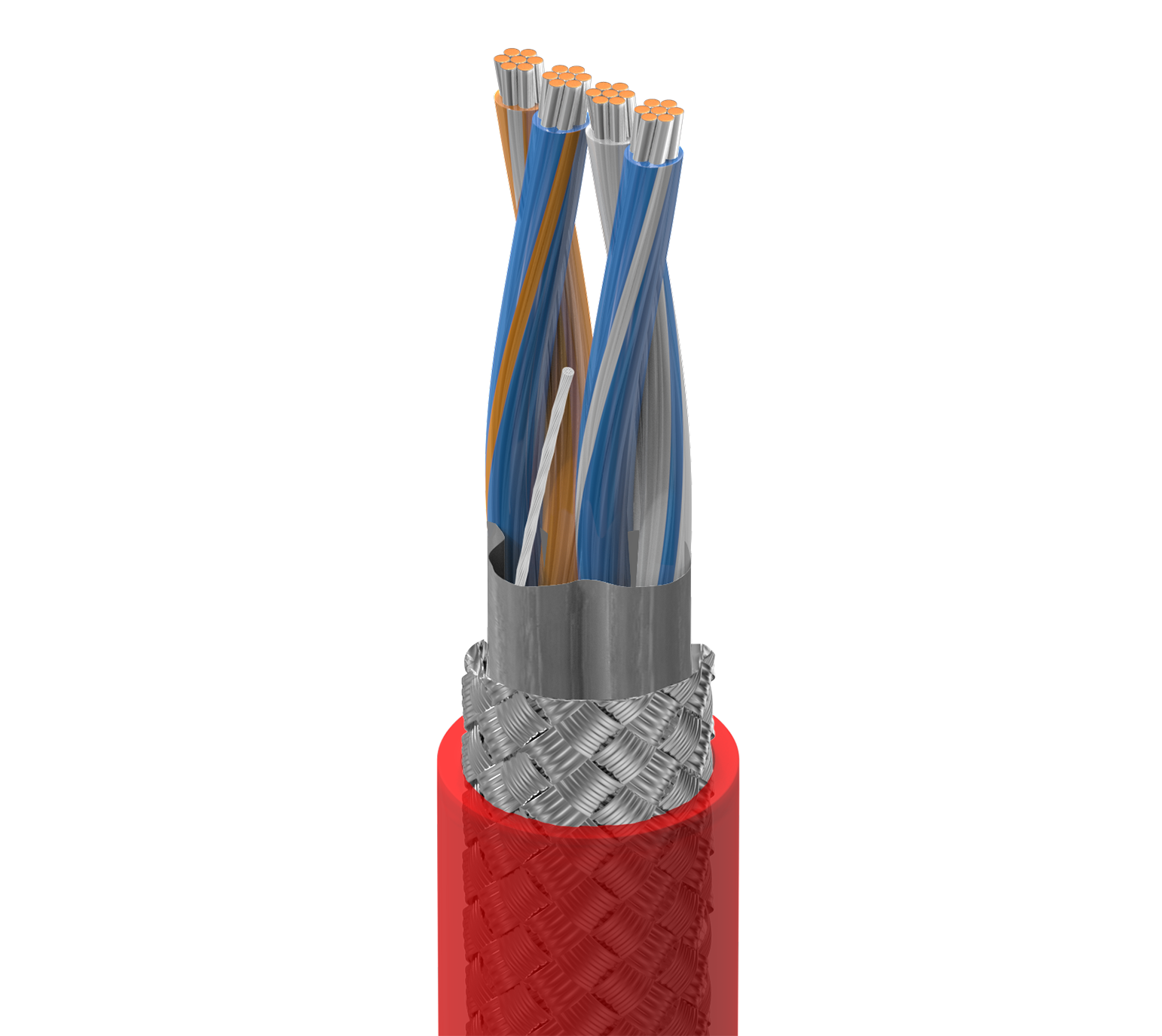

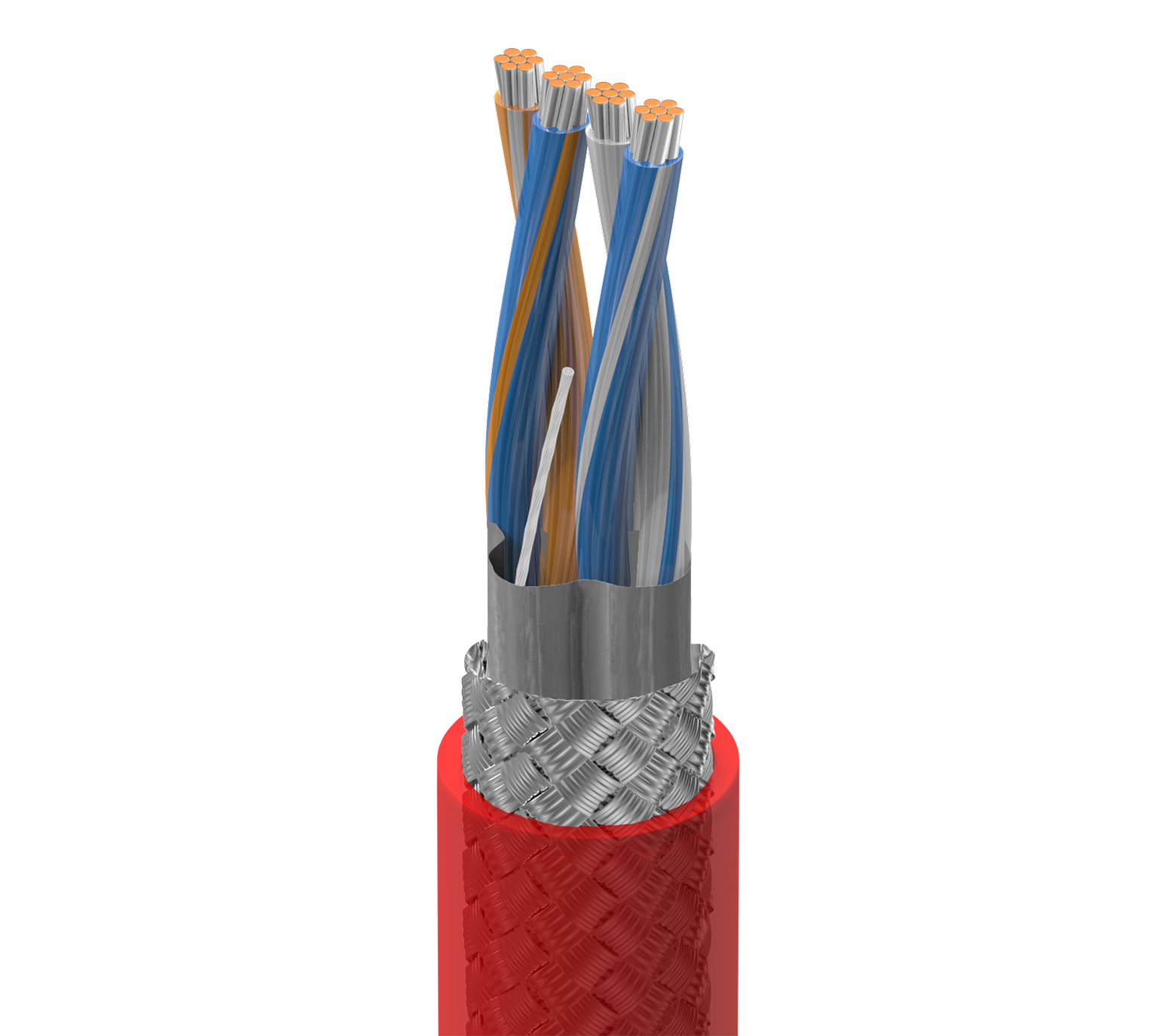

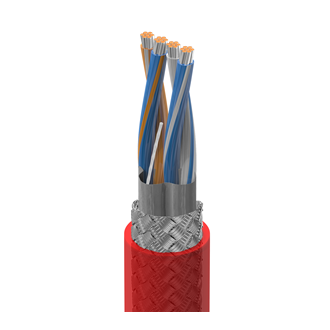

RS-485, 2 Pair 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, FEP Outer Jacket, CMP
Get Product Alerts
Specifications
Product Overview

Suitable Applications

RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

Construction Details
Conductor
Element Number of Element AWG Stranding Material
Pair(s) 2 24 7x32 TC - Tinned Copper
Insulation
Element Material Thickness Color Code
Pair(s) FEP - Fluorinated Ethylene Propylene (Foam) 0.023 in White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe
Outer Shield Material
Shield Type Material Coverage Drainwire Type
Tape + Braid Bi-Laminate (Alum+Poly) + Tinned Copper (TC) 100% + 90% 24 AWG (7x32) TC
Outer Jacket Material
Material Thickness Nom. Diameter
FEP - Fluorinated Ethylene Propylene 0.014 in 0.305 in

Cable Diameter (Nominal)

0.305 in

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 24 Ohm/1000ft 12 pF/ft 22 pF/ft 120 Ohm 76% 4 Amps per Conductor at 25ºC

Nom Outer Shield DCR

3.1 Ohm/1000ft

High Frequency (Nominal/Typical)
Element Frequency [MHz] Nom. Insertion Loss
Pair(s) 1 MHz 0.6 dB/100ft
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Rating Operating
150°C -70°C to +200°C
Bend Radius
Stationary Min. Installation Min.
3.25 in 3.25 in

Max. Pull Tension

68 lbs

Bulk Cable Weight

44 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Oil Resistance

Flammability / Fire Resistance

NFPA 262 Plenum Flame Test (UL910), FT6, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

9842

Product Notes

Notes

Oil and Gas Resistant

History

Update and Revision

Revision Number: 0.366 Revision Date: 02-16-2021
