Product Number: RIPRXU

RemoteIP Cable, 4 Pair, U/UTP, CMR-CMX

RemoteIP Cable, 4 Pair, 22 AWG Solid Bare Copper Conductors, U/UTP, CMR/CMX-Outdoor, UV Resistant PVC Jacket

  • Availability:
    Global
  • Status:
    Active

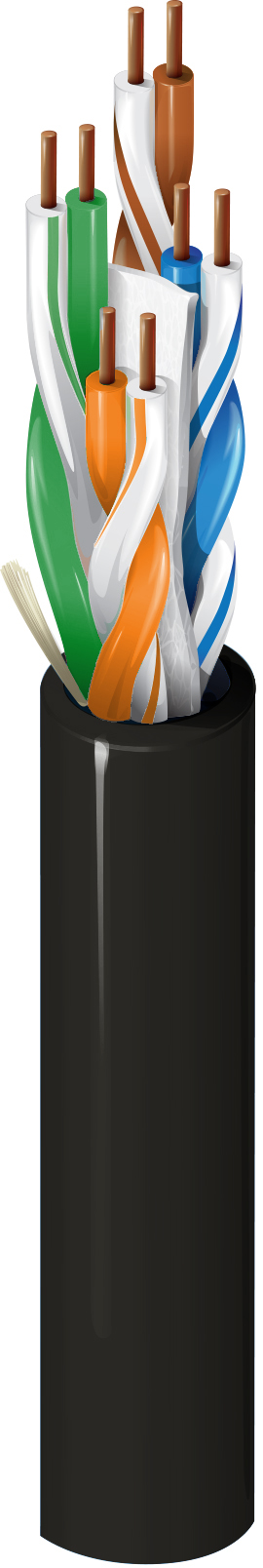

RIPRXU
  • RIPRXU
1 of 1

Specifications

Expand All

Suitable Applications

Indoor/Outdoor, Premise Horizontal Cable, Ethernet up to 1GBASE-T, Surveillance, PoE++, PoE+, PoE, Category 6

Conductor

Element Size No. of Pairs
Pair(s) 22 AWG 4

Insulation

Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Outer Jacket

Separator Material Nom. Diameter
Dielectric Tape (Patented) PVC - Polyvinyl Chloride 0.30 in (7.6 mm)

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
56.5 Ohm/km (17.2 Ohm/1000ft) 330 pF/100m

Delay

Max. Delay Nom. Velocity of Prop.
537.6 ns/100m 70%

Voltage

UL Voltage Rating
300 V (CMR, CMX-Outdoor)

Temperature

UL Temperature Operating Installation Storage
75°C -40°C To +75°C -25°C To +75°C -40°C To +80°C

Bend Radius

Installation Min.
2.50 in (63.5 mm)

Max. Pull Tension

25 lbs (11 kg)

Bulk Cable Weight

35 lbs/1000ft (52 kg/km)

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire

Flammability / Reaction to Fire

UL1666 Riser

NEC / UL Compliance

Article 800, Article 725, CMR-CMX, CMR, CMX-Outdoor

CEC / C(UL) Compliance

CMR-CMX OUTDOOR

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical system. Recommended for use with REVConnect Large Core, Part Number RVUECOGY.

Update and Revision

Revision Number: 0.30 Revision Date: 11-19-2025

Update and Revision

Revision Number: 0.30 Revision Date: 11-19-2025


Report An Error

Part Numbers

Item # Color Putup Type Length
RIPRXU 0101000 Black Reel 1,000 ft
