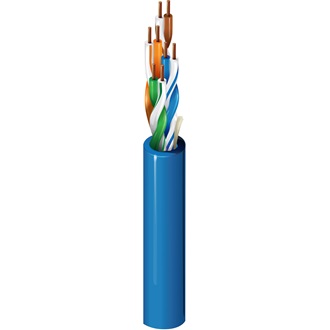

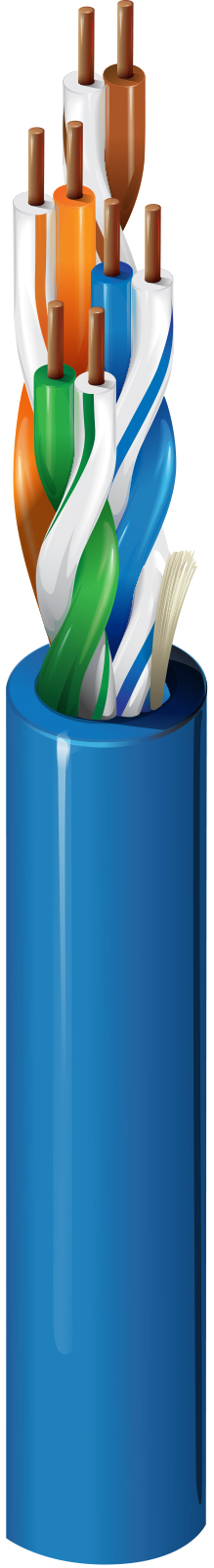

Category 5E+ Cable, 4 Bonded-Pairs, U/UTP, CMR
|
Suitable Applications |
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>. |
| AWG | Stranding | Material | Number of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 4 |
| Material | Color Code |
|---|---|
| PO - Polyolefin | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
|
Bonded-Pair |
Yes |
|---|
| Material | Nom. Diameter | Ripcord |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.202 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance | Max. Capacitance Unbalance | Nom. Mutual Capacitance |
|---|---|---|---|
| 90 Ohm/km | 3% | 66 pF/100m | 15 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nom. Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 25 ns/100m | 70% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. PSNEXT [dB] | Min. PSACR [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2.0 dB/100m | 69.3 dB | 67.3 dB | 65.8 dB | 20.0 dB | 100 ± 12 Ohm | 105 ± 10 Ohm | 40.0 dB | 35.0 dB |
| 4 MHz | 4.0 dB/100m | 60.3 dB | 56.3 dB | 53.8 dB | 23.0 dB | 100 ± 12 Ohm | 100 ± 10 Ohm | 40.0 dB | 23.0 dB |
| 8 MHz | 5.7 dB/100m | 55.8 dB | 50.1 dB | 47.7 dB | 24.5 dB | 100 ± 12 Ohm | 100 ± 10 Ohm | 40.0 dB | 16.9 dB |
| 10 MHz | 6.4 dB/100m | 54.3 dB | 47.9 dB | 45.8 dB | 25.0 dB | 100 ± 12 Ohm | 100 ± 10 Ohm | 40.0 dB | 15.0 dB |
| 16 MHz | 8.1 dB/100m | 51.2 dB | 43.1 dB | 41.7 dB | 25.0 dB | 100 ± 12 Ohm | 100 ± 10 Ohm | 38.0 dB | 10.9 dB |
| 20 MHz | 9.1 dB/100m | 49.8 dB | 40.7 dB | 39.8 dB | 25.0 dB | 100 ± 12 Ohm | 100 ± 10 Ohm | 37.0 dB | 9.0 dB |
| 25 MHz | 10.2 dB/100m | 48.3 dB | 38.2 dB | 37.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 36.0 dB | 7.0 dB |
| 31.25 MHz | 11.4 dB/100m | 46.9 dB | 35.5 dB | 35.9 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 35.1 dB | |
| 62.5 MHz | 16.4 dB/100m | 42.4 dB | 26.0 dB | 29.9 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 32.0 dB | |
| 100 MHz | 21.0 dB/100m | 39.3 dB | 18.3 dB | 25.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 30.0 dB | |
| 155 MHz | 26.6 dB/100m | 36.4 dB | 9.8 dB | 22.0 dB | 19.0 dB | 100 ± 18 Ohm | 100 ± 10 Ohm | 28.1 dB | |
| 200 MHz | 30.4 dB/100m | 34.8 dB | 4.4 dB | 19.8 dB | 19.0 dB | 100 ± 18 Ohm | 100 ± 10 Ohm | 27.0 dB | |
| 250 MHz | 34.4 dB/100m | 32.3 dB | 17.8 dB | 18.0 dB | 100 ± 20 Ohm | 100 ± 10 Ohm | 26.0 dB | ||
| 300 MHz | 38.0 dB/100m | 28.1 dB | 14.3 dB | 18.0 dB | 100 ± 20 Ohm | 100 ± 10 Ohm | |||
| 350 MHz | 41.4 dB/100m | 27.1 dB | 12.9 dB | 17.0 dB | 100 ± 20 Ohm | 100 ± 10 Ohm | |||
| 400 MHz | 44.5 dB/100m | 26.3 dB | 11.8 dB | 17.0 dB | 100 ± 22 Ohm | 100 ± 10 Ohm | |||
| 450 MHz | 47.6 dB/100m | 25.5 dB | 10.7 dB | 17.0 dB | 100 ± 22 Ohm | 100 ± 10 Ohm |
| UL Voltage Rating |
|---|
| 300 V (CMR) |
| UL Rating. | Operating | Installation | Storage |
|---|---|---|---|
| 75°C | -20°C To +75°C | 0°C To +50°C | -20°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 0.5 in | 2.0 in |
|
Max. Pull Tension |
40 lbs |
|---|---|
|
Bulk Cable Weight |
22 lbs/1000ft |
|
Environmental Suitability |
Riser, Indoor |
|---|---|
|
Sustainability |
Product Lens™, Environmental Product Declaration (EPD) Available |
|
Flammability / Fire Resistance |
UL 1666 Riser, FT4, FT4, IEC 60332-1-2 |
|
NEC / UL Compliance |
Article 800, CMR |
|
CEC / C(UL) Compliance |
CMR |
|
ICEA Compliance |
S-90-661-2012 |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3 |
|
NEMA Compliance |
NEMA WC-63.1 |
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 5e |
|
CENELEC Compliance |
Segregation class according EN50174-2=a |
|
CPR Euroclass |
Eca |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
1701A |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 350 MHz are for Engineering Information Only. Print Includes Descending Footage Markings from Max. Put-Up Length to 0. |
|---|
|
Update and Revision |
Revision Number: 0.406 Revision Date: 02-16-2021 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN |
|---|---|---|---|---|
| 1700A 0101000 | Black | Reel | 1,000 ft | 612825121589 |
| 1700A 010U1000 | Black | UnReel | 1,000 ft | 612825121572 |
| 1700A 006U1000 | Blue | UnReel | 1,000 ft | 612825121503 |
| 1700A 0061640 | Blue | Reel | 1,640 ft | 612825121527 |
| 1700A 0063000 | Blue | Reel | 3,000 ft | |
| 1700A.00305 | Gray | Reel | 305 m | 8719605003881 |
| 1700A 008U1000 | Gray | UnReel | 1,000 ft | 612825121534 |
| 1700A F2V1000 | Gray | Reel | 1,000 ft | 612825121398 |
| 1700A F2VU1000 | Gray | UnReel | 1,000 ft | 612825121381 |
| 1700A F2V3000 | Gray | Reel | 3,000 ft | 612825121404 |
| 1700A 0051000 | Green | Reel | 1,000 ft | 612825121497 |
| 1700A 005U1000 | Green | UnReel | 1,000 ft | 612825121480 |
| 1700A 0031000 | Orange | Reel | 1,000 ft | 612825121459 |
| 1700A 003U1000 | Orange | UnReel | 1,000 ft | 612825121442 |
| 1700A B021000 | Purple | Reel | 1,000 ft | 612825121374 |
| 1700A B02U1000 | Purple | UnReel | 1,000 ft | 612825121367 |
| 1700A 0021000 | Red | Reel | 1,000 ft | 612825121428 |
| 1700A 002U1000 | Red | UnReel | 1,000 ft | 612825121411 |
| 1700A 0023000 | Red | Reel | 3,000 ft | 612825121435 |
| 1700A 0091000 | White | Reel | 1,000 ft | 612825121558 |
| 1700A 009U1000 | White | UnReel | 1,000 ft | 612825121541 |
| 1700A 0093000 | White | Reel | 3,000 ft | 612825121565 |
| 1700A 004U1000 | Yellow | UnReel | 1,000 ft | 612825121466 |
