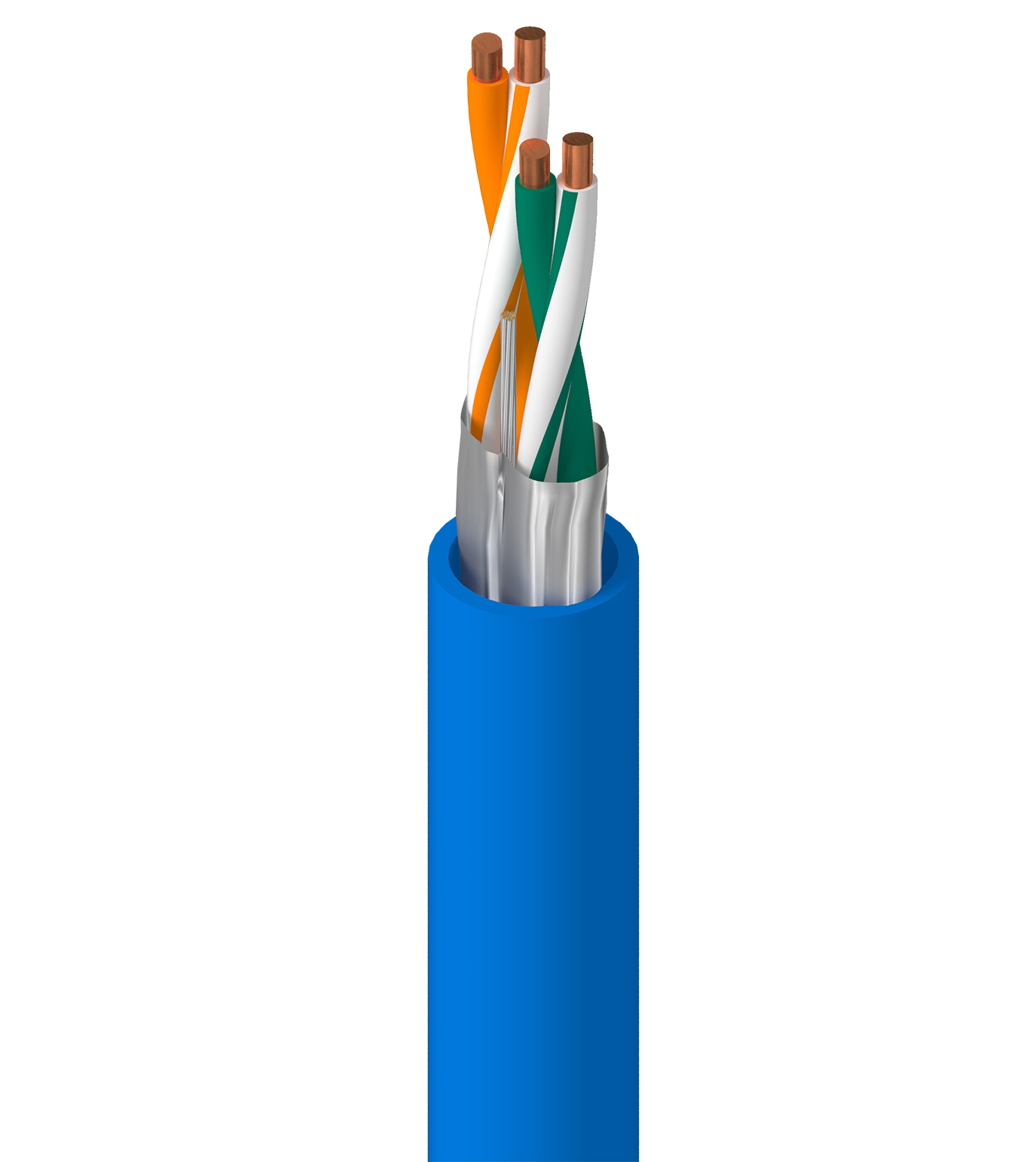

7933A

DataTuff® Cat 5e, 2 Bonded-Pr #24 Sol BC, PO Ins, OS, PVC Jkt, CMR SUN RES OIL RES

...
Industrial Ethernet Cat 5e, 2 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMR SUN RES OIL RES
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
24 Solid BC - Bare Copper 2
Insulation
Material Color Code
PO - Polyolefin White/Orange Stripe & Orange, White/Green Stripe & Green

Bonded-Pair

Yes

Outer Shield
Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Jacket
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.235 in No
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. Capacitance Unbalance Nom. Mutual Capacitance
93.8 Ohm/km 3% 90 pF/100m 15 pF/ft
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%]
552 ns/100m 45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.1 dB/100m 65.3 dB 62.3 dB 63.2 dB 60 dB 63.8 dB 60.8 dB 23 dB 23 dB 100 ± 20.2 Ohm 105 ± 10 Ohm
4 MHz 4.0 dB/100m 56.3 dB 53.3 dB 56.3 dB 49 dB 51.7 dB 48.7 dB 23 dB 23 dB 100 ± 14.2 Ohm 100 ± 10 Ohm
8 MHz 5.6 dB/100m 51.8 dB 48.8 dB 46.2 dB 43 dB 45.7 dB 42.7 dB 23 dB 24.5 dB 100 ± 11.3 Ohm 100 ± 10 Ohm
10 MHz 6.3 dB/100m 50.3 dB 47.3 dB 43.9 dB 41 dB 43.8 dB 40.8 dB 25 dB 25 dB 100 ± 11.3 Ohm 100 ± 10 Ohm
16 MHz 8.0 dB/100m 47.3 dB 44.3 dB 35.2 dB 36 dB 39.7 dB 36.7 dB 25 dB 25 dB 100 ± 11.3 Ohm 100 ± 10 Ohm
20 MHz 9.0 dB/100m 45.8 dB 42.8 dB 36.5 dB 33.5 dB 37.7 dB 34.7 dB 25 dB 25 dB 100 ± 11.3 Ohm 100 ± 10 Ohm
25 MHz 10.1 dB/100m 44.3 dB 41.3 dB 34.2 dB 30.9 dB 35.8 dB 32.8 dB 25.5 dB 24.3 dB 100 ± 11.3 Ohm 100 ± 10 Ohm
31.25 MHz 11.4 dB/100m 42.9 dB 39.9 dB 31.3 dB 28 dB 33.9 dB 30.9 dB 23.6 dB 23.6 dB 100 ± 13.2 Ohm 100 ± 10 Ohm
62.5 MHz 16.5 dB/100m 38.4 dB 35.4 dB 21.6 dB 19 dB 27.8 dB 24.8 dB 21.5 dB 21.5 dB 100 ± 16.9 Ohm 100 ± 10 Ohm
100 MHz 21.3 dB/100m 35.3 dB 32.3 dB 17.1 dB 11 dB 23.8 dB 20.8 dB 20.1 dB 20.1 dB 100 ± 20.0 Ohm 100 ± 10 Ohm
155 MHz 28.1 dB/100m 32.5 dB 29.5 dB 4.4 dB 1.4 dB 19.9 dB 16.9 dB 15.8 dB 100 ± 25.0 Ohm 100 ± 15 Ohm
200 MHz 32 dB/100m 30.8 dB 27.8 dB 4 dB 1 dB 17.7 dB 14.7 dB 15 dB 100 ± 25.0 Ohm 100 ± 15 Ohm
Voltage
UL Voltage Rating
300 V (CMR)
Mechanical Characteristics
Temperature
UL Rating Operating Installation Storage
60°C -40°C To +80°C -25°C To +60°C -40°C To +80°C

Max. Pull Tension

55 lbs

Bulk Cable Weight

40.7 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Fire Resistance

UL 1685 (FT4 Loading), FT4, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMR

NEMA Compliance

NEMA WC-63.1

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 5e

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

CPR Euroclass

Eca

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

Oil Res II, Oil Res 60811-2-1, Weldsplatter Resistant

Product Notes

Notes

Operating Temperature subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. Limits below 4 MHz are for information only.

History

Update and Revision

Revision Number: 0.426 Revision Date: 09-17-2021

Part Numbers
Item # Color Putup Type Length UPC
7933A 0101000 Black Reel 1,000 ft 612825191643
7933A 1NH1000 Teal Reel 1,000 ft 612825191667
