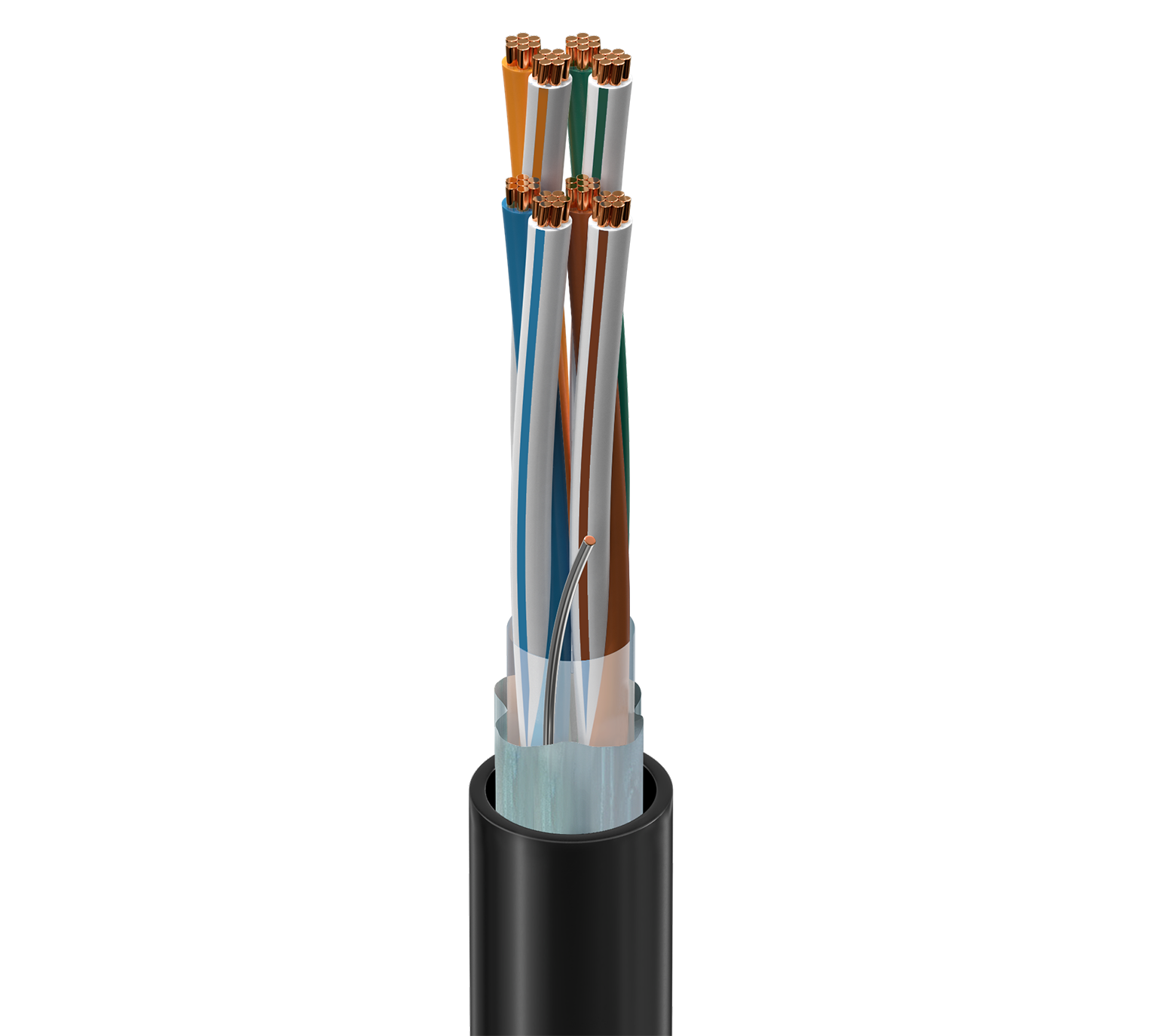

7939A

DataTuff® Cat 5e, 4 Bonded-Pr #24 Str BC, PO Ins, OS, PVC Jkt, CMX-Outdoor CMR

...
Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (7x32) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMX-Outdoor CMR
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
24 7x32 BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Outer Shield
Type Material Coverage Drainwire Type
Tape Polyester + Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Jacket
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.295 in No
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. Capacitance Unbalance Nom. Mutual Capacitance
93.8 Ohm/km 3% 330 pF/ft 15 pF/ft
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%] Typical Delay Skew
510 ns/100m 45 ns/100m 69% 12 ns/ft
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.5 dB/100m 65.3 dB 62.3 dB 62.8 dB 59.8 dB 63.8 dB 60.8 dB 20 dB 23 dB 100 ± 15 Ohm 100 ± 15 Ohm
4 MHz 4.9 dB/100m 56.3 dB 53.3 dB 51.4 dB 48.4 dB 51.7 dB 48.7 dB 23 dB 23 dB 100 ± 15 Ohm 100 ± 15
8 MHz 6.9 dB/100m 51.8 dB 48.8 dB 44.9 dB 41.9 dB 45.7 dB 42.7 dB 24.5 dB 24.5 dB 100 ± 15 Ohm 100 ± 15
10 MHz 7.8 dB/100m 50.3 dB 47.3 dB 42.5 dB 39.5 dB 43.8 dB 40.8 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15
16 MHz 9.9 dB/100m 47.3 dB 44.3 dB 37.4 dB 34.4 dB 39.7 dB 36.7 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15
20 MHz 11.1 dB/100m 45.8 dB 42.8 dB 34.7 dB 31.7 dB 37.7 dB 34.7 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15
25 MHz 12.5 dB/100m 44.3 dB 41.3 dB 21.8 dB 28.8 dB 35.8 dB 32.8 dB 24.3 dB 24.3 dB 100 ± 15 Ohm 100 ± 15
31.25 MHz 14.1 dB/100m 42.9 dB 39.9 dB 28.8 dB 25.8 dB 33.9 dB 30.9 dB 23.6 dB 23.6 dB 100 ± 15 Ohm 100 ± 15
62.5 MHz 20.4 dB/100m 38.4 dB 35.4 dB 18 dB 15 dB 27.8 dB 24.8 dB 21.5 dB 21.5 dB 100 ± 15 Ohm 100 ± 15
100 MHz 26.4 dB/100m 35.3 dB 32.3 dB 8.9 dB 5.9 dB 23.8 dB 20.8 dB 20.1 dB 20.1 dB 100 ± 15 Ohm
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CMX-Outdoor)
Mechanical Characteristics
Temperature
UL Rating Operating Installation
60°C -40°C To +75°C -25°C To +75°C

Max. Pull Tension

40 lbs

Bulk Cable Weight

35 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Fire Resistance

UL1666 Riser, FT4, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR;CMX-Outdoor

CEC / C(UL) Compliance

CMX-Outdoor;CMG

ICEA Compliance

S-90-661-2012

NEMA Compliance

NEMA WC-63.1

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 5e

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-6

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581.

History

Update and Revision

Revision Number: 0.394 Revision Date: 09-17-2021

Part Numbers
Item # Color Putup Type Length UPC
7939A 0101000 Black Reel 1,000 ft 612825191773
7939A 0102000 Black Reel 2,000 ft 612825191780
7939A 0061000 Blue Reel 1,000 ft 612825191759
7939A 0081000 Gray Reel 1,000 ft 612825191766
7939A 0021000 Red Reel 1,000 ft 612825191742
7939A 1NH1000 Teal Reel 1,000 ft 612825191797
