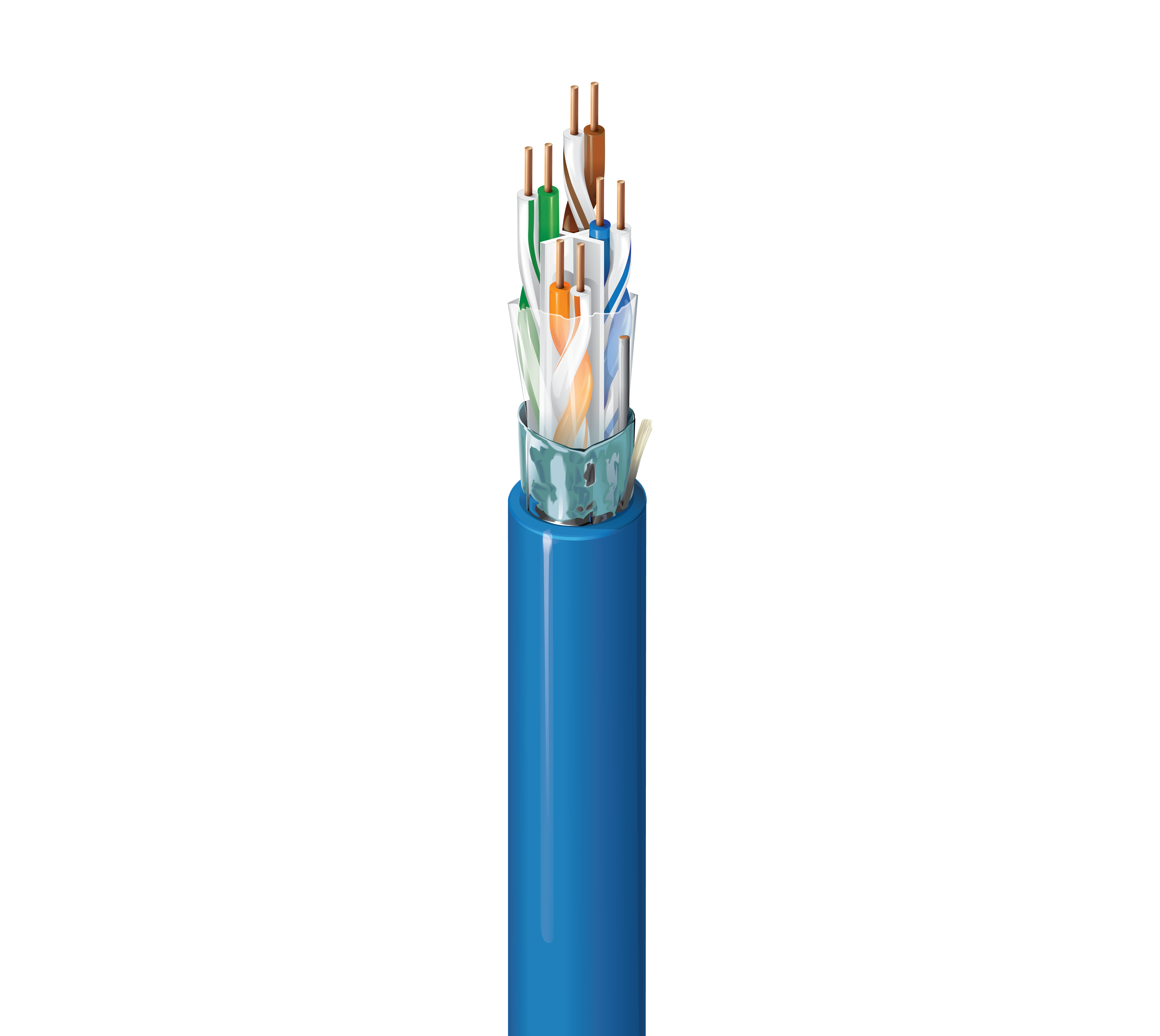

2413F

Category 6+ Enhanced Cable, 4 Pair, F/UTP, CMP

...
Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest® PVC-LS Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE, Noisy Environments

Patent

This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
FEP - Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

No

Outer Shield Material
Type Material Coverage Drainwire Type
Tape Polyester + Bi-Laminate (Alum+Poly) 100% 24 AWG (Solid) TC
Outer Jacket Material
Separator Material Material Material Trade Name Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC - Polyvinyl Chloride Flamarrest® 0.285 in No
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. Capacitance Unbalance Nom. Mutual Capacitance
93.8 Ohm/km 5% 330 pF/100m 14 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 45 ns/100m 72%
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. TCL [dB] Min. ELTCTL [dB]
0.772 MHz 1.8 dB/100m 77.0 dB 77.0 dB 75.2 dB 76.2 dB 73.0 dB 70.0 dB 19.4 dB 100 +/- 15 100 ± 15 Ohm 40.0 dB 37.2 dB
1 MHz 2.0 dB/100m 75.3 dB 75.3 dB 73.3 dB 74.3 dB 70.8 dB 67.8 dB 20.0 dB 100 +/- 15 100 ± 15 Ohm 40.0 dB 35.0 dB
4 MHz 3.7 dB/100m 66.3 dB 66.3 dB 62.6 dB 63.6 dB 58.8 dB 55.8 dB 23.0 dB 100 +/- 15 100 ± 15 Ohm 40.0 dB 23.0 dB
8 MHz 5.2 dB/100m 61.8 dB 61.8 dB 56.6 dB 57.6 dB 52.7 dB 49.7 dB 24.5 dB 100 +/- 15 100 ± 15 Ohm 40.0 dB 16.9 dB
10 MHz 5.8 dB/100m 60.3 dB 60.3 dB 54.5 dB 55.5 dB 50.8 dB 47.8 dB 25.0 dB 100 +/- 15 100 ± 15 Ohm 40.0 dB 15.0 dB
16 MHz 7.4 dB/100m 57.2 dB 57.2 dB 49.9 dB 50.9 dB 46.7 dB 43.7 dB 25.0 dB 100 +/- 15 100 ± 15 Ohm 38.0 dB 10.9 dB
20 MHz 8.3 dB/100m 55.8 dB 55.8 dB 47.5 dB 48.5 dB 44.8 dB 41.8 dB 25.0 dB 100 +/- 15 100 ± 15 Ohm 37.0 dB 9.0 dB
25 MHz 9.3 dB/100m 54.3 dB 54.3 dB 45.1 dB 46.1 dB 42.8 dB 39.8 dB 24.3 dB 100 +/- 15 100 ± 15 Ohm 36.0 dB 7.0 dB
31.25 MHz 10.4 dB/100m 52.9 dB 52.9 dB 42.5 dB 43.5 dB 40.9 dB 37.9 dB 23.6 dB 100 +/- 15 100 ± 15 Ohm 35.1 dB 5.1 dB
62.5 MHz 15.0 dB/100m 48.4 dB 48.4 dB 33.4 dB 34.4 dB 34.9 dB 31.9 dB 21.5 dB 100 +/- 15 100 ± 15 Ohm 32.0 dB
100 MHz 19.3 dB/100m 45.3 dB 45.3 dB 26.0 dB 27.0 dB 30.8 dB 27.8 dB 20.1 dB 100 +/- 15 100 ± 15 Ohm 30.0 dB
155 MHz 24.6 dB/100m 42.4 dB 42.4 dB 17.9 dB 18.9 dB 27.0 dB 24.0 dB 19.5 dB 100 +/- 22 100 ± 15 Ohm 28.1 dB
200 MHz 28.3 dB/100m 40.8 dB 40.8 dB 12.5 dB 13.5 dB 24.8 dB 21.8 dB 18.7 dB 100 +/- 22 100 ± 15 Ohm 27.0 dB
250 MHz 32.1 dB/100m 39.3 dB 39.3 dB 7.2 dB 8.2 dB 22.8 dB 19.8 dB 18.0 dB 100 +/- 32 100 ± 15 Ohm 26.0 dB
300 MHz 35.6 dB/100m 38.1 dB 36.1 dB 2.5 dB 1.5 dB 21.3 dB 18.3 dB 17.5 dB 100 +/- 32 100 ± 15 Ohm 25.2 dB
350 MHz 38.9 dB/100m 37.1 dB 35.1 dB 19.9 dB 16.9 dB 17.0 dB 100 +/- 32 100 ± 15 Ohm 24.6 dB
400 MHz 42.0 dB/100m 36.3 dB 34.3 dB 18.8 dB 15.8 dB 16.6 dB 100 +/- 32 100 ± 15 Ohm 24.0 dB
450 MHz 45.0 dB/100m 35.5 dB 33.5 dB 17.7 dB 14.7 dB 16.2 dB 100 +/- 32 100 ± 15 Ohm 23.5 dB
500 MHz 47.9 dB/100m 34.8 dB 32.8 dB 16.8 dB 13.8 dB 15.9 dB 100 +/- 32 23.0 dB
550 MHz 50.6 dB/100m 34.2 dB 32.2 dB 16.0 dB 13.0 dB 15.6 dB 100 +/- 32 22.6 dB
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Rating. Operating Installation Storage
75°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.0 in 2.25 in

Max. Pull Tension

25 lbs

Bulk Cable Weight

44 lbs/1000ft

Standards and Compliance

Environmental Suitability

Plenum, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Fire Resistance

NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

2412F

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 300 MHz are for Engineering Information Only. Shield is Bonded to Jacket Inner Wall for Electrical Stability. Print Includes Descending Footage Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.442 Revision Date: 02-16-2021

Part Numbers
Item # Color Putup Type Length UPC
2413F 0101000 Black Reel 1,000 ft 612825131601
2413F D15A500 Blue Reel-in-Box 500 ft 612825131519
2413F D151000 Blue Reel 1,000 ft 612825131526
2413F 0081000 Gray Reel 1,000 ft 612825131571
2413F 0051000 Green Reel 1,000 ft 612825131564
2413F 0031000 Orange Reel 1,000 ft 612825131540
2413F 0021000 Red Reel 1,000 ft 612825131533
2413F 009A500 White Reel-in-Box 500 ft 612825131588
2413F 0091000 White Reel 1,000 ft 612825131595
2413F 0041000 Yellow Reel 1,000 ft 612825131557
