3612

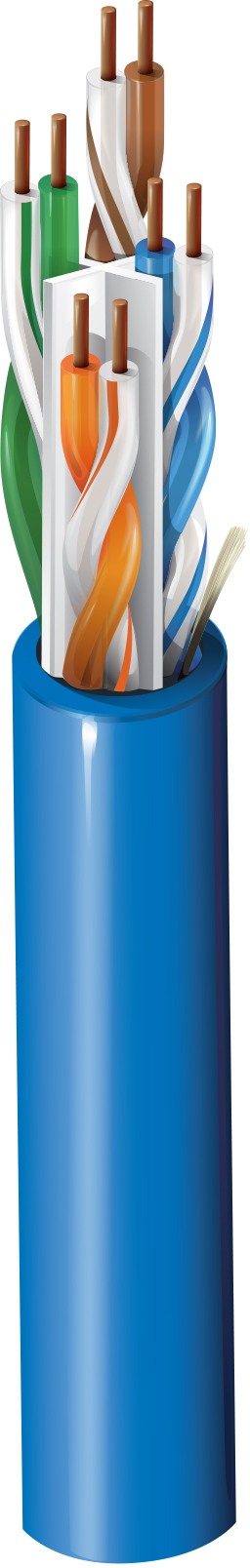

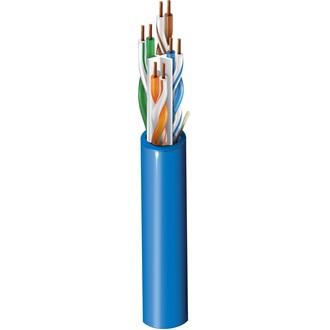

Category 6+ Premium Cable, 4 Pair, U/UTP, CMR

...
Category 6+ Premium Premise Horizontal Cable (400MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Patent

This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

No

Outer Jacket Material
Separator Material Material Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC - Polyvinyl Chloride 0.231 in Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. Capacitance Unbalance Nom. Mutual Capacitance
77 Ohm/km 3% 330 pF/100m 15.5 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%] Typical Delay Skew
100 MHz 537.6 ns/100m 35 ns/100m 70% 35 ns/100m
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted)
1 MHz 2.0 dB/100m 84.3 dB 82.3 dB 80.3 dB 80.3 dB 76.8 dB 73.8 dB 20.0 dB 100 ± 15
4 MHz 3.7 dB/100m 75.3 dB 73.3 dB 69.5 dB 69.5 dB 64.8 dB 61.8 dB 23.6 dB 100 ± 15
8 MHz 5.3 dB/100m 70.8 dB 68.8 dB 63.5 dB 63.5 dB 58.7 dB 55.7 dB 25.3 dB 100 ± 15
10 MHz 5.9 dB/100m 69.3 dB 67.3 dB 61.4 dB 61.4 dB 56.8 dB 53.8 dB 26.0 dB 100 ± 15
16 MHz 7.4 dB/100m 66.2 dB 64.2 dB 56.8 dB 56.8 dB 52.7 dB 49.7 dB 26.0 dB 100 ± 15
20 MHz 8.3 dB/100m 64.8 dB 62.8 dB 54.4 dB 54.4 dB 50.8 dB 47.8 dB 26.0 dB 100 ± 15
25 MHz 9.4 dB/100m 63.3 dB 61.3 dB 52.0 dB 52.0 dB 48.8 dB 45.8 dB 25.5 dB 100 ± 15
31.25 MHz 10.5 dB/100m 61.9 dB 59.9 dB 49.4 dB 49.4 dB 46.9 dB 43.9 dB 25.0 dB 100 ± 15
62.5 MHz 15.1 dB/100m 57.4 dB 55.4 dB 40.3 dB 40.3 dB 40.9 dB 37.9 dB 23.5 dB 100 ± 15
100 MHz 19.3 dB/100m 54.3 dB 52.3 dB 33.0 dB 33.0 dB 36.8 dB 33.8 dB 22.5 dB 100 ± 15
155 MHz 24.5 dB/100m 51.4 dB 49.4 dB 24.9 dB 24.9 dB 33.0 dB 30.0 dB 21.6 dB 100 ± 22
200 MHz 28.2 dB/100m 49.8 dB 47.8 dB 19.6 dB 19.6 dB 30.8 dB 27.8 dB 21.0 dB 100 ± 22
250 MHz 31.8 dB/100m 48.3 dB 46.3 dB 14.5 dB 14.5 dB 28.8 dB 25.8 dB 20.5 dB 100 ± 32
300 MHz 35.2 dB/100m 47.1 dB 45.1 dB 9.9 dB 9.9 dB 27.3 dB 24.3 dB 20.1 dB 100 ± 32
350 MHz 38.4 dB/100m 46.1 dB 44.1 dB 5.7 dB 5.7 dB 25.9 dB 22.9 dB 19.8 dB 100 ± 32
400 MHz 41.5 dB/100m 45.3 dB 43.3 dB 1.8 dB 1.8 dB 24.8 dB 21.8 dB 19.5 dB 100 ± 32
450 MHz 44.3 dB/100m 44.5 dB 42.5 dB 23.7 dB 20.7 dB 19.2 dB 100 ± 32
500 MHz 47.1 dB/100m 43.8 dB 41.8 dB 22.8 dB 19.8 dB 19.0 dB 100 ± 32
550 MHz 49.7 dB/100m 43.2 dB 41.2 dB 22.0 dB 19.0 dB 18.8 dB 100 ± 32
600 MHz 52.3 dB/100m 42.6 dB 40.6 dB 21.2 dB 18.2 dB 18.7 dB 100 ± 32
650 MHz 54.8 dB/100m 42.1 dB 40.1 dB 20.5 dB 17.5 dB 18.5 dB 100 ± 32
Voltage
UL Voltage Rating
300 V (CMR)
Mechanical Characteristics
Temperature
UL Rating. Operating Installation Storage
75°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.0 in 2.5 in

Max. Pull Tension

25 lbs

Bulk Cable Weight

25 lbs/1000ft

Standards and Compliance

Environmental Suitability

Riser, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Fire Resistance

UL 1666 Riser, FT4, FT4, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMR

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

Cenelec Compliance

Segregation class according EN50174-2=a

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

3613

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 400 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.433 Revision Date: 02-16-2021

Part Numbers
Item # Color Putup Type Length UPC
3612 0101000 Black Reel 1,000 ft 612825145707
3612 010A1000 Black Reel-in-Box 1,000 ft 612825145684
3612 010U1000 Black UnReel 1,000 ft 612825145691
3612 0061000 Blue Reel 1,000 ft 612825145585
3612 006A1000 Blue Reel-in-Box 1,000 ft 612825145561
3612 006U1000 Blue UnReel 1,000 ft 612825145578
3612 0062500 Blue Reel 2,500 ft 612825145592
3612 0081000 Gray Reel 1,000 ft 612825145639
3612 008A1000 Gray Reel-in-Box 1,000 ft 612825335061
3612 008U1000 Gray UnReel 1,000 ft 612825145622
3612 0051000 Green Reel 1,000 ft 612825145554
3612 005A1000 Green Reel-in-Box 1,000 ft 612825145530
3612 005U1000 Green UnReel 1,000 ft 612825145547
3612 003A1000 Orange Reel-in-Box 1,000 ft 612825145479
3612 003U1000 Orange UnReel 1,000 ft 612825145486
3612 007A1000 Purple Reel-in-Box 1,000 ft 612825145608
3612 007U1000 Purple UnReel 1,000 ft 612825145615
3612 0091000 White Reel 1,000 ft 612825145660
3612 009A1000 White Reel-in-Box 1,000 ft 612825145646
3612 009U1000 White UnReel 1,000 ft 612825145653
3612 0092500 White Reel 2,500 ft 612825145677
3612 0041000 Yellow Reel 1,000 ft 612825145516
3612 004A1000 Yellow Reel-in-Box 1,000 ft 612825145493
3612 004U1000 Yellow UnReel 1,000 ft 612825145509
3612 0042500 Yellow Reel 2,500 ft 612825145523
