3632

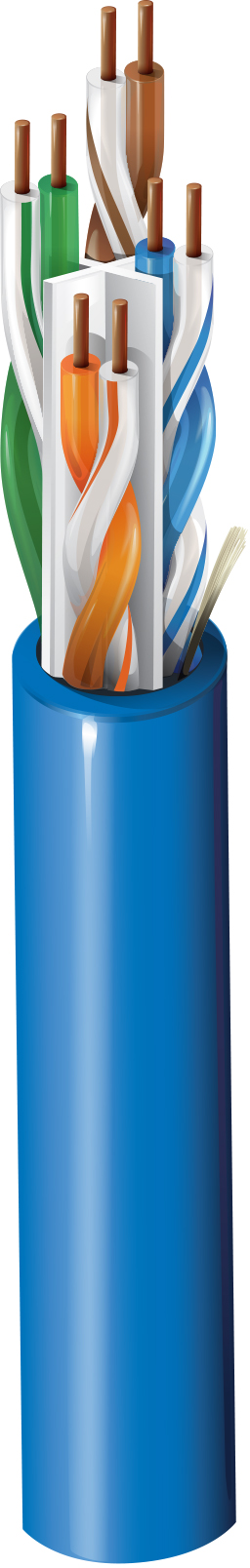

Category 6+ Premium Cable, 4 Bonded-Pairs, U/UTP, CMR

...
Category 6+ Premium Premise Horizontal Cable (400MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket
English Metric
Request Quote
Share

Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Patent

This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Outer Jacket Material
Separator Material Material Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC - Polyvinyl Chloride 0.234 in Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. Capacitance Unbalance Nom. Mutual Capacitance
77 Ohm/km 3% 90 pF/100m 15.5 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%] Typical Delay Skew
100 MHz 537.6 ns/100m 35 ns/100m 70% 30 ns/100m
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.0 dB/100m 84.3 dB 82.3 dB 80.3 dB 80.3 dB 76.8 dB 73.8 dB 20.0 dB 100 ± 15
4 MHz 3.7 dB/100m 75.3 dB 73.3 dB 69.5 dB 69.5 dB 64.8 dB 61.8 dB 23.6 dB 100 ± 15 100 ± 12 Ohm
8 MHz 5.3 dB/100m 70.8 dB 68.8 dB 63.5 dB 63.5 dB 58.7 dB 55.7 dB 25.3 dB 100 ± 15 100 ± 10.4 Ohm
10 MHz 5.9 dB/100m 69.3 dB 67.3 dB 61.4 dB 61.4 dB 56.8 dB 53.8 dB 26.0 dB 100 ± 15 100 ± 8 Ohm
16 MHz 7.4 dB/100m 66.2 dB 64.2 dB 56.8 dB 56.8 dB 52.7 dB 49.7 dB 26.0 dB 100 ± 15 100 ± 7.3 Ohm
20 MHz 8.3 dB/100m 64.8 dB 62.8 dB 54.4 dB 54.4 dB 50.8 dB 47.8 dB 26.0 dB 100 ± 15 100 ± 5.7 Ohm
25 MHz 9.4 dB/100m 63.3 dB 61.3 dB 52.0 dB 52.0 dB 48.8 dB 45.8 dB 25.5 dB 100 ± 15 100 ± 5 Ohm
31.25 MHz 10.5 dB/100m 61.9 dB 59.9 dB 49.4 dB 49.4 dB 46.9 dB 43.9 dB 25.0 dB 100 ± 15 100 ± 5 Ohm
62.5 MHz 15.1 dB/100m 57.4 dB 55.4 dB 40.3 dB 40.3 dB 40.9 dB 37.9 dB 23.5 dB 100 ± 15 100 ± 5 Ohm
100 MHz 19.3 dB/100m 54.3 dB 52.3 dB 33.0 dB 33.0 dB 36.8 dB 33.8 dB 22.5 dB 100 ± 15 100 ± 5 Ohm
155 MHz 24.5 dB/100m 51.4 dB 49.4 dB 24.9 dB 24.9 dB 33.0 dB 30.0 dB 21.6 dB 100 ± 22 100 ± 5 Ohm
200 MHz 28.2 dB/100m 49.8 dB 47.8 dB 19.6 dB 19.6 dB 30.8 dB 27.8 dB 21.0 dB 100 ± 22 100 ± 5 Ohm
250 MHz 31.8 dB/100m 48.3 dB 46.3 dB 14.5 dB 14.5 dB 28.8 dB 25.8 dB 20.5 dB 100 ± 32 100 ± 5 Ohm
300 MHz 35.2 dB/100m 47.1 dB 45.1 dB 9.9 dB 9.9 dB 27.3 dB 24.3 dB 20.1 dB 100 ± 32 100 ± 5 Ohm
350 MHz 38.4 dB/100m 46.1 dB 44.1 dB 5.7 dB 5.7 dB 25.9 dB 22.9 dB 19.8 dB 100 ± 32 100 ± 5 Ohm
400 MHz 41.5 dB/100m 45.3 dB 43.3 dB 1.8 dB 1.8 dB 24.8 dB 21.8 dB 19.5 dB 100 ± 32 100 ± 5 Ohm
450 MHz 44.3 dB/100m 44.5 dB 42.5 dB 23.7 dB 20.7 dB 19.2 dB 100 ± 32 100 ± 5 Ohm
500 MHz 47.1 dB/100m 43.8 dB 41.8 dB 22.8 dB 19.8 dB 19.0 dB 100 ± 32 100 ± 5 Ohm
550 MHz 49.7 dB/100m 43.2 dB 41.2 dB 22.0 dB 19.0 dB 18.8 dB 100 ± 32 100 ± 5 Ohm
600 MHz 52.3 dB/100m 42.6 dB 40.6 dB 21.2 dB 18.2 dB 18.7 dB 100 ± 32 100 ± 5 Ohm
650 MHz 54.8 dB/100m 42.1 dB 40.1 dB 20.5 dB 17.5 dB 18.5 dB 100 ± 32 100 ± 5 Ohm
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CL3R)
Mechanical Characteristics
Temperature
UL Rating. Operating Installation Storage
90°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
0.5 in 2.5 in

Max. Pull Tension

40 lbs

Bulk Cable Weight

26 lbs/1000ft

Standards and Compliance

Environmental Suitability

Riser, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Fire Resistance

UL 1666 Riser, FT4, FT4, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR;CMR-LP (0.5A);CL3R-LP (0.5A)

CEC / C(UL) Compliance

CMR

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

CENELEC Compliance

Segregation class according EN50174-2=a

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

3633

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 400 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.419 Revision Date: 02-16-2021

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
3632 0101000 Black Reel 1,000 ft 612825146230
3632 010A1000 Black Reel-in-Box 1,000 ft 612825146223
3632 0061000 Blue Reel 1,000 ft 612825146155
3632 006A1000 Blue Reel-in-Box 1,000 ft 612825146131
3632 006U1000 Blue UnReel 1,000 ft 612825146148
3632 0081000 Gray Reel 1,000 ft 612825146186
3632 008A1000 Gray Reel-in-Box 1,000 ft 612825146162
3632 008U1000 Gray UnReel 1,000 ft 612825146179
3632 0051000 Green Reel 1,000 ft 612825146124
3632 005A1000 Green Reel-in-Box 1,000 ft 612825146117
3632 003A1000 Orange Reel-in-Box 1,000 ft 612825146087
3632 0091000 White Reel 1,000 ft 612825146216
3632 009A1000 White Reel-in-Box 1,000 ft 612825146193
3632 009U1000 White UnReel 1,000 ft 612825146209
3632 0041000 Yellow Reel 1,000 ft 612825146100
3632 004A1000 Yellow Reel-in-Box 1,000 ft 612825146094
