10GX52F

10GX Category 6A Enhanced Cable, 4 Pairs, F/UTP, CMR

...

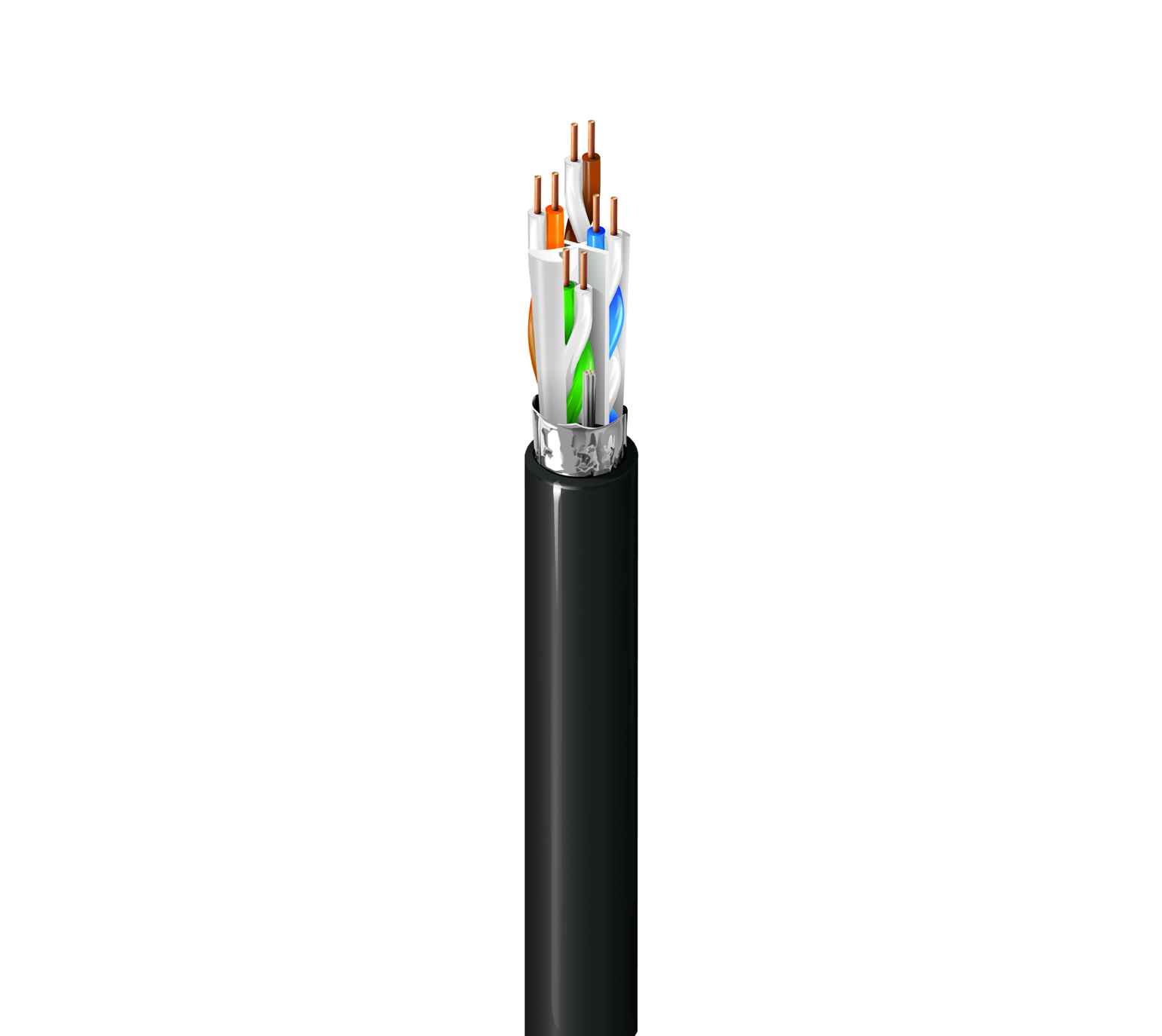

10GX Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket
English Metric
Request Quote
Share

Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, Noisy Environments

Patent

This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White & Blue, White & Orange, White & Green, White & Brown

Bonded-Pair

No

Outer Shield Material
Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 26 AWG (7x34) TC
Outer Jacket Material
Separator Material Material Nom. Diameter Ripcord
Center Member (Patented EquiSpline®) PVC - Polyvinyl Chloride 0.275 in Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. DCR Unbalanced Between Pairs [%] Max. Capacitance Unbalance Nom. Mutual Capacitance
82 Ohm/km 4.0% 5.0% 90 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 45 ns/100m 64%
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. PSACR [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 73.3 dB 71.2 dB 68.8 dB 20.0 dB 100 ± 15 Ohm 105 ± 10 Ohm 77.0 dB 77.0 dB 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 64.3 dB 60.5 dB 56.8 dB 23.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 76.2 dB 40.0 dB 23.0 dB
8 MHz 5.3 dB/100m 59.8 dB 54.4 dB 50.7 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 70.1 dB 40.0 dB 16.9 dB
10 MHz 5.9 dB/100m 58.3 dB 52.4 dB 48.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 68.2 dB 40.0 dB 15.0 dB
16 MHz 7.5 dB/100m 55.2 dB 47.8 dB 44.7 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 64.1 dB 38.0 dB 10.9 dB
20 MHz 8.4 dB/100m 53.8 dB 45.4 dB 42.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 62.2 dB 37.0 dB 9.0 dB
25 MHz 9.4 dB/100m 52.3 dB 43.0 dB 40.8 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 60.2 dB 36.0 dB 7.0 dB
31.25 MHz 10.5 dB/100m 50.9 dB 40.4 dB 38.9 dB 23.6 dB 100 ± 15 Ohm 100 ± 10 Ohm 77.0 dB 58.3 dB 35.1 dB
62.5 MHz 15.0 dB/100m 46.4 dB 31.4 dB 32.9 dB 21.5 dB 100 ± 15 Ohm 100 ± 10 Ohm 77.0 dB 52.3 dB 32.0 dB
100 MHz 19.1 dB/100m 43.3 dB 24.2 dB 28.8 dB 20.1 dB 100 ± 15 Ohm 100 ± 10 Ohm 72.5 dB 48.2 dB 30.0 dB
200 MHz 27.6 dB/100m 38.8 dB 11.2 dB 22.8 dB 18.0 dB 100 ± 22 Ohm 100 ± 10 Ohm 68.5 dB 42.2 dB 27.0 dB
250 MHz 31.1 dB/100m 37.3 dB 6.3 dB 20.8 dB 17.3 dB 100 ± 32 Ohm 100 ± 10 Ohm 66.5 dB 40.2 dB 26.0 dB
300 MHz 34.3 dB/100m 36.1 dB 1.9 dB 19.3 dB 16.8 dB 100 ± 32 Ohm 100 ± 10 Ohm 65.3 dB 38.7 dB 25.2 dB
350 MHz 37.2 dB/100m 35.1 dB 17.9 dB 16.3 dB 100 ± 32 Ohm 100 ± 10 Ohm 64.3 dB 37.3 dB 24.6 dB
400 MHz 40.1 dB/100m 34.3 dB 16.8 dB 15.9 dB 100 ± 32 Ohm 100 ± 10 Ohm 63.5 dB 36.2 dB 24.0 dB
450 MHz 42.7 dB/100m 33.5 dB 15.7 dB 15.5 dB 100 ± 32 Ohm 100 ± 10 Ohm 62.7 dB 35.1 dB 23.5 dB
500 MHz 45.3 dB/100m 32.8 dB 14.8 dB 15.2 dB 100 ± 32 Ohm 100 ± 10 Ohm 62.0 dB 34.2 dB 23.0 dB
550 MHz 47.7 dB/100m 32.2 dB 14.0 dB 14.9 dB 100 ± 32 Ohm 100 ± 10 Ohm 62.4 dB 34.4 dB
600 MHz 50.1 dB/100m 31.6 dB 13.2 dB 14.7 dB 100 ± 32 Ohm 100 ± 10 Ohm 61.8 dB 33.6 dB
625 MHz 51.2 dB/100m 31.4 dB 12.9 dB 14.5 dB 100 ± 32 Ohm 100 ± 10 Ohm 61.6 dB 33.3 dB
750 MHz 56.7 dB/100m 30.2 dB 11.3 dB 14.0 dB 100 ± 32 Ohm 100 ± 10 Ohm 60.4 dB 31.7 dB
860 MHz 61.2 dB/100m 29.3 dB 10.1 dB 13.6 dB 100 ± 32 Ohm 100 ± 10 Ohm 59.5 dB 30.5 dB
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CL3R)
Mechanical Characteristics
Temperature
UL Rating. Operating Installation Storage
90°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
2.25 in 2.75 in

Max. Pull Tension

25 lbs

Bulk Cable Weight

41 lbs/1000ft

Standards and Compliance

Environmental Suitability

Riser, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Fire Resistance

UL 1666 Riser, FT4, FT4, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR;CMR-LP (0.6A);CL3R-LP (0.6A)

CEC / C(UL) Compliance

CMR

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6A

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

Verified Channel/Category 6A

Plenum Number

10GX53F

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.317 Revision Date: 02-16-2021

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
10GX52F 0101000 Black 612825003939
10GX52F 0061000 Blue 612825003908
10GX52F 0081000 Gray 612825003915
10GX52F 0021000 Red 612825003885
10GX52F 0091000 White 612825003922
10GX52F 0041000 Yellow 612825003892
