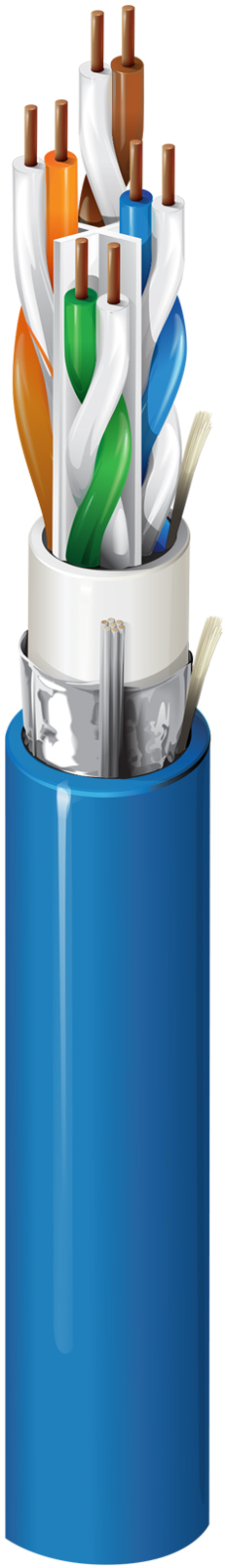

10GX62F

10GX Category 6A Enhanced Cable, 4 Bonded-Pairs, F/UTP, CMR

...
10GX Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, Noisy Environments

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Construction Details
Conductor
Size Stranding Material Number of Pairs
23 AWG Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Inner Jacket
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.26 in (6.6 mm) Yes
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 26 AWG (7x34) TC
Outer Jacket
Separator Material Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC - Polyvinyl Chloride 0.300 in (7.62 mm) Yes

Overall Cable Diameter (Nominal)

0.300 in (7.62 mm)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Capacitance Unbalance
82 Ohm/km 90 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 64%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT [dB] Min. PSAACRF [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.1 dB/100m 73.3 71.2 70.8 68.8 20.0 100 ± 15 Ohm 105 ± 10 Ohm 77.0 77.0 40.0 35.0
4 3.8 dB/100m 64.3 60.5 58.8 56.8 23.0 100 ± 15 Ohm 100 ± 15 Ohm 77.0 76.2 40.0 23.0
8 5.3 dB/100m 59.8 54.4 52.7 50.7 24.5 100 ± 15 Ohm 100 ± 15 Ohm 77.0 70.1 40.0 16.9
10 5.9 dB/100m 58.3 52.4 50.8 48.8 25.0 100 ± 15 Ohm 100 ± 15 Ohm 77.0 68.2 40.0 15.0
16 7.5 dB/100m 55.2 47.8 46.7 44.7 25.0 100 ± 15 Ohm 100 ± 15 Ohm 77.0 64.1 38.0 10.9
20 8.4 dB/100m 53.8 45.4 44.8 42.8 25.0 100 ± 15 Ohm 100 ± 15 Ohm 77.0 62.2 37.0 9.0
25 9.4 dB/100m 52.3 43.0 42.8 40.8 25.0 100 ± 15 Ohm 100 ± 15 Ohm 77.0 60.2 36.0 7.0
31.25 10.5 dB/100m 50.9 40.4 40.9 38.9 25.0 100 ± 15 Ohm 100 ± 10 Ohm 77.0 58.3 35.1
62.5 15.0 dB/100m 46.4 31.4 34.9 32.9 25.0 100 ± 15 Ohm 100 ± 10 Ohm 77.0 52.3 32.0
100 19.1 dB/100m 43.3 24.2 30.8 28.8 25.0 100 ± 15 Ohm 100 ± 10 Ohm 72.5 48.2 30.0
200 27.6 dB/100m 38.8 11.2 24.8 22.8 18.0 100 ± 22 Ohm 100 ± 10 Ohm 68.5 42.2 27.0
250 31.1 dB/100m 37.3 6.3 22.8 20.8 17.3 100 ± 32 Ohm 100 ± 10 Ohm 66.5 40.2 26.0
300 34.3 dB/100m 36.1 1.9 21.3 19.3 16.8 100 ± 32 Ohm 100 ± 10 Ohm 65.3 38.7 25.2
350 37.2 dB/100m 35.1 -2.1 19.9 17.9 16.3 100 ± 32 Ohm 100 ± 10 Ohm 64.3 37.3 24.6
400 40.1 dB/100m 34.3 18.8 16.8 15.9 100 ± 32 Ohm 100 ± 10 Ohm 63.5 36.2 24.0
450 42.7 dB/100m 33.5 17.7 15.7 15.5 100 ± 32 Ohm 100 ± 10 Ohm 62.7 35.1 23.5
500 45.3 dB/100m 32.8 16.8 14.8 15.2 100 ± 32 Ohm 100 ± 10 Ohm 62.0 34.2 23.0
550 47.7 dB/100m 32.2 14.9 14.0 14.9 100 ± 32 Ohm 100 ± 10 Ohm 62.4 34.4
600 50.1 dB/100m 31.6 13.2 14.7 100 ± 32 Ohm 100 ± 10 Ohm 61.8 33.6
625 51.2 dB/100m 31.4 12.9 14.5 100 ± 32 Ohm 100 ± 10 Ohm 61.6 33.3
750 56.7 dB/100m 30.2 11.3 14.0 100 ± 32 Ohm 100 ± 10 Ohm 60.4 31.7
860 61.2 dB/100m 29.3 10.1 13.6 100 ± 32 Ohm 100 ± 10 Ohm 59.5 30.5
Voltage
UL Voltage Rating
300 V (CMR)
Mechanical Characteristics
Temperature
UL Temperature Operating Installation Storage
75°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.2 in (30 mm) 3.0 in (76 mm)

Max. Pull Tension

40 lbs (18 kg)

Bulk Cable Weight

39 lbs/1000ft

Standards and Compliance

Environmental Suitability

Riser, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Reaction to Fire

UL 1666 Riser, FT4, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMR

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6A

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

Verified Channel/Category 6A

Plenum Number

10GX63F

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.444 Revision Date: 12-15-2021

Part Numbers
Item # Color Putup Type Length UPC
10GX62F 0101000 Black Reel 1,000 ft 612825102465
10GX62F 0061000 Blue Reel 1,000 ft 612825102434
10GX62F 0081000 Gray Reel 1,000 ft 612825102441
10GX62F 0021000 Red Reel 1,000 ft 612825102410
10GX62F 0091000 White Reel 1,000 ft 612825102458
10GX62F 0041000 Yellow Reel 1,000 ft 612825102427
