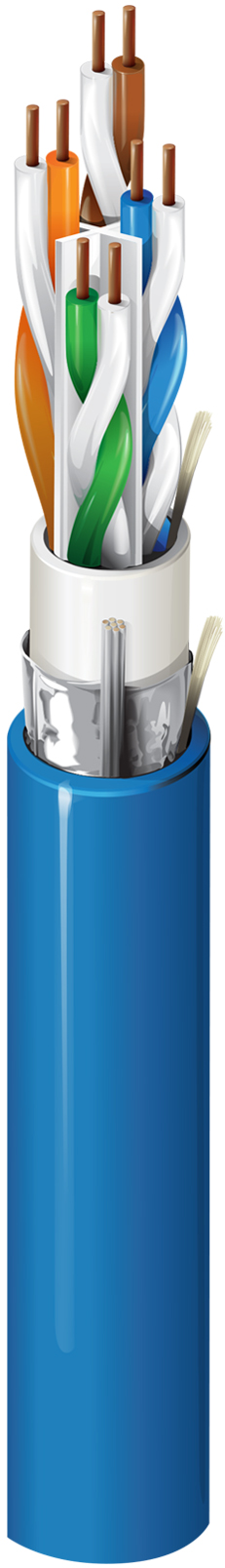

10GX63F

10GX Category 6A Enhanced Cable, 4 Bonded-Pairs, F/UTP, CMP

...
10GX Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest® PVC-LS Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, Noisy Environments

Patent

This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
FEP - Fluorinated Ethylene Propylene White & Blue, White & Orange, White & Green, White & Brown

Bonded-Pair

Yes

Inner Jacket Material
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.26 in Yes
Outer Shield Material
Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 26 AWG (7x34) TC
Outer Jacket Material
Separator Material Material Material Trade Name Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC - Polyvinyl Chloride Flamarrest® 0.310 in Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. DCR Unbalanced Between Pairs [%] Max. Capacitance Unbalance Nom. Mutual Capacitance
82 Ohm/km 3% 5% 90 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 45 ns/100m 64%
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 73.3 dB 71.2 dB 70.8 dB 68.8 dB 20.0 dB 100 ± 15 Ohm 105 ± 10 Ohm 77.0 dB 77.0 dB 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 64.3 dB 60.5 dB 58.8 dB 56.8 dB 23.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 76.2 dB 40.0 dB 23.0 dB
8 MHz 5.3 dB/100m 59.8 dB 54.4 dB 52.7 dB 50.7 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 70.1 dB 40.0 dB 16.9 dB
10 MHz 5.9 dB/100m 58.3 dB 52.4 dB 50.8 dB 48.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 68.2 dB 40.0 dB 15.0 dB
16 MHz 7.5 dB/100m 55.2 dB 47.8 dB 46.7 dB 44.7 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 64.1 dB 38.0 dB 10.9 dB
20 MHz 8.4 dB/100m 53.8 dB 45.4 dB 44.8 dB 42.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 62.2 dB 37.0 dB 9.0 dB
25 MHz 9.4 dB/100m 52.3 dB 43.0 dB 42.8 dB 40.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 77.0 dB 60.2 dB 36.0 dB 7.0 dB
31.25 MHz 10.5 dB/100m 50.9 dB 40.4 dB 40.9 dB 38.9 dB 25.0 dB 100 ± 15 Ohm 100 ± 10 Ohm 77.0 dB 58.3 dB 35.1 dB
62.5 MHz 15.0 dB/100m 46.4 dB 31.4 dB 34.9 dB 32.9 dB 25.0 dB 100 ± 15 Ohm 100 ± 10 Ohm 77.0 dB 52.3 dB 32.0 dB
100 MHz 19.1 dB/100m 43.3 dB 24.2 dB 30.8 dB 28.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 10 Ohm 72.5 dB 48.2 dB 30.0 dB
200 MHz 27.6 dB/100m 38.8 dB 11.2 dB 24.8 dB 22.8 dB 18.0 dB 100 ± 22 Ohm 100 ± 10 Ohm 68.5 dB 42.2 dB 27.0 dB
250 MHz 31.1 dB/100m 37.3 dB 6.3 dB 22.8 dB 20.8 dB 17.3 dB 100 ± 32 Ohm 100 ± 10 Ohm 66.5 dB 40.2 dB 26.0 dB
300 MHz 34.3 dB/100m 36.1 dB 1.9 dB 21.3 dB 19.3 dB 16.8 dB 100 ± 32 Ohm 100 ± 10 Ohm 65.3 dB 38.7 dB 25.2 dB
350 MHz 37.2 dB/100m 35.1 dB -2.1 dB 19.9 dB 17.9 dB 16.3 dB 100 ± 32 Ohm 100 ± 10 Ohm 64.3 dB 37.3 dB 24.6 dB
400 MHz 40.1 dB/100m 34.3 dB 18.8 dB 16.8 dB 15.9 dB 100 ± 32 Ohm 100 ± 10 Ohm 63.5 dB 36.2 dB 24.0 dB
450 MHz 42.7 dB/100m 33.5 dB 17.7 dB 15.7 dB 15.5 dB 100 ± 32 Ohm 100 ± 10 Ohm 62.7 dB 35.1 dB 23.5 dB
500 MHz 45.3 dB/100m 32.8 dB 16.8 dB 14.8 dB 15.2 dB 100 ± 32 Ohm 100 ± 10 Ohm 62.0 dB 34.2 dB 23.0 dB
550 MHz 47.7 dB/100m 32.2 dB 14.9 dB 14.0 dB 14.9 dB 100 ± 32 Ohm 100 ± 10 Ohm 62.4 dB 34.4 dB
600 MHz 50.1 dB/100m 31.6 dB 13.2 dB 14.7 dB 100 ± 32 Ohm 100 ± 10 Ohm 61.8 dB 33.6 dB
625 MHz 51.2 dB/100m 31.4 dB 12.9 dB 14.5 dB 100 ± 32 Ohm 100 ± 10 Ohm 61.6 dB 33.3 dB
750 MHz 56.7 dB/100m 30.2 dB 11.3 dB 14.0 dB 100 ± 32 Ohm 100 ± 10 Ohm 60.4 dB 31.7 dB
860 MHz 61.2 dB/100m 29.3 dB 10.1 dB 13.6 dB 100 ± 32 Ohm 100 ± 10 Ohm 59.5 dB 30.5 dB
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Rating. Operating Installation Storage
75°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.2 in 3.0 in

Max. Pull Tension

40 lbs

Bulk Cable Weight

48 lbs/1000ft

Standards and Compliance

Environmental Suitability

Plenum, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Fire Resistance

NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6A

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

Verified Channel/Category 6A

Non-Plenum Number

10GX62F

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.437 Revision Date: 02-16-2021

Part Numbers
Item # Color Putup Type Length UPC
10GX63F 0101000 Black Reel 1,000 ft 612825102526
10GX63F D151000 Blue Reel 1,000 ft 612825102472
10GX63F 0081000 Gray Reel 1,000 ft 612825102502
4813 0051000 Green Reel 1,000 ft 612825153610
10GX63F 0021000 Red Reel 1,000 ft 612825102489
10GX63F 0091000 White Reel 1,000 ft 612825102519
10GX63F 0041000 Yellow Reel 1,000 ft 612825102496
4813 0041000 Yellow Reel 1,000 ft 612825153603
