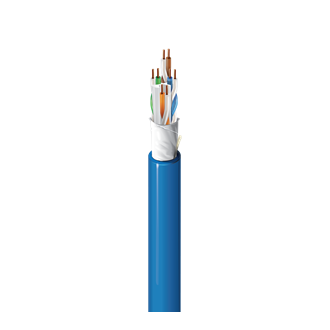

10GXS Category 6A Enhanced Cable, 4 Pair, U/UTP, CMP
|
Suitable Applications |
Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, Data Center EoR and MoR, Network Backbone, HDBaseT, HDBaseT 4K UHD |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>. |
| AWG | Stranding | Material | Number of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
| Material | Color Code |
|---|---|
| FEP - Fluorinated Ethylene Propylene | White & Blue, White & Orange, White & Green, White & Brown |
|
Bonded-Pair |
No |
|---|
| Separator Material | Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Center Member (Patented EquiSpline®), EquiBlock™ Barrier Technology | PVC - Polyvinyl Chloride | Flamarrest® | 0.265 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance | Max. DCR Unbalanced Between Pairs [%] | Max. Capacitance Unbalance | Nom. Mutual Capacitance |
|---|---|---|---|---|
| 82 Ohm/km | 3% | 5% | 45 pF/100m | 17 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nom. Velocity of Propagation (VP) [%] | Typical Delay Skew |
|---|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 69% | 30 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. PSNEXT [dB] | Min. PSACR [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance | Min. PSANEXT | Min. PSAACRF | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2.1 dB/100m | 75.3 dB | 73.2 dB | 74.8 dB | 20.0 dB | 100 ± 15 Ohm | 105 ± 10 Ohm | 75.0 dB | 77.0 dB | 40.0 dB | 35.0 dB |
| 4 MHz | 3.8 dB/100m | 66.3 dB | 62.5 dB | 62.8 dB | 23.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 76.2 dB | 40.0 dB | 23.0 dB |
| 8 MHz | 5.3 dB/100m | 61.8 dB | 56.5 dB | 56.7 dB | 24.5 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 70.1 dB | 40.0 dB | 16.9 dB |
| 10 MHz | 5.9 dB/100m | 60.3 dB | 54.4 dB | 54.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 68.2 dB | 40.0 dB | 15.0 dB |
| 16 MHz | 7.4 dB/100m | 57.2 dB | 49.8 dB | 50.7 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 64.1 dB | 38.0 dB | 10.9 dB |
| 20 MHz | 8.3 dB/100m | 55.8 dB | 47.5 dB | 48.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 62.2 dB | 37.0 dB | 9.0 dB |
| 25 MHz | 9.3 dB/100m | 54.3 dB | 45.0 dB | 46.8 dB | 24.3 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 60.2 dB | 36.0 dB | 7.0 dB |
| 31.25 MHz | 10.4 dB/100m | 52.9 dB | 42.5 dB | 44.9 dB | 23.6 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 75.0 dB | 58.3 dB | 35.1 dB | 5.1 dB |
| 62.5 MHz | 14.8 dB/100m | 48.4 dB | 33.6 dB | 38.9 dB | 21.5 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 73.6 dB | 52.3 dB | 32.0 dB | |
| 100 MHz | 18.9 dB/100m | 45.3 dB | 26.4 dB | 34.8 dB | 20.1 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 70.5 dB | 48.2 dB | 30.0 dB | |
| 200 MHz | 27.0 dB/100m | 40.8 dB | 13.8 dB | 28.8 dB | 18.0 dB | 100 ± 22 Ohm | 100 ± 10 Ohm | 66.0 dB | 42.2 dB | 27.0 dB | |
| 250 MHz | 30.4 dB/100m | 39.3 dB | 9.0 dB | 26.8 dB | 17.3 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 64.5 dB | 40.2 dB | 26.0 dB | |
| 300 MHz | 33.5 dB/100m | 38.1 dB | 4.6 dB | 25.3 dB | 16.8 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 63.3 dB | 38.7 dB | 25.2 dB | |
| 350 MHz | 36.3 dB/100m | 37.1 dB | 0.8 dB | 23.9 dB | 16.3 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 62.3 dB | 37.3 dB | 24.6 dB | |
| 400 MHz | 39.0 dB/100m | 36.3 dB | 22.8 dB | 15.9 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 61.5 dB | 36.2 dB | 24.0 dB | ||
| 450 MHz | 41.5 dB/100m | 35.5 dB | 21.7 dB | 15.5 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 60.7 dB | 35.1 dB | 23.5 dB | ||
| 500 MHz | 43.9 dB/100m | 34.8 dB | 20.8 dB | 15.2 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 60.0 dB | 34.2 dB | 23.0 dB | ||
| 550 MHz | 46.2 dB/100m | 33.2 dB | 20.0 dB | 14.9 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 59.4 dB | 33.4 dB | |||
| 600 MHz | 48.4 dB/100m | 32.6 dB | 19.2 dB | 14.7 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 58.8 dB | 32.6 dB | |||
| 625 MHz | 49.5 dB/100m | 32.4 dB | 18.9 dB | 14.5 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 58.6 dB | 32.3 dB | |||
| 750 MHz | 54.7 dB/100m | 32.2 dB | 17.3 dB | 14.0 dB | 57.4 dB | 30.7 dB | |||||
| 860 MHz | 58.9 dB/100m | 31.3 dB | 16.1 dB | 13.6 dB | 56.5 dB | 29.5 dB |
| UL Voltage Rating |
|---|
| 300 V (CMP), 300 V (CL3P) |
| UL Rating. | Operating | Installation | Storage |
|---|---|---|---|
| 105°C | -20°C To +75°C | 0°C To +50°C | -20°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1.25 in | 2.75 in |
|
Max. Pull Tension |
25 lbs |
|---|---|
|
Bulk Cable Weight |
37 lbs/1000ft |
|
Environmental Suitability |
Plenum, Indoor |
|---|---|
|
Sustainability |
Product Lens™, Environmental Product Declaration (EPD) Available |
|
Flammability / Fire Resistance |
NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2 |
|
NEC / UL Compliance |
Article 800, CMP;CMP-LP (0.7A);CL3P-LP (0.7A) |
|
CEC / C(UL) Compliance |
CMP |
|
ICEA Compliance |
S-116-732-2013 |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
NEMA Compliance |
ANSI/NEMA WC-66 |
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6A |
|
CENELEC Compliance |
Segregation class according EN50174-2=a |
|
CPR Euroclass |
Eca |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
Verified Channel/Category 6A |
|
Non-Plenum Number |
10GXS12 |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
|---|
|
Update and Revision |
Revision Number: 0.197 Revision Date: 02-16-2021 |
|---|
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 10GXS13 0101000 | Black | Reel | 1,000 ft | 612825004035 |
| 10GXS13010A1000 | Black | Reel-in-Box | 1,000 ft | 612825004134 |
| 10GXS13 D151000 | Blue | Reel | 1,000 ft | 612825004042 |
| 10GXS13D15A1000 | Blue | Reel-in-Box | 1,000 ft | 612825004059 |
| 10GXS13 0081000 | Gray | Reel | 1,000 ft | 612825004011 |
| 10GXS13008A1000 | Gray | Reel-in-Box | 1,000 ft | 612825004110 |
| 10GXS13 0051000 | Green | Reel | 1,000 ft | 612825003991 |
| 10GXS13005A1000 | Green | Reel-in-Box | 1,000 ft | 612825004097 |
| 10GXS13 0031000 | Orange | Reel | 1,000 ft | 612825003977 |
| 10GXS13003A1000 | Orange | Reel-in-Box | 1,000 ft | 612825004073 |
| 10GXS13 0071000 | Purple | Reel | 1,000 ft | 612825004004 |
| 10GXS13007A1000 | Purple | Reel-in-Box | 1,000 ft | 612825004103 |
| 10GXS13 0021000 | Red | Reel | 1,000 ft | 612825003960 |
| 10GXS13002A1000 | Red | Reel-in-Box | 1,000 ft | 612825004066 |
| 10GXS13 0091000 | White | Reel | 1,000 ft | 612825004028 |
| 10GXS13009A1000 | White | Reel-in-Box | 1,000 ft | 612825004127 |
| 10GXS13 0041000 | Yellow | Reel | 1,000 ft | 612825003984 |
| 10GXS13004A1000 | Yellow | Reel-in-Box | 1,000 ft | 612825004080 |
