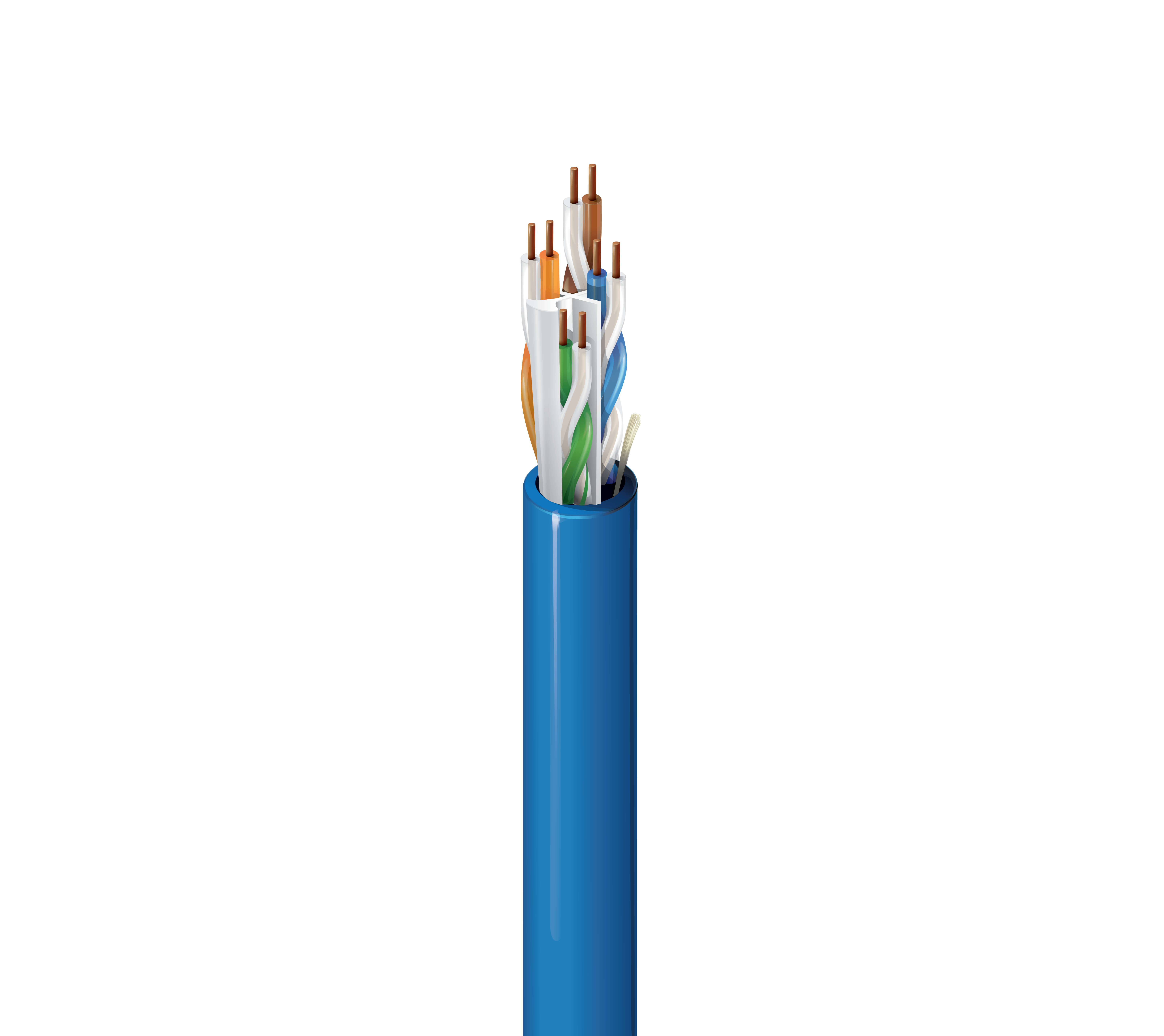

Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, Data Center EoR and MoR, Network Backbone, HDBaseT, HDBaseT 4K UHD
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.
Max. Pull Tension
40 lbs (18 kg)
Bulk Cable Weight
Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire
UL 1666 Riser, FT4, FT4, IEC 60332-1-2
CPR Euroclass: Eca
NEC / UL Compliance
Article 800, CMR;CMR-LP (0.6A);CL3R-LP (0.6A)
CEC / C(UL) Compliance
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
ANSI/TIA-568.2-D Category 6A
ISO/IEC 11801-1, IEC 61156-5
Segregation class according EN50174-2 = a
European Directive Compliance
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)
Verified Channel/Category 6A
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.
Update and Revision
Revision Number: 0.343 Revision Date: 12-15-2021
