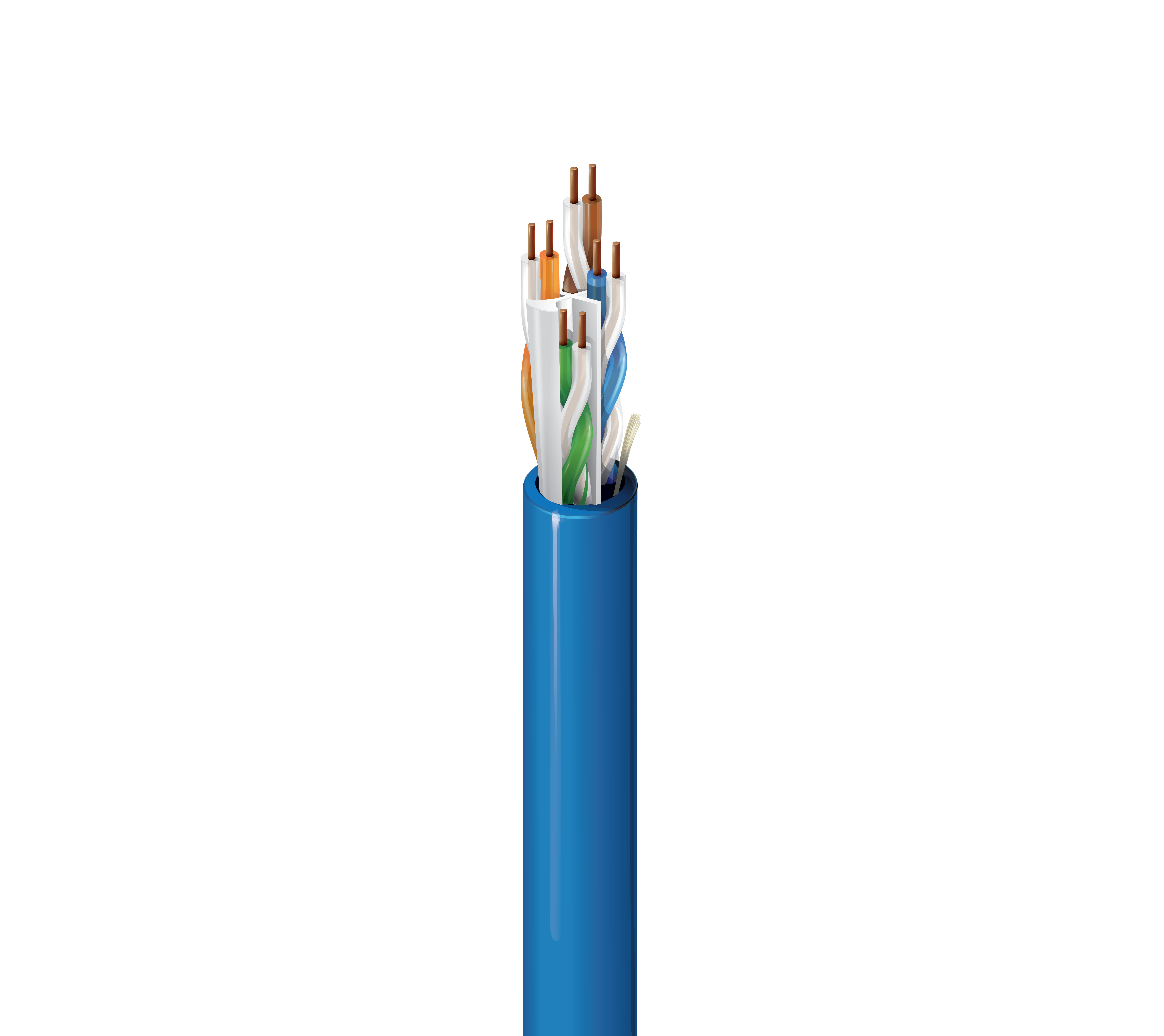

10GXS Category 6A Enhanced Cable, 4 Bonded-Pairs, U/UTP, CMP
|
Suitable Applications |
Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, Data Center EoR and MoR, Network Backbone, HDBaseT, HDBaseT 4K UHD |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents. |
| AWG | Stranding | Material | Number of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
| Material | Color Code |
|---|---|
| FEP - Fluorinated Ethylene Propylene | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
|
Bonded-Pair |
Yes |
|---|
| Separator Material | Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Center Member (Patented EquiSpline®), EquiBlock™ Barrier Technology | PVC - Polyvinyl Chloride | Flamarrest® | 0.270 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance | Max. DCR Unbalanced Between Pairs [%] | Max. Capacitance Unbalance | Nom. Mutual Capacitance |
|---|---|---|---|---|
| 75 Ohm/km | 3% | 5% | 90 pF/HUNm | 17 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nom. Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 69% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. PSNEXT [dB] | Min. PSACR [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance | Min. PSANEXT | Min. PSAACRF | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2.1 dB/100m | 75.3 dB | 73.2 dB | 79.8 dB | 20.0 dB | 100 ± 15 Ohm | 105 ± 10 Ohm | 75.0 dB | 77.0 dB | 40.0 dB | 43.0 dB |
| 4 MHz | 3.8 dB/100m | 66.3 dB | 62.5 dB | 67.8 dB | 23.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 76.2 dB | 40.0 dB | 41.0 dB |
| 8 MHz | 5.3 dB/100m | 61.8 dB | 56.5 dB | 61.7 dB | 24.5 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 70.1 dB | 40.0 dB | 24.9 dB |
| 10 MHz | 5.9 dB/100m | 60.3 dB | 54.4 dB | 59.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 68.2 dB | 40.0 dB | 23.0 dB |
| 16 MHz | 7.4 dB/100m | 57.2 dB | 49.8 dB | 55.7 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 64.1 dB | 38.0 dB | 18.9 dB |
| 20 MHz | 8.3 dB/100m | 55.8 dB | 47.4 dB | 53.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 62.2 dB | 37.0 dB | 17.0 dB |
| 25 MHz | 9.3 dB/100m | 54.3 dB | 45.0 dB | 51.8 dB | 24.3 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 75.0 dB | 60.2 dB | 36.0 dB | 15.0 dB |
| 31.25 MHz | 10.4 dB/100m | 52.9 dB | 42.5 dB | 49.9 dB | 23.6 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 75.0 dB | 58.3 dB | 35.1 dB | 13.1 dB |
| 62.5 MHz | 14.8 dB/100m | 48.4 dB | 33.6 dB | 43.9 dB | 21.5 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 73.6 dB | 52.3 dB | 32.0 dB | |
| 100 MHz | 18.9 dB/100m | 45.3 dB | 26.4 dB | 39.8 dB | 20.1 dB | 100 ± 15 Ohm | 100 ± 10 Ohm | 70.5 dB | 48.2 dB | 30.0 dB | |
| 200 MHz | 27.0 dB/100m | 40.8 dB | 13.8 dB | 33.8 dB | 18.9 dB | 100 ± 22 Ohm | 100 ± 10 Ohm | 66.0 dB | 42.2 dB | 27.0 dB | |
| 250 MHz | 30.4 dB/100m | 39.3 dB | 9.0 dB | 31.8 dB | 17.3 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 64.5 dB | 40.2 dB | 26.0 dB | |
| 300 MHz | 33.5 dB/100m | 38.1 dB | 4.6 dB | 30.3 dB | 16.8 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 63.3 dB | 38.7 dB | 25.2 dB | |
| 350 MHz | 36.3 dB/100m | 37.1 dB | 0.8 dB | 28.9 dB | 16.3 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 62.3 dB | 37.3 dB | 24.6 dB | |
| 400 MHz | 39.0 dB/100m | 36.3 dB | 27.8 dB | 15.9 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 61.5 dB | 36.2 dB | 24.0 dB | ||
| 450 MHz | 41.5 dB/100m | 35.5 dB | 26.7 dB | 15.5 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 60.7 dB | 35.1 dB | 23.5 dB | ||
| 500 MHz | 43.9 dB/100m | 34.8 dB | 25.8 dB | 15.2 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 60.0 dB | 34.2 dB | 23.0 dB | ||
| 550 MHz | 46.2 dB/100m | 33.2 dB | 25.0 dB | 14.9 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 59.4 dB | 33.4 dB | |||
| 600 MHz | 48.4 dB/100m | 32.6 dB | 24.2 dB | 14.7 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 58.8 dB | 32.6 dB | |||
| 625 MHz | 49.5 dB/100m | 32.4 dB | 23.9 dB | 14.5 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 58.6 dB | 32.3 dB | |||
| 750 MHz | 54.7 dB/100m | 32.2 dB | 22.3 dB | 14.0 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 57.4 dB | 30.7 dB | |||
| 860 MHz | 58.9 dB/100m | 31.3 dB | 21.1 dB | 13.6 dB | 100 ± 32 Ohm | 100 ± 10 Ohm | 56.5 dB | 29.5 dB |
| UL Voltage Rating |
|---|
| 300 V (CMP), 300 V (CL3P) |
| UL Rating | Operating | Installation | Storage |
|---|---|---|---|
| 105°C | -20°C To +75°C | 0°C To +50°C | -20°C To +75°C |
| Installation Min. |
|---|
| 2.5 in |
|
Max. Pull Tension |
40 lbs |
|---|---|
|
Bulk Cable Weight |
38 lbs/1000ft |
|
Environmental Suitability |
Plenum, Indoor |
|---|---|
|
Sustainability |
Product Lens™, Environmental Product Declaration (EPD) Available |
|
Flammability / Fire Resistance |
NFPA 262, UL 910 (Plenum), FT6, FT6 |
|
NEC / UL Compliance |
Article 800, CMP;CMP-LP (0.7A);CL3P-LP (0.7A) |
|
CEC / C(UL) Compliance |
CMP |
|
ICEA Compliance |
S-116-732-2013 |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
NEMA Compliance |
ANSI/NEMA WC-66 |
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6A |
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
CENELEC Compliance |
Segregation class according EN50174-2=a |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
Verified Channel/Category 6A |
|
Non-Plenum Number |
10GXS12 (Nonbonded)/10GXS32 |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
|---|
|
Update and Revision |
Revision Number: 0.330 Revision Date: 09-08-2021 |
|---|
| Item # | Color | UPC |
|---|---|---|
| 10GXS33 0101000 | Black | 612825377238 |
| 10GXS33010A1000 | Black | 612825377207 |
| 10GXS33 D151000 | Blue | 612825377276 |
| 10GXS33D15A1000 | Blue | 612825377122 |
| 10GXS33 0081000 | Gray | 612825377221 |
| 10GXS33008A1000 | Gray | 612825377184 |
| 10GXS33009A1000 | Gray | 612825377191 |
| 10GXS33 0051000 | Green | 612825377283 |
| 10GXS33005A1000 | Green | 612825377160 |
| 10GXS33 0031000 | Orange | 612825373322 |
| 10GXS33003A1000 | Orange | 612825377146 |
| 10GXS33 0021000 | Red | 612825373308 |
| 10GXS33002A1000 | Red | 612825377139 |
| 10GXS33 0071000 | Violet | 612825377290 |
| 10GXS33007A1000 | Violet | 612825377177 |
| 10GXS33 0091000 | White | 612825373315 |
| 10GXS33 0041000 | Yellow | 612825377214 |
| 10GXS33004A1000 | Yellow | 612825377153 |
