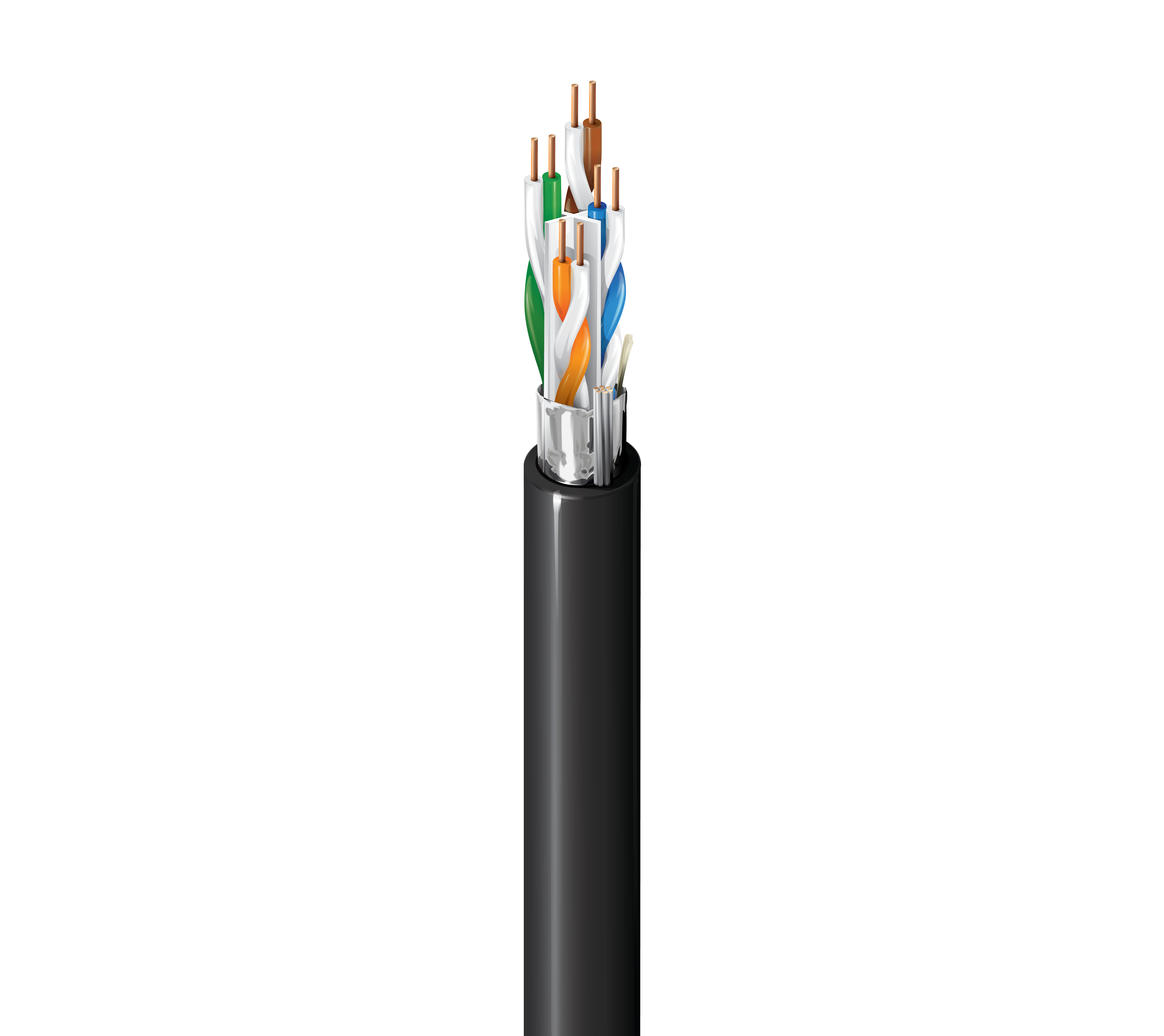

10GXW53

10GXW (0.265”) Category 6A Cable, 4 Pair, F/UTP, CMP

...
10GXW Category 6A Enhanced Premise Horizontal Cable (500MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest® PVC-LS Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, Noisy Environments

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
FEP - Fluorinated Ethylene Propylene White & Blue, White & Orange, White & Green, White & Brown

Bonded-Pair

No

Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.265 in
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. DCR Unbalanced Between Pairs [%] Max. Capacitance Unbalance Nom. Mutual Capacitance
82 Ohm/km 3.0% 5.0% 45 pF/100m 17 pF/ft
Delay
Max. Delay Nom. Velocity of Propagation (VP) [%]
537.6 ns/100m 69%
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Temperature Operating Installation Storage
105°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Installation Min.
2.65 in

Max. Pull Tension

25 lbs

Bulk Cable Weight

37 lbs/1000 ft

Standards and Compliance

Environmental Suitability

Plenum, Indoor

Flammability / Fire Resistance

NFPA 262 Plenum (UL 910), FT6, FT6

CEC / C(UL) Compliance

CMP

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6A

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical system.

History

Update and Revision

Revision Number: 0.21 Revision Date: 10-13-2021

Part Numbers
Item # Color Putup Type Length
10GXW53 0101000 Black Reel 1,000 ft
10GXW53010Z1000 Black ReelTuff Box 1,000 ft
10GXW53 D151000 Blue Reel 1,000 ft
10GXW53D15Z1000 Blue ReelTuff Box 1,000 ft
10GXW53 0081000 Gray Reel 1,000 ft
10GXW53 0051000 Green, Dark Reel 1,000 ft
10GXW53 0031000 Orange Reel 1,000 ft
10GXW53 0021000 Red Reel 1,000 ft
10GXW53 0071000 Violet Reel 1,000 ft
10GXW53 0091000 White Reel 1,000 ft
10GXW53009Z1000 White ReelTuff Box 1,000 ft
10GXW53 0041000 Yellow Reel 1,000 ft
