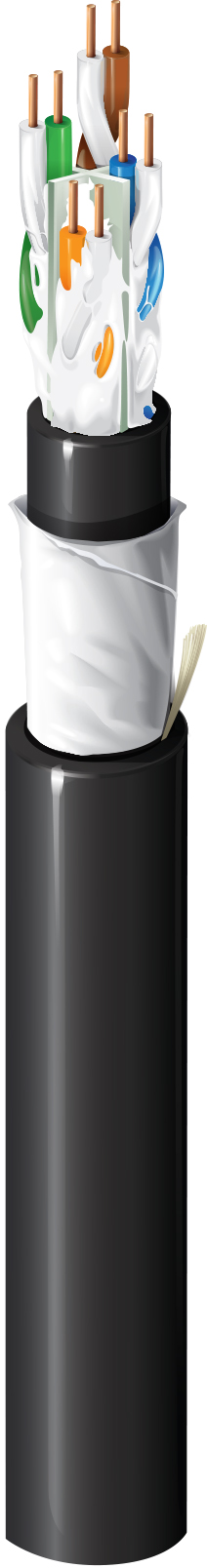

2147A

Category 6A Indoor/Outdoor Cable, 4 Pair, U/UTP, OSP/CM-LS, LSZH

...
Category 6A Premise Horizontal Cable (500 MHz), Indoor/Outdoor OSP/CM-LS, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Haloarrest® LSZH Inner Jacket, Gel-Filled, UV Resistant Flame Retardant Haloarrest® LSZH Outer Jacket
English Metric
Request Quote
Share

Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

OSP-Outdoor, Indoor/Outdoor, Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, HDBaseT

Patent

This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White & Blue, White & Orange, White & Green, White & Brown

Bonded-Pair

No

Inner Jacket Material
Material Nom. Diameter Ripcord
PE - Polyethylene 0.270 in No

Waterblocking

Gel Filled

Outer Jacket Material
Separator Material Material Material Trade Name Nom. Diameter Ripcord
Center Member (Patented X-Spline®) LSZH - Low Smoke Zero Halogen (Flame Retardant) Haloarrest® 0.370 in Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. DCR Unbalanced Between Pairs [%] Max. Capacitance Unbalance Nom. Mutual Capacitance
82 Ohm/km 3.0% 5.0% 45 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 45 ns/100m 64%
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 74.3 dB 72.3 dB 72.2 dB 70.2 dB 67.8 dB 64.8 dB 20.0 dB 100 +/- 5 115 +/- 15 67.0 dB 67.0 dB 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 65.3 dB 63.3 dB 61.5 dB 59.5 dB 55.8 dB 52.8 dB 23.0 dB 100 +/- 5 100 +/- 7 67.0 dB 66.2 dB 40.0 dB 23.0 dB
8 MHz 5.3 dB/100m 60.8 dB 58.8 dB 55.4 dB 53.4 dB 49.7 dB 46.7 dB 24.5 dB 100+/- 22 100 +/- 7 67.0 dB 60.1 dB 40.0 dB 16.9 dB
10 MHz 5.9 dB/100m 59.3 dB 57.3 dB 53.4 dB 51.4 dB 47.8 dB 44.8 dB 25.0 dB 100+/- 22 100 +/- 7 67.0 dB 58.2 dB 40.0 dB 15.0 dB
16 MHz 7.5 dB/100m 56.2 dB 54.2 dB 48.8 dB 46.8 dB 43.7 dB 40.7 dB 25.0 dB 100+/- 22 100 +/- 7 67.0 dB 54.1 dB 38.0 dB 10.9 dB
20 MHz 8.4 dB/100m 54.8 dB 52.8 dB 46.4 dB 44.4 dB 41.8 dB 38.8 dB 25.0 dB 100+/- 22 100 +/- 7 67.0 dB 52.2 dB 37.0 dB 9.0 dB
25 MHz 9.4 dB/100m 53.3 dB 51.3 dB 44.0 dB 42.0 dB 39.8 dB 36.8 dB 24.3 dB 100+/- 22 100 +/- 7 67.0 dB 50.2 dB 36.0 dB 7.0 dB
31.25 MHz 10.5 dB/100m 51.9 dB 49.9 dB 41.4 dB 39.4 dB 37.9 dB 34.9 dB 23.6 dB 100+/- 22 100 +/- 7 67.0 dB 48.3 dB 35.1 dB 5.1 dB
62.5 MHz 15.0 dB/100m 47.4 dB 45.4 dB 32.4 dB 30.4 dB 31.9 dB 28.9 dB 21.5 dB 100+/- 22 100 +/- 7 65.6 dB 42.3 dB 32.0 dB
100 MHz 19.1 dB/100m 44.3 dB 42.3 dB 25.2 dB 23.2 dB 27.8 dB 24.8 dB 20.1 dB 100+/- 22 100 +/- 7 62.5 dB 38.2 dB 30.0 dB
200 MHz 27.6 dB/100m 39.8 dB 37.8 dB 12.2 dB 10.2 dB 21.8 dB 18.8 dB 18.0 dB 100+/- 22 100 +/- 7 58.0 dB 32.2 dB 27.0 dB
250 MHz 31.1 dB/100m 38.3 dB 36.3 dB 7.3 dB 5.3 dB 19.8 dB 16.8 dB 17.3 dB 100 +/- 32 100 +/- 7 56.5 dB 30.2 dB 26.0 dB
300 MHz 34.3 dB/100m 37.1 dB 35.1 dB 2.9 dB 0.9 dB 18.3 dB 15.3 dB 16.8 dB 100 +/- 32 100 +/- 7 55.3 dB 28.7 dB 25.2 dB
350 MHz 37.2 dB/100m 36.1 dB 34.1 dB 16.9 dB 13.9 dB 16.3 dB 100 +/- 32 100 +/- 7 54.3 dB 27.3 dB 24.6 dB
400 MHz 40.1 dB/100m 35.3 dB 33.3 dB 15.8 dB 12.8 dB 15.9 dB 100 +/- 32 100 +/- 7 53.5 dB 26.2 dB 24.0 dB
450 MHz 42.7 dB/100m 34.5 dB 32.5 dB 14.7 dB 11.7 dB 15.5 dB 100 +/- 32 100 +/- 7 52.7 dB 25.1 dB 23.5 dB
500 MHz 45.3 dB/100m 33.8 dB 31.8 dB 13.8 dB 10.8 dB 15.2 dB 100 +/- 32 100 +/- 7 52.0 dB 24.2 dB 23.0 dB
Voltage
UL Voltage Rating
300 V (CM-LS)
Mechanical Characteristics
Temperature
UL Rating. Operating Installation Storage
75°C -40°C To +75°C -20°C To +75°C -40°C To +75°C
Bend Radius
Stationary Min. Installation Min.
3.0 in 3.75 in

Max. Pull Tension

25 lbs

Bulk Cable Weight

66 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance

Flammability / Fire Resistance

UL 1685 (UL Loading-Limited Smoke)

NEC / UL Compliance

Article 800, CM-LS

CEC / C(UL) Compliance

CM-LS

ICEA Compliance

S-116-732-2013, S-56-434, S-99-689, S-100-685

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6A

Cenelec Compliance

Segregation class according EN50174-2=a

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

Verified Channel/Category 6A

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Not Suitable for Direct Burial.

History

Update and Revision

Revision Number: 0.200 Revision Date: 02-16-2021

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
2147A 0101000 Black 612825379485
