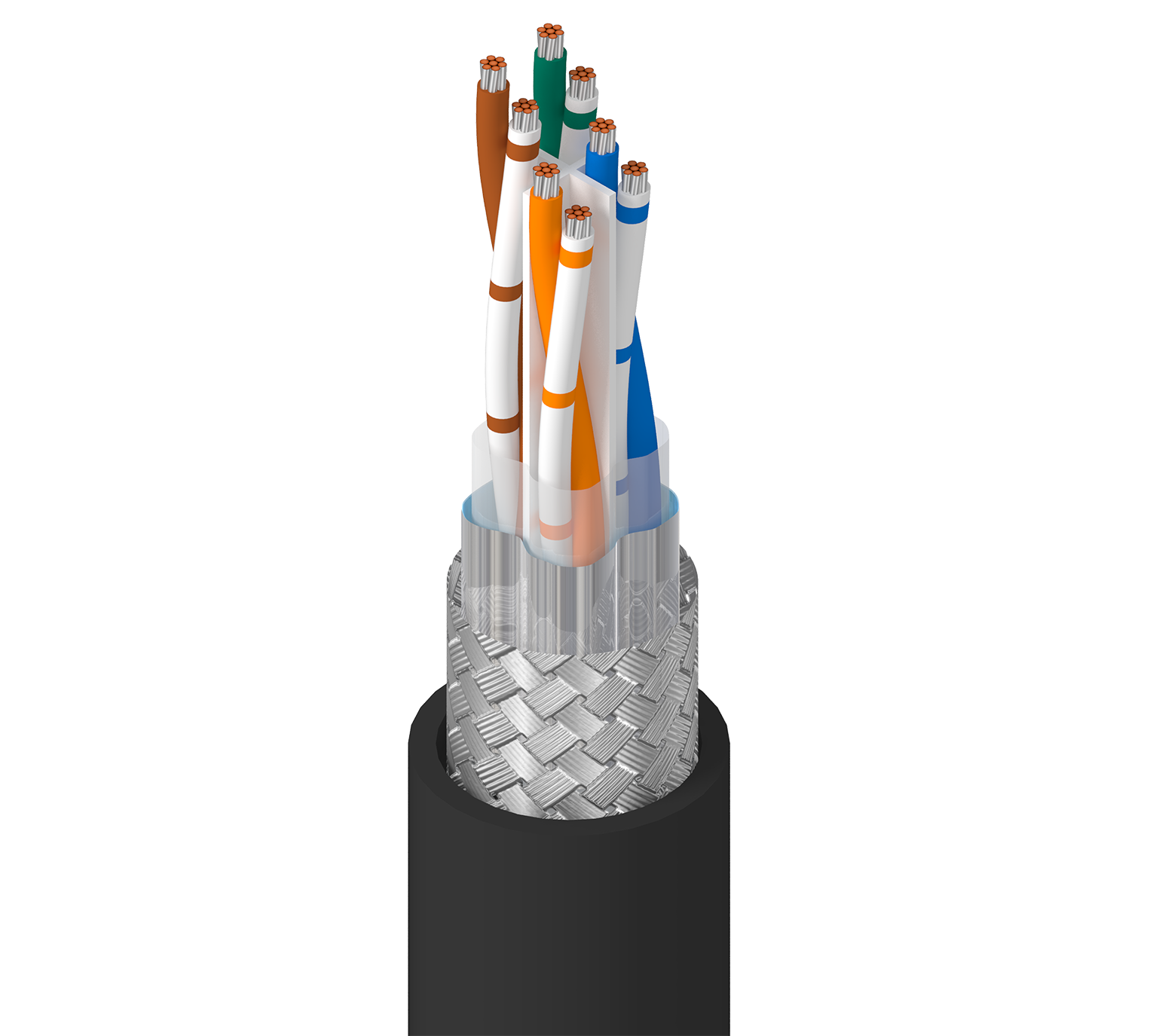

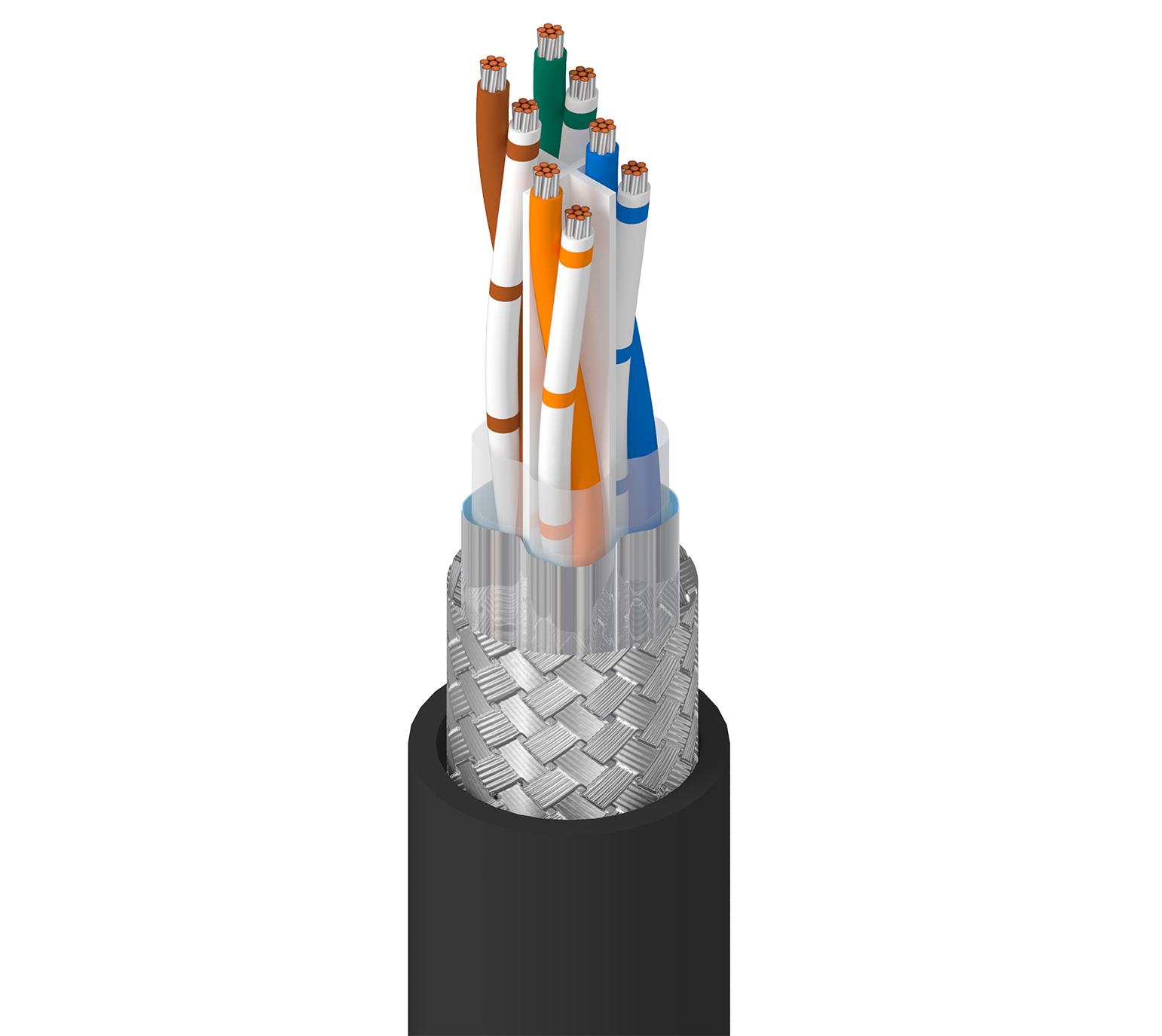

DataTuff® 6A, High Flex, 4 Pr #26 Str TC, PO Ins, OS, TPE Jkt, CMR, CMX
|
Suitable Applications |
High Flex, Automation, Robotics, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 26 | 7x34 | TC - Tinned Copper | 4 |
| Material |
|---|
| PE - Polyethylene |
| Color |
|---|
| White/Blue & Blue |
| White/Orange & Orange |
| White/Green & Green |
| White/Brown & Brown |
| Type | Material | Coverage [%] |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 75% |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| TPE - Thermoplastic Elastomer | .290 in. | .033 in. mm |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 21.2 Ohms/100m @ 20C | 0.04 % |
| Nom.Mutual Capacitance |
|---|
| 17 pF/ft |
| Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 540 ns/100m | 45 ns/100m | 67% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 3.1 dB/100m | 74.3 dB | 72.3 dB | 67.8 dB | 64.8 dB | 20.0 dB | 100 +/- 15 Ohms | 100 +/- 10 Ohms | 40.0 dB | 35.0 dB |
| 4 MHz | 5.7 dB/100m | 65.3 dB | 63.3 dB | 55.8 dB | 52.8 dB | 23.0 dB | 100 +/- 15 Ohms | 100 +/- 15 Ohms | 40.0 dB | 23.0 dB |
| 8 MHz | 8.0 dB/100m | 60.8 dB | 58.8 dB | 49.7 dB | 46.7 dB | 24.5 dB | 100 +/- 15 Ohms | 100 +/- 15 Ohms | 40.0 dB | 16.9 dB |
| 10 MHz | 8.9 dB/100m | 59.3 dB | 57.3 dB | 47.8 dB | 44.8 dB | 25.0 dB | 100 +/- 15 Ohms | 100 +/- 15 Ohms | 40.0 dB | 15.0 dB |
| 16 MHz | 11.2 dB/100m | 56.2 dB | 54.2 dB | 43.7 dB | 40.7 dB | 25.0 dB | 100 +/- 15 Ohms | 100 +/- 15 Ohms | 38.0 dB | 10.9 dB |
| 20 MHz | 12.6 dB/100m | 54.8 dB | 52.8 dB | 41.8 dB | 38.8 dB | 25.0 dB | 100 +/- 15 Ohms | 100 +/- 15 Ohms | 37.0 dB | 9.0 dB |
| 25 MHz | 14.1 dB/100m | 53.3 dB | 51.3 dB | 39.8 dB | 36.8 dB | 24.2 dB | 100 +/- 15 Ohms | 100 +/- 15 Ohms | 36.0 dB | 7.0 dB |
| 31.25 MHz | 15.8 dB/100m | 51.9 dB | 49.9 dB | 7.9 dB | 34.9 dB | 23.3 dB | 100 +/- 15 Ohm | 100+/- 10 Ohm | 35.1 dB | 5.5 dB |
| 62.5 MHz | 22.5 dB/100m | 47.4 dB | 45.4 dB | 31.9 dB | 28.9 dB | 20.7 dB | 100 +/- 15 Ohm | 100 +/- 10 Ohm | 32 dB | |
| 100 MHz | 28.7 dB/100m | 44.3 dB | 42.3 dB | 27.8 dB | 24.8 dB | 19.0 dB | 100 +/- 15 Ohm | 100 +/- 10 Ohm | 30.0 dB | |
| 200 MHz | 41.4 dB/100m | 39.8 dB | 37.8 dB | 21.8 dB | 18.8 dB | 19.0 dB | 100 +/- 22 Ohms | 100 +/- 10 Ohms | 27.0 dB | |
| 250 MHz | 46.6 dB/100m | 38.3 dB | 36.3 dB | 19.8 dB | 16.8 dB | 15.6 dB | 100 +/- 32 Ohms | 100 +/- 10 Ohms | 26.0 dB | |
| 300 MHz | 51.4 dB/100m | 37.1 dB | 35.1 dB | 18.3 dB | 15.3 dB | 14.9 dB | 100 +/- 32 Ohms | 100 +/- 10 Ohms | 25.2 dB | |
| 400 MHz | 60.1 dB/100m | 35.3 dB | 33.3 dB | 15.8 dB | 12.8 dB | 13.8 dB | 100 +/- 32 Ohm | 100 +/- 10 Ohm | 24.0 dB | |
| 500 MHz | 67.9 dB/100m | 33.8 dB | 31.8 dB | 13.8 dB | 10.8 dB | 13.0 dB | 100 +/- 32 Ohm | 100 +/- 10 Ohm | 23.0 dB |
| UL Description | UL Voltage Rating |
|---|---|
| UL 2463 | 600 V |
|
Installation Temperature Range |
-20°C To +80°C |
|---|---|
|
UL Temp Rating |
80°C |
|
Storage Temperature Range |
-40°C To +80°C |
|
Operating Temperature Range |
-40°C To +80°C |
|
Oil Resistance |
Oil Res II |
|---|---|
|
Bulk Cable Weight |
40lbs/1000 ft |
|
Max. Pull Tension |
21.7 lbs |
|
Min. Bend Radius During Installation |
1.16 in |
|
NEC/(UL) Compliance |
UL 444 |
|---|---|
|
UL AWM Style Compliance |
AWM 2463 |
|
Data Category |
Category 6A |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|---|---|
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
|
Suitability - Aerial |
No |
|---|---|
|
Suitability - Burial |
No |
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
No |
|
Suitability - Oil Resistance |
Yes |
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
|
UL Flammability |
UL 1666 - Riser |
|---|
|
Update and Revision |
Revision Number: 0.27 Revision Date: 04-08-2022 |
|---|
