OSP6AF

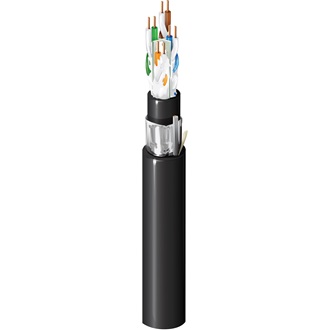

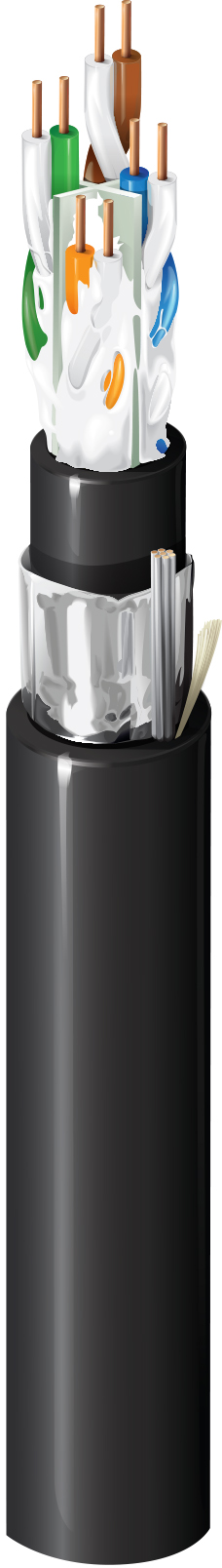

Category 6A Outside Plant F/UTP Cable

...
CAT6A (500 MHz), 4 Pair, F/UTP-Foil Shielded, Outdoor OSP, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented X-Spline, Gel-Filled, UV resistant LLDPE Inner Jacket, Overall Beldfoil® Shield with Drain Wire,
Get Product Alerts
Specifications
Product Overview

Suitable Applications

OSP-Outside Plant, 10 Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, PoE, PoE+

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
23 Solid BC - Bare Copper 4

Conductor Count

8

Total Number of Pairs

4

Insulation
Material
PO - Polyolefin

Bonded-Pair

N/A

Color Chart
Number Color
1 White & Blue
2 White & Orange
3 White & Green
4 White & Brown
Inner Jacket Material
Material Nominal Diameter Ripcord
PE - Polyethylene 0.26 in No

Water Penetration

GR 421‐CORE para. 4.3.5.1, ANSI/ICEA S‐107‐704 para. 8.2.1, ANSI/ICEA S-99-689

Outer Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 26
Outer Jacket Material
Material Nominal Diameter Ripcord
PE - Polyethylene 0.360 in Yes
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max. DCR Unbalance Max DCR Unbalanced Between Pairs [%]
82 Ohm/km 3.0 % 5.0 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
45 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew
100 MHz 537.6 ns/100m 45 ns/100m
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 74.3 dB 72.3 dB 72.2 dB 70.2 dB 67.8 dB 64.8 dB 20.0 dB 105 +/- 10 115 +/- 15 67.0 dB 67.0 dB 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 65.3 dB 63.3 dB 61.5 dB 59.5 dB 55.8 dB 52.8 dB 23.0 dB 105 +/- 10 100 +/- 7 67.0 dB 66.2 dB 40.0 dB 23.0 dB
8 MHz 5.3 dB/100m 60.8 dB 58.8 dB 55.4 dB 53.4 dB 49.7 dB 46.7 dB 24.5 dB 100 +/- 22 100 +/- 7 67.0 dB 60.1 dB 40.0 dB 16.9 dB
10 MHz 5.9 dB/100m 59.3 dB 57.3 dB 53.4 dB 51.4 dB 47.8 dB 44.8 dB 25.0 dB 100 +/- 22 100 +/- 7 67.0 dB 58.2 dB 40.0 dB 15.0 dB
16 MHz 7.5 dB/100m 56.2 dB 54.2 dB 48.8 dB 46.8 dB 43.7 dB 40.7 dB 25.0 dB 100 +/- 22 100 +/- 7 67.0 dB 54.1 dB 38.0 dB 10.9 dB
20 MHz 8.4 dB/100m 54.8 dB 52.8 dB 46.4 dB 44.4 dB 41.8 dB 38.8 dB 25.0 dB 100 +/- 22 100 +/- 7 67.0 dB 52.2 dB 37.0 dB 9.0 dB
25 MHz 9.4 dB/100m 53.3 dB 51.3 dB 44.0 dB 42.0 dB 39.8 dB 36.8 dB 24.3 dB 100 +/- 22 100 +/- 7 67.0 dB 50.2 dB 36.0 dB 7.0 dB
31.25 MHz 10.5 dB/100m 51.9 dB 49.9 dB 41.4 dB 39.4 dB 37.9 dB 34.9 dB 23.6 dB 100 +/- 22 100 +/- 7 67.0 dB 48.3 dB 35.1 dB 5.1 dB
62.5 MHz 15.0 dB/100m 47.4 dB 45.4 dB 32.4 dB 30.4 dB 31.9 dB 28.9 dB 21.5 dB 100 +/- 22 100 +/- 7 65.6 dB 42.3 dB 32.0 dB
100 MHz 19.1 dB/100m 44.3 dB 42.3 dB 25.2 dB 23.2 dB 27.8 dB 24.8 dB 20.1 dB 100 +/- 22 100 +/- 7 62.5 dB 38.2 dB 30.0 dB
200 MHz 27.6 dB/100m 39.8 dB 37.8 dB 12.2 dB 10.2 dB 21.8 dB 18.8 dB 18.0 dB 100 +/- 22 100 +/- 7 58.0 dB 32.2 dB 27.0 dB
250 MHz 31.1 dB/100m 38.3 dB 36.3 dB 7.3 dB 5.3 dB 19.8 dB 16.8 dB 17.3 dB 100 +/- 32 100 +/- 7 56.5 dB 30.2 dB 26.0 dB
300 MHz 34.3 dB/100m 37.1 dB 35.1 dB 2.9 dB 0.9 dB 18.3 dB 15.3 dB 16.8 dB 100 +/- 32 100 +/- 7 55.3 dB 28.7 dB 25.2 dB
350 MHz 37.2 dB/100m 36.1 dB 34.1 dB 16.9 dB 13.9 dB 16.3 dB 100 +/- 32 100 +/- 7 54.3 dB 27.3 dB 24.6 dB
400 MHz 40.1 dB/100m 35.3 dB 33.3 dB 15.8 dB 12.8 dB 15.9 dB 100 +/- 32 100 +/- 7 53.5 dB 26.2 dB 24.0 dB
450 MHz 42.7 dB/100m 34.5 dB 32.5 dB 14.7 dB 11.7 dB 15.5 dB 100 +/- 32 100 +/- 7 52.7 dB 25.1 dB 23.5 dB
500 MHz 45.3 dB/100m 33.8 dB 31.8 dB 13.8 dB 10.8 dB 15.2 dB 100 +/- 32 100 +/- 7 52.0 dB 24.2 dB 23.0 dB

Segregation class according EN50174-2

a

Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Installation Temp Range

-40°C To +60°C

Non-UL Temp Rating

+75°C

Storage Temp Range

-40°C To +75°C

Operating Temp Range

-40°C To +75°C

Mechanical Characteristics

Cold Bend Test

-40°C Compliance Per UL 1581

Bulk Cable Weight

49 lbs/1000ft

Max. Pull Tension

25 lbs

Min Bend Radius During Installation

3.75 in

Min Bend Radius/Minor Axis

3.0 in

Standards

NEC/(UL) Compliance

N/A

IEC Compliance

11801 ed 2.2 (2011) Class EA

Data Category

Category 6A

ANSI Compliance

S-116-732-2013 Category 6A, ANSI/NEMA WC-66 Category 6A

TIA/EIA Compliance

ANSI/TIA 568-C.2 Category 6A

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Other Compliance

Outdoor Use ANSI/ICEA S-56-434, Broadband Outdoor Use ANSI/ICEA S-99-689, Verified Channel/Category 6A

Applicable Environmental and Other Programs

Environmental Space

Outdoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (ROHS II)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU

Yes

EU Directive Compliance

Yes

EU CE Mark

No

EU REACH SVHC Compliance (yyyy-mm-dd)

2017-07-10

EU RoHS Compliance Date (yyyy-mm-dd)

2016-03-02

Suitability

Suitability - Aerial

Yes - When supported by messenger wire

Suitability - Burial

Yes - Engineered burial only

Suitability - Hazardous Locations

No

Suitability - Indoor

No

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

No

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Patent

This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>.

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Not Suitable for Direct Burial. Belden recommends using an entrance demarcation point when transitioning inside buildings with gel-filled OSP cables due to the cable design containing gel specific for wet outdoor environments. The suggested transition point is the REVConnect core coupler, part number RVACPKUBK-S1.

History

Update and Revision

Revision Number: 0.155 Revision Date: 02-16-2021

Part Numbers
Item # Color Putup Type Length UPC
OSP6AF 0101000 Black Reel 1,000 ft 612825378839
