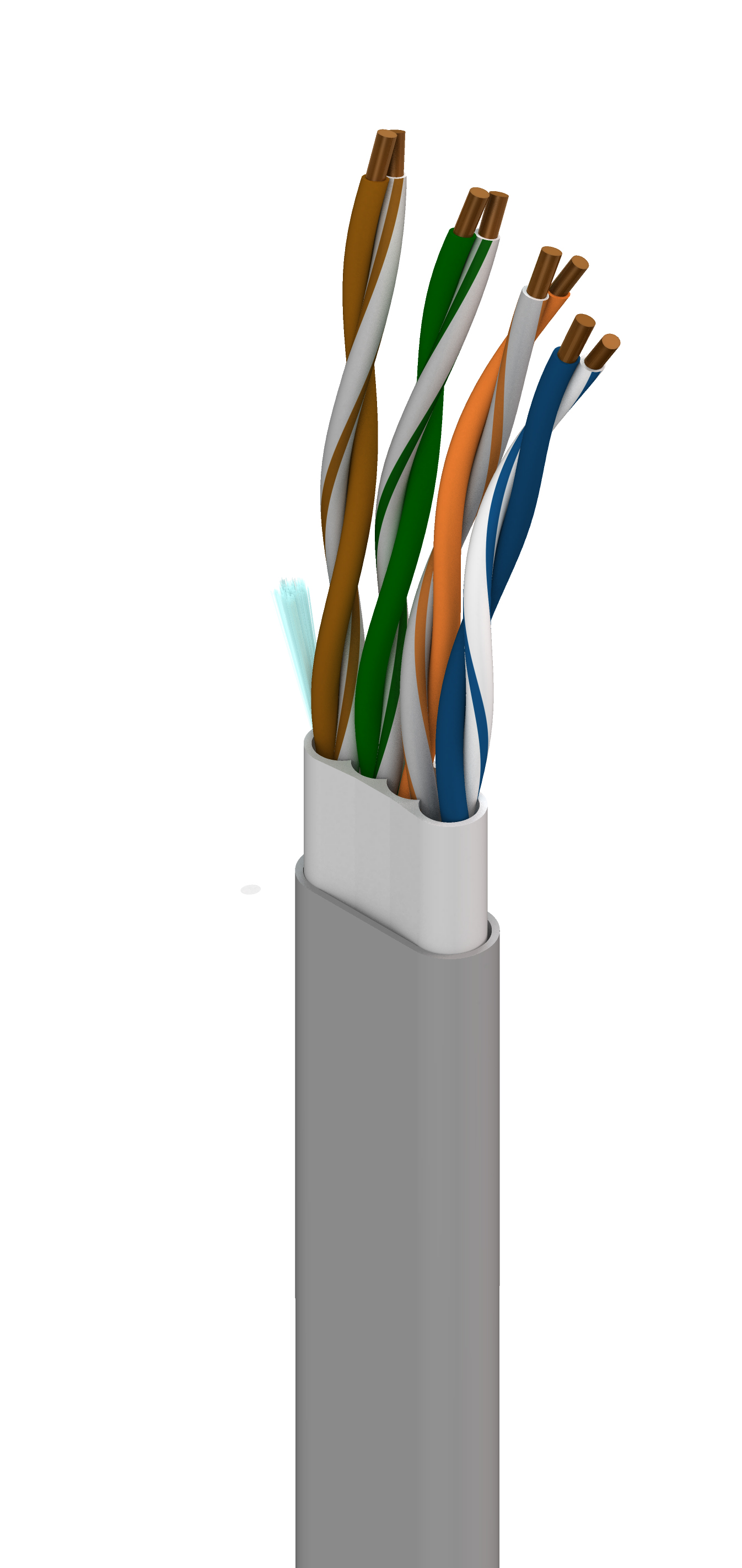

Product Number: 11872A
DataTuff® 6, 4 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, PVC Jkt, CMR
Industrial Ethernet Cat 6, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, PVC Inner Jacket, PVC Outer Jacket, CMR
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
Physical Characteristics (Overall)
Conductor
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|---|
| Pair(s) | 23 | Solid | BC - Bare Copper | 0.022 in | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
Insulation
| Element | Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| Pair(s) | PO - Polyolefin | 0.043 in | 0.01 in |
|
Bonded-Pair |
Yes |
|---|
Color Chart
| Number | Color |
|---|---|
| 1 | Blue & White/Blue |
| 2 | Orange & White/Orange |
| 3 | Green & White/Green |
| 4 | Brown & White/Brown |
Inner Jacket
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.365 x 0.165 in | Yes |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.475 x 0.265 in | 0.035 in | Yes |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 23.2 Ohm/1000ft | 3 % |
Capacitance
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 49.2 pF/ft | 15 pF/ft |
Delay
| Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 510 ns/100m | 25 ns/100m | 70% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 1.9 dB/100m | 74.3 dB | 72.3 dB | 72.4 dB | 70.4 dB | 67.8 dB | 64.8 dB | 20 dB | 100 ± 12 Ohm | 100 ± 15 Ohm |
| 4 MHz | 3.7 dB/100m | 65.3 dB | 63.3 dB | 61.6 dB | 59.6 dB | 55.7 dB | 52.7 dB | 23 dB | 100 ± 12 Ohm | 100 ± 15 |
| 8 MHz | 5.3 dB/100m | 60.3 dB | 58.8 dB | 55.5 dB | 53.5 dB | 49.7 dB | 46.7 dB | 24.5 dB | 100 ± 12 Ohm | 100 ± 15 |
| 10 MHz | 5.9 dB/100m | 59.3 dB | 57.3 dB | 53.4 dB | 51.4 dB | 47.8 dB | 44.8 dB | 25 dB | 100 ± 12 Ohm | 100 ± 15 |
| 16 MHz | 7.5 dB/100m | 56.3 dB | 54.3 dB | 48.7 dB | 46.7 dB | 43.7 dB | 40.7 dB | 25 dB | 100 ± 12 Ohm | 100 ± 8 |
| 20 MHz | 8.4 dB/100m | 54.8 dB | 52.8 dB | 46.4 dB | 44.4 dB | 41.7 dB | 38.7 dB | 25 dB | 100 ± 12 Ohm | 100 ± 8 |
| 25 MHz | 9.5 dB/100m | 53.4 dB | 51.4 dB | 43.9 dB | 41.9 dB | 39.8 dB | 36.8 dB | 24.3 dB | 100 ± 15 Ohm | 100 ± 8 |
| 31.25 MHz | 10.6 dB/100m | 51.9 dB | 49.9 dB | 41.2 dB | 39.2 dB | 37.9 dB | 34.9 dB | 23.6 dB | 100 ± 15 Ohm | 100 ± 8 |
| 62.5 MHz | 15.4 dB/100m | 47.4 dB | 45.4 dB | 32 dB | 30 dB | 31.8 dB | 28.8 dB | 21.5 dB | 100 ± 15 Ohm | 100 ± 8 |
| 100 MHz | 19.8 dB/100m | 44.3 dB | 42.3 dB | 24.5 dB | 22.5 dB | 27.8 dB | 24.8 dB | 21 dB | 100 ± 15 Ohm | |
| 155 MHz | 25.1 dB/100m | 41.5 dB | 39.5 dB | 16.3 dB | 14.3 dB | 23.9 dB | 20.9 dB | 21 dB | 100 ± 15 Ohm | |
| 200 MHz | 29 dB/100m | 39.9 dB | 37.9 dB | 10.8 dB | 10 dB | 21.7 dB | 18.7 dB | 21 dB | 100 ± 15 Ohm | |
| 250 MHz | 32.8 dB/100m | 38.3 dB | 36.3 dB | 5.5 dB | 3.5 dB | 19.8 dB | 16.8 dB | 18 dB | 100 ± 20 Ohm | |
| 300 MHz | 35.2 dB/100m | 37.2 dB | 34.2 dB | 0.7 dB | 0 dB | 18.2 dB | 15.2 dB | 18 dB | 100 ± 20 Ohm | |
| 310 MHz | 37.1 dB/100m | 36.9 dB | 34.9 dB | 0 dB | 17.9 dB | 14.9 dB | 18 dB | 100 ± 20 Ohm | ||
| 350 MHz | 39.8 dB/100m | 36.2 dB | 34.2 dB | 16.9 dB | 13.9 dB | 17 dB | 100 ± 22 Ohm | |||
| 400 MHz | 43 dB/100m | 35.3 dB | 33.3 dB | 15.7 dB | 12.7 dB | 14 dB | 100 ± 32 Ohm | |||
| 500 MHz | 49 dB/100m | 33.8 dB | 31.8 dB | 13.8 dB | 10.8 dB | 14 dB | 100 ± 32 Ohm |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Installation Temperature Range |
-10°C To +75°C |
|---|---|
|
UL Temp Rating |
75°C |
|
Operating Temperature Range |
-25°C To +75°C |
Mechanical Characteristics
|
Bulk Cable Weight |
59 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
50 lbs |
|
Min. Bend Radius During Installation |
4.75 in |
|
Min. Bend Radius/Minor Axis |
0.1 in |
Standards
|
NEC Articles |
Article 800 |
|---|---|
|
NEC/(UL) Compliance |
CMR |
|
CEC/C(UL) Compliance |
CMR |
|
ISO/IEC Compliance |
ISO/IEC 11801 Cat 6 |
|
CPR Euroclass |
Eca |
|
Data Category |
Category 6 |
|
TIA/EIA Compliance |
TIA/EIA-568B.2 Cat 6 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Riser |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
CSA/C(UL) Flammability |
FT4 |
|---|---|
|
UL Flammability |
UL1666 Riser |
|
IEC Flammability |
IEC 60332-1-2 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
Product Notes
|
Notes |
US Patent #'s 5, 606, 151; 5, 734, 126; 5, 821, 467 **Values above 350 MHz are information only |
|---|
History
|
Update and Revision |
Revision Number: 0.560 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.560 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 11872A 0101000 | Black | Reel | 1,000 ft | 612825107989 |
| 11872A 0081000 | Gray | Reel | 1,000 ft | 612825107972 |
