50106HFP

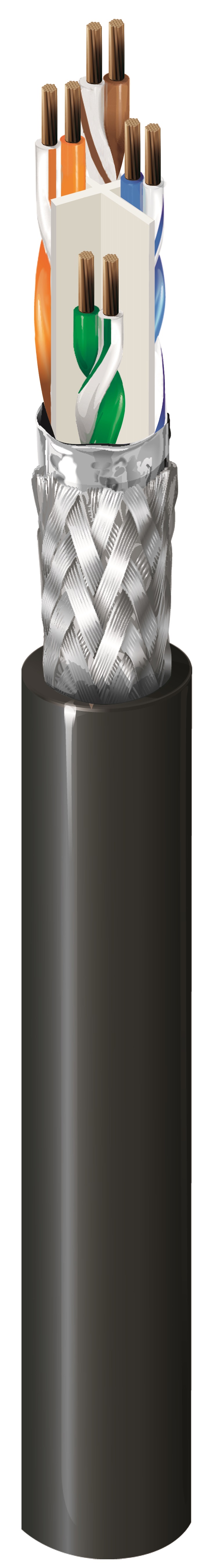

50106HFP Industrial Cat6 Cable, SF/UTP, 4 Pair, AWG 26 Stranded, PE/PUR, High-Flex, CC-Link IE Field & CC-Link IE Field TSN Certified, AWM 20549

...
SF/UTP, Category 6, 4-Pair, 26 AWG Stranded Bare Copper Conductors, Polyethylene Insulation, Overall foil shield plus tinned copper braid shield, Halogen Free PUR Jacket, High Flexibility, CC-Link IE Field & CC-Link IE Field TSN Certified, AWM 20549
English
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. Suitable for transmitting 1000BASE-TX Gigabit Ethernet, 100BASE-T Fast Ethernet, 100BaseVG ANYLAN, 155ATM, 622 ATM, RS-422, 250MHz Category 6, EtherCAT. With superior flexibility this cable is very suitable for use in the continuous flexing applications like drag chains, robotics, moving machinery parts, etc. It is designed to meet up to 10 million bending cycles that covers the most critical scenarios in plant engineering and machinery manufacturing. These are highly durable & ruggedized cables for both indoor and outdoor use meeting IEC 60332-1 & IEC 60332-3-25 flame rating.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material
26 Stranded BC - Bare Copper

Conductor Count

8

Total Number of Pairs

4

Insulation
Material
PE - Polyethylene
Color Chart
Number Color
Pair 1 White / Blue & Blue
Pair 2 White / Orange & Orange
Pair 3 White / Green & Green
Pair 4 White / Brown & Brown
Cabling
Filler
Central Spline
Outer Shield
Type Material Coverage [%]
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nominal Diameter
PUR - Polyurethane (Halogen Free) 7.0 mm
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max DCR Unbalanced Between Pairs [%]
140 Ohm/km 5 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
330 pF/100m 56 pF/m
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay Max. Delay Skew
538 ns/100m @100MHz 45 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB]
1 MHz 2.1 dB 65 dB 62 dB 63.3 dB 60.3 dB 19 dB
4 MHz 4.0 dB 63 dB 60.5 dB 51.2 dB 48.2 dB 19 dB
8 MHz 5.7 dB 58.2 dB 55.6 dB 45.2 dB 42.2 dB 19 dB
10 MHz 6.3 dB 56.6 dB 54 dB 43.3 dB 40.3 dB 19 dB
16 MHz 8.0 dB 53.2 dB 50.6 dB 39.2 dB 36.2 dB 18 dB
20 MHz 9.0 dB 51.6 dB 49 dB 37.2 dB 34.2 dB 17.5 dB
25 MHz 10.1 dB 50 dB 47.3 dB 35.3 dB 32.3 dB 17 dB
31.25 MHz 11.4 dB 48.4 dB 45.7 dB 33.4 dB 30.4 dB 16.5 dB
62.5 MHz 16.5 dB 43.4 dB 40.6 dB 27.3 dB 24.3 dB 14 dB
100 MHz 21.3 dB 39.9 dB 37.1 dB 23.3 dB 20.3 dB 12 dB
200 MHz 31.5 dB 34.8 dB 31.9 dB 17.2 dB 14.2 dB 9 dB
250 MHz 35.9 dB 33.1 dB 30.2 dB 15.3 dB 12.3 dB 8 dB

Table Notes

Note: Fluke Channel transmission performance, Max. Cable length: 45 meters

Voltage
Voltage Rating [V]
300 V RMS (UL AWM Style 20549)
Temperature Range

Operating Temperature Range

-25°C To 80°C

Mechanical Characteristics

Bulk Cable Weight

54 kg/km

Min. Bend Radius During Installation

56 mm

Min No. of Drag Chain Cycles

10 million

Drag Chain Parameters

1m Travel Distance, 2m/s Travel Speed, 2m/s² Acceleration and 70mm Bending Radius

Standards

CEC/C(UL) Compliance

AWM I/II 80C 300V

UL AWM Style Compliance

AWM 20549

ISO/IEC Compliance

ISO/IEC 11801

Data Category

Category 6

ANSI Compliance

ANSI/TIA 568-D.2

TIA/EIA Compliance

CC-Link IE Field, CC-Link IE Field TSN

Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor, LSZH

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive Compliance

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Non-Halogenated

Yes

Suitability - Oil Resistance

Yes

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2, IEC 60332-2-25

IEC 61034-2 - Smoke Density Min. Transmittance

60%

Product Notes

Footnote

For more order number information, please approach your Belden sales representative freely
History

Update and Revision

Revision Number: 0.103 Revision Date: 12-20-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length
50106HFP 010305M Black Reel 305 m
50106HFP 006305M Blue Reel 305 m
50106HFP 008305M Gray Reel 305 m
