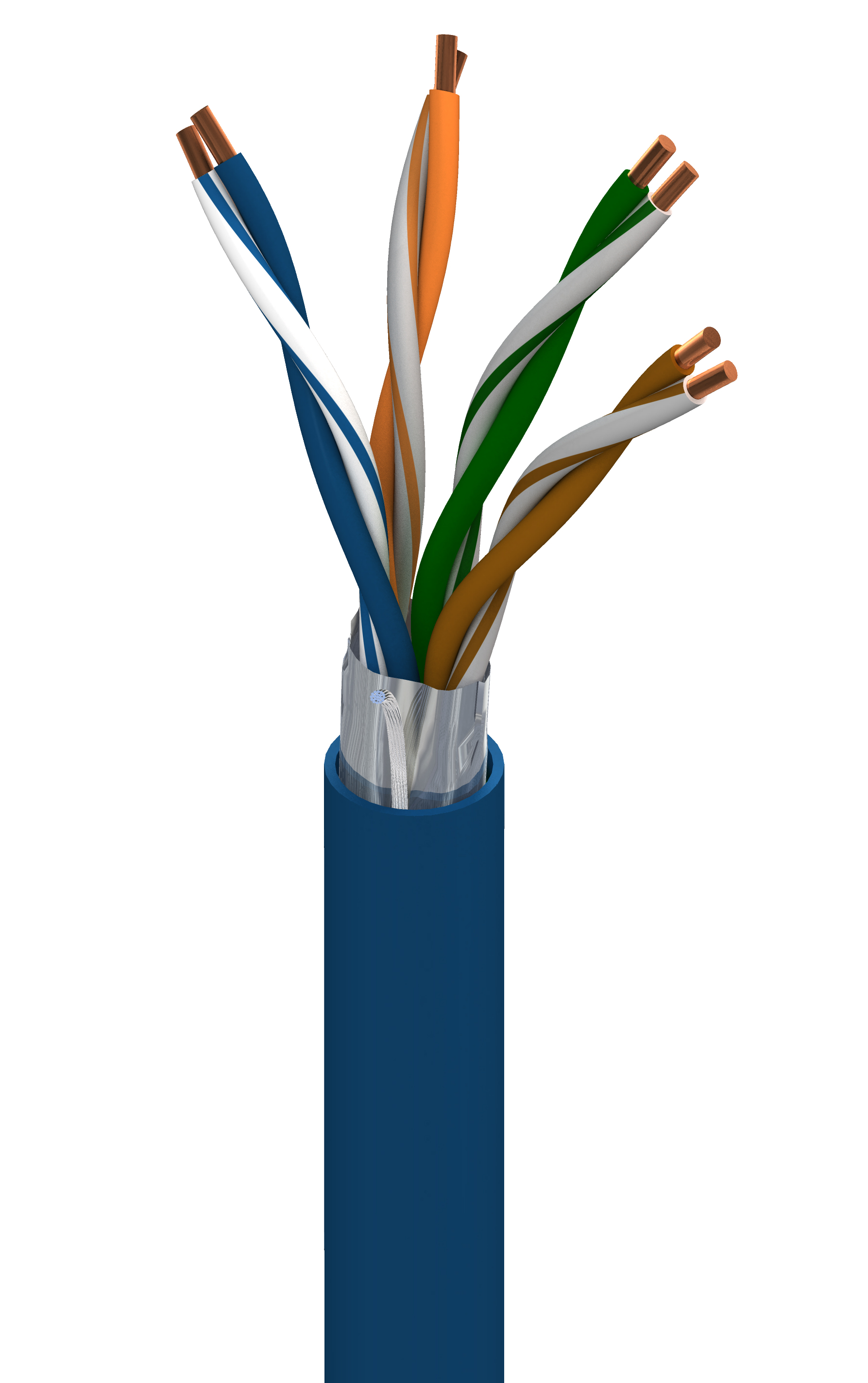

7901A

DataTuff® 5e, 4 Bonded-Pr #24 Sol BC, FEP Ins, OS, FEP Jkt, CMP, Extreme Temp

...
Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, FEP Insulation, Overall Beldfoil® Shield, FEP Outer Jacket, CMP
Get Product Alerts
Specifications
Product Overview

Suitable Applications

extreme temp, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
24 Solid BC - Bare Copper 4

Conductor Count

8

Total Number of Pairs

4

Insulation
Material
FEP - Fluorinated Ethylene Propylene

Bonded-Pair

Yes

Color Chart
Number Color
1 White/Blue Stripe & Blue
2 White/Orange Stripe & Orange
3 White/Green Stripe & Green
4 White/Brown Stripe & Brown
Outer Shield
Type Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape Beldfoil® 100% TC - Tinned Copper 24
Outer Jacket
Material Nominal Diameter Ripcord
FEP - Fluorinated Ethylene Propylene 0.231 in. No
Electrical Characteristics
Conductor DCR
Max. DCR Unbalance
3.0 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
66 pF/ft 15 pF/ft
Delay
Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
510 ns/100m 25 ns/100m 72%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted)
1 MHz 2 dB/100m 65.3 dB 65.3 dB 63.3 dB 63.3 dB 63.8 dB 60.8 dB 20 dB 100 ± 12 Ohm
4 MHz 4 dB/100m 56.3 dB 56.3 dB 52.3 dB 52.3 dB 51.7 dB 48.7 dB 23.6 dB 100 ± 12 Ohm
8 MHz 5.7 dB/100m 51.8 dB 51.8 dB 46.1 dB 46.1 dB 45.7 dB 42.7 dB 25.4 dB 100 ± 12 Ohm
10 MHz 6.4 dB/100m 50.3 dB 50.3 dB 43.9 dB 43.9 dB 43.8 dB 40.8 dB 26 dB 100 ± 12 Ohm
16 MHz 8.1 dB/100m 47.3 dB 47.3 dB 39.1 dB 39.1 dB 39.7 dB 36.7 dB 26 dB 100 ± 12 Ohm
20 MHz 9.2 dB/100m 45.8 dB 45.8 dB 35.2 dB 35.2 dB 37.7 dB 34.7 dB 26 dB 100 ± 12 Ohm
25 MHz 10.3 dB/100m 44.3 dB 44.3 dB 34.1 dB 34.1 dB 35.8 dB 32.8 dB 25.5 dB 100 ± 15 Ohm
31.25 MHz 11.6 dB/100m 42.9 dB 42.9 dB 31.3 dB 31.3 dB 33.9 dB 30.9 dB 25 dB 100 ± 15 Ohm
62.5 MHz 16.8 dB/100m 38.4 dB 38.4 dB 21.6 dB 21.6 dB 27.8 dB 24.8 dB 23.5 dB 100 ± 15 Ohm
100 MHz 21.7 dB/100m 35.3 dB 35.3 dB 17.1 dB 17.1 dB 23.8 dB 20.8 dB 22.5 dB 100 ± 15 Ohm
155 MHz 27.7 dB/100m 32.5 dB 32.5 dB 4.7 dB 4.7 dB 19.9 dB 16.9 dB 19 dB 100 ± 18 Ohm
200 MHz 32 dB/100m 30.8 dB 30.8 dB 3 dB 3 dB 17.7 dB 14.7 dB 19 dB 100 ± 20 Ohm
250 MHz 36.4 dB/100m 29.3 dB 29.3 dB 0 dB 0 dB 15.8 dB 12.8 dB 18 dB 100 ± 20 Ohm
300 MHz 40.5 dB/100m 28.2 dB 28.2 dB 0 dB 0 dB 14.2 dB 11.2 dB 18 dB 100 ± 20 Ohm
310 MHz 41.3 dB/100m 27.9 dB 27.9 dB 13.9 dB 10.9 dB 18 dB 100 ± 20 Ohm
350 MHz 44.3 dB/100m 27.2 dB 27.2 dB 12.9 dB 9.9 dB 17 dB 100 ± 22 Ohm
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Installation Temp Range

-55°C To +150°C

UL Temp Rating

150°C

Storage Temp Range

-70°C To +150°C

Operating Temp Range

-70°C To +150°C

Mechanical Characteristics

Bulk Cable Weight

34 lbs/1000ft

Max. Pull Tension

40 lbs

Standards

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

ISO/IEC Compliance

ISO/IEC 11801 ed 2.1 (2008) Class D

TIA/EIA Compliance

Category 5e - TIA 568.2-D

Other Specification

NEMA WC-63.1 Category 5e, Ethernet/IP™ Compliant

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

NFPA 262,UL723 (NFPA 255)

CSA Flammability

FT6

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

History

Update and Revision

Revision Number: 0.102 Revision Date: 09-08-2021
