IEA001

DataTuff® 6A, 4 Bonded-Pr #23 Sol BC, PP Ins, PVC Jkt, CMR

...

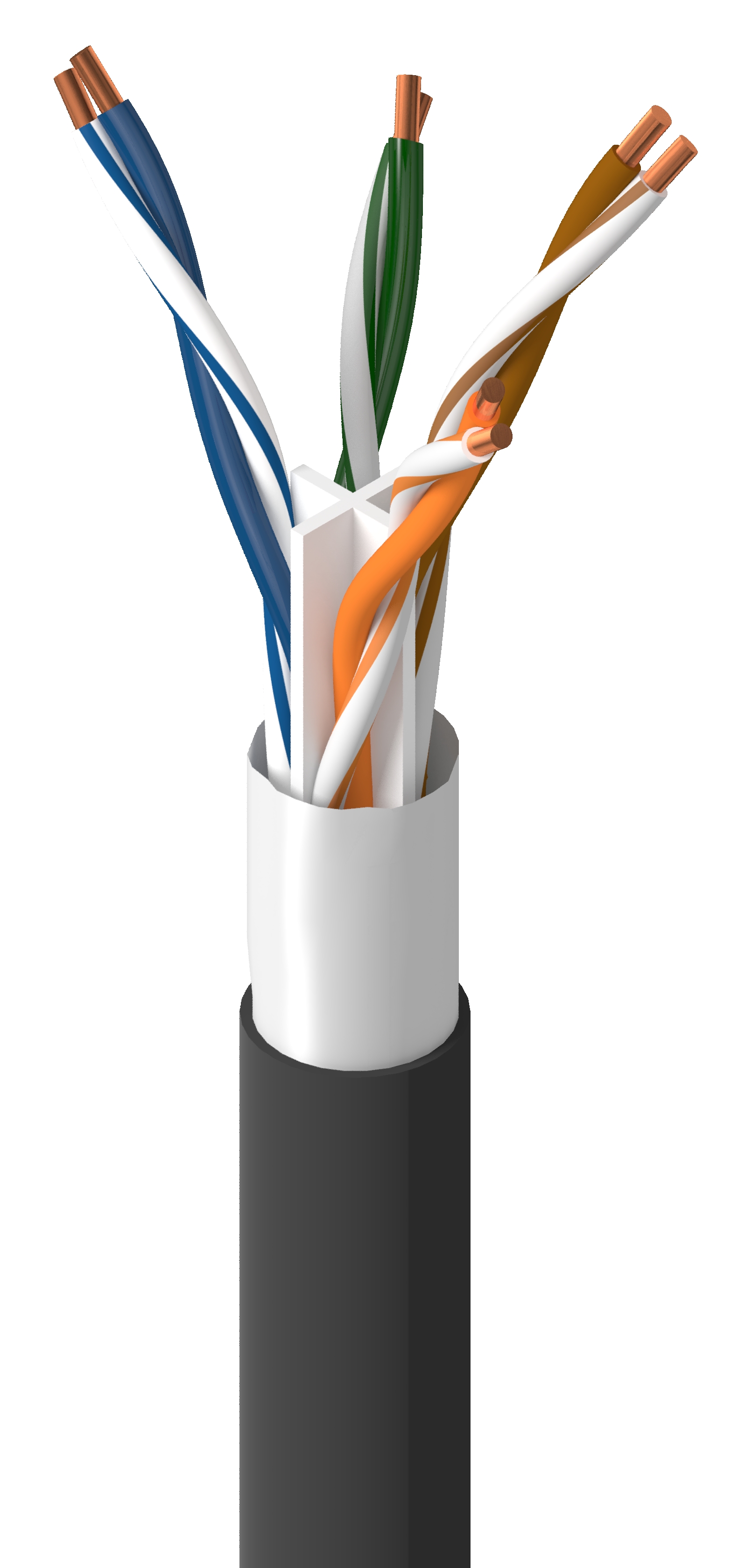

4 Bonded-Pair, U/UTP-Unshielded, Category 6A, Riser, 23 AWG Solid Bare Copper, PP Insulation, Patented X-Spline & EquiBlock™ Technologies, PVC Jacket, Sequential Markings at 2 Feet
Get Product Alerts
Specifications
Product Overview

Suitable Applications

exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material
PO - Polyolefin

Bonded-Pair

Yes

Color Chart
Color
White & Blue
White & Orange
White & Green
White & Brown
Outer Shield
Type
Tape
Outer Jacket
Material Nominal Diameter Ripcord Separator Material
PVC - Polyvinyl Chloride 0.305 in Yes Center Member (Patented X-Spline®), EquiBlock™ Barrier Technology
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max. DCR Unbalance Max DCR Unbalanced Between Pairs [%]
82 Ohm/km 3 % 5 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
45 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 45 ns/100m 65%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 74.3 dB 72.3 dB 72.2 dB 70.2 dB 67.8 dB 64.8 dB 20.0 dB 105 +/- 10 115 +/- 15 67.0 dB 67.0 dB 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 65.3 dB 63.3 dB 61.5 dB 59.5 dB 55.8 dB 52.8 dB 23.0 dB 105 +/- 10 100 +/- 7 67.0 dB 66.2 dB 40.0 dB 23.0 dB
8 MHz 5.3 dB/100m 60.8 dB 58.8 dB 55.4 dB 53.4 dB 49.7 dB 46.7 dB 24.5 dB 100 +/- 22 100 +/- 7 67.0 dB 60.1 dB 40.0 dB 16.9 dB
10 MHz 5.9 dB/100m 59.3 dB 57.3 dB 53.4 dB 51.4 dB 47.8 dB 44.8 dB 25.0 dB 100 +/- 22 100 +/- 7 67.0 dB 58.2 dB 40.0 dB 15.0 dB
16 MHz 7.5 dB/100m 56.2 dB 54.2 dB 48.8 dB 46.8 dB 43.7 dB 40.7 dB 25.0 dB 100 +/- 22 100 +/- 7 67.0 dB 54.1 dB 38.0 dB 10.9 dB
20 MHz 8.4 dB/100m 54.8 dB 52.8 dB 46.4 dB 44.4 dB 41.8 dB 38.8 dB 25.0 dB 100 +/- 22 100 +/- 7 67.0 dB 52.2 dB 37.0 dB 9.0 dB
25 MHz 9.4 dB/100m 53.3 dB 51.3 dB 44.0 dB 42.0 dB 39.8 dB 36.8 dB 24.3 dB 100 +/- 22 100 +/- 7 67.0 dB 50.2 dB 36.0 dB 7.0 dB
31.25 MHz 10.5 dB/100m 51.9 dB 49.9 dB 41.4 dB 39.4 dB 37.9 dB 34.9 dB 23.6 dB 100 +/- 22 100 +/- 7 67.0 dB 48.3 dB 35.1 dB 5.1 dB
62.5 MHz 15.0 dB/100m 47.4 dB 45.4 dB 32.4 dB 30.4 dB 31.9 dB 28.9 dB 21.5 dB 100 +/- 22 100 +/- 7 65.6 dB 42.3 dB 32.0 dB
100 MHz 19.1 dB/100m 44.3 dB 42.3 dB 25.2 dB 23.2 dB 27.8 dB 24.8 dB 20.1 dB 100 +/- 22 100 +/- 7 62.5 dB 38.2 dB 30.0 dB
200 MHz 27.6 dB/100m 39.8 dB 37.8 dB 12.2 dB 10.2 dB 21.8 dB 18.8 dB 18.0 dB 100 +/- 22 100 +/- 7 58.0 dB 32.2 dB 27.0 dB
250 MHz 31.1 dB/100m 38.3 dB 36.3 dB 7.3 dB 5.3 dB 19.8 dB 16.8 dB 17.3 dB 100 +/- 32 100 +/- 7 56.5 dB 30.2 dB 26.0 dB
300 MHz 34.3 dB/100m 37.1 dB 35.1 dB 2.9 dB 0.9 dB 18.3 dB 15.3 dB 16.8 dB 100 +/- 32 100 +/- 7 55.3 dB 28.7 dB 25.2 dB
350 MHz 37.2 dB/100m 36.1 dB 34.1 dB 16.9 dB 13.9 dB 16.3 dB 100 +/- 32 100 +/- 7 54.3 dB 27.3 dB 24.6 dB
400 MHz 40.1 dB/100m 35.3 dB 33.3 dB 15.8 dB 12.8 dB 15.9 dB 100 +/- 32 100 +/- 7 53.5 dB 26.2 dB 24.0 dB
450 MHz 42.7 dB/100m 34.5 dB 32.5 dB 14.7 dB 11.7 dB 15.5 dB 100 +/- 32 100 +/- 7 52.7 dB 25.1 dB 23.5 dB
500 MHz 45.3 dB/100m 33.8 dB 31.8 dB 13.8 dB 10.8 dB 15.2 dB 100 +/- 32 100 +/- 7 52.0 dB 24.2 dB 23.0 dB

Segregation class according EN50174-2

a

Voltage
Non-UL Voltage Rating
300 V
Temperature Range

Installation Temp Range

-40°C To +60°C

Storage Temp Range

-40°C To +75°C

Operating Temp Range

-40°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

39 lbs/1000ft

Max. Pull Tension

40 lbs

Min. Bend Radius During Installation

3.5 in

Standards

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

CPR Euroclass

Fca

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6A

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU CE Mark

No

EU REACH SVHC Compliance (yyyy-mm-dd)

2020-01-16

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Aerial

No

Suitability - Burial

No

Suitability - Hazardous Locations

No

Suitability - Indoor

Yes

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

Yes

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

CMR

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Not Suitable for Direct Burial. Belden recommends using an entrance demarcation point when transitioning inside buildings with gel-filled OSP cables due to the cable design containing gel specific for wet outdoor environments. The suggested transition point is the REVConnect core coupler, part number RVACPKUBK-S1.

History

Update and Revision

Revision Number: 0.104 Revision Date: 09-08-2021
