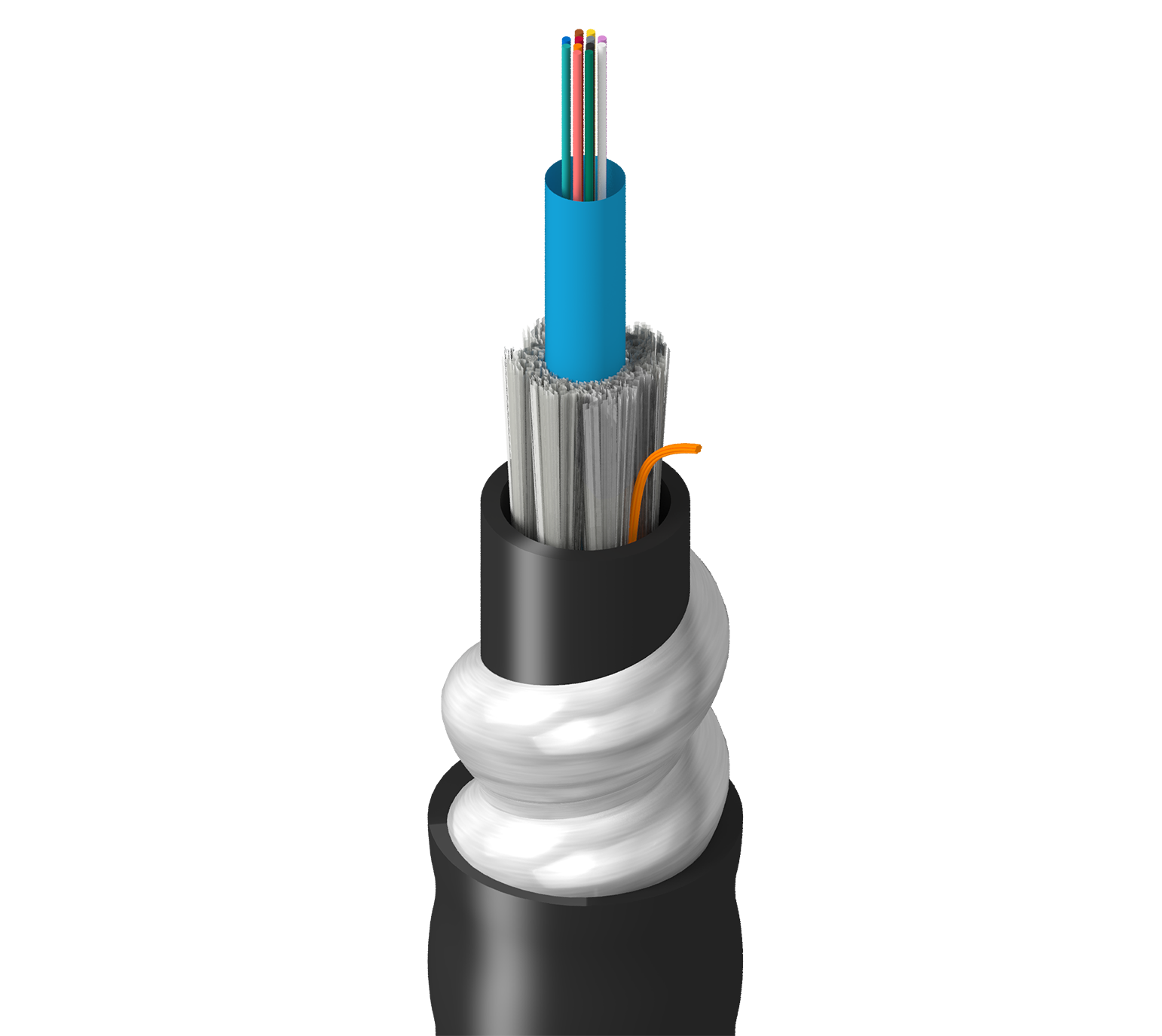

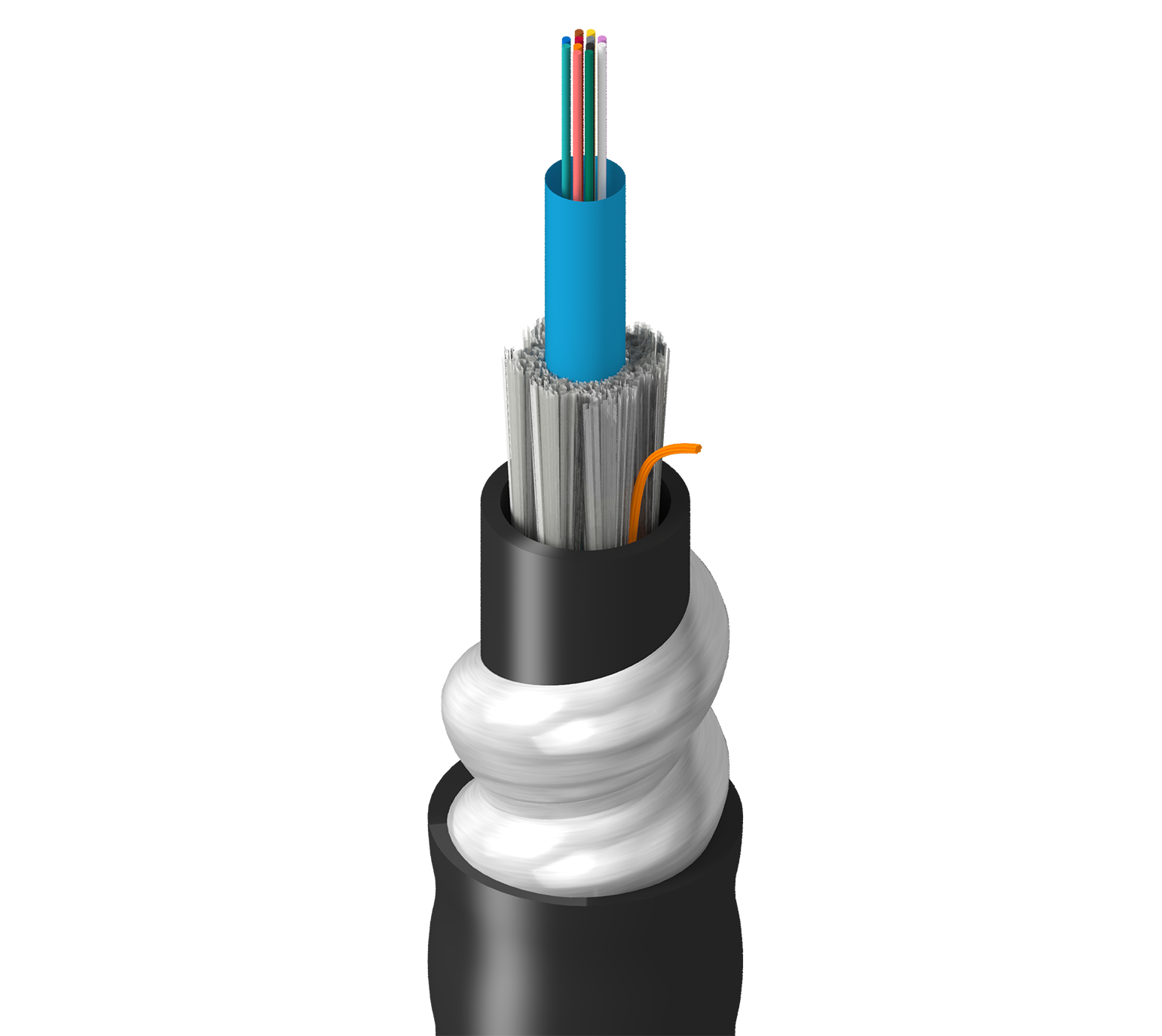

Fiber Central Loose Tube Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof
Fiber Core Diameter
Fiber Color Coding
Number of Active Subunits
Fibers Per Subunit
Waterblocking Fiberglass Yarns
PVC - Polyvinyl Chloride
0.315 in (8.0 mm)
Armor Type and Material
AIA - Aluminum Interlock Armor
0.615 in (15.6 mm)
Min. Bend Radius During Installation
20x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
2670 N (600 lbf)
Max. Tensile Strength During Operation
800 N (180 lbf)
Bulk Cable Weight
152 lbs/kft (226 kg/km)
Installation Temperature Range
-10°C to +60°C
Operating Temperature Range
-40°C to +70°C
Storage Temperature Range
Indoor/Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire
Ozone, Hydraulic fluid resistant
Update and Revision
Revision Number: 0.16 Revision Date: 07-14-2022
