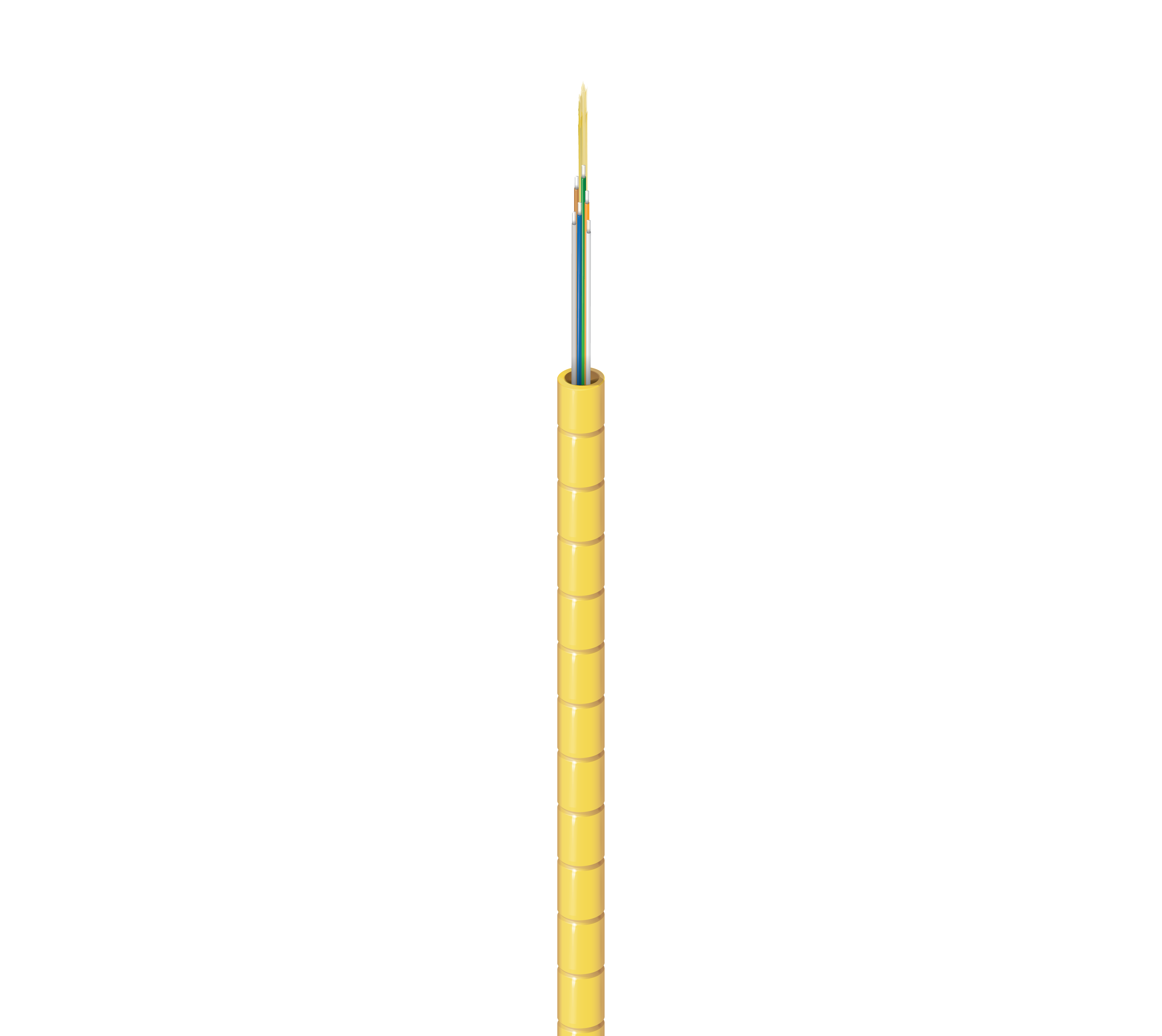

FISX006W0

Indoor Plenum OS2 OptiTuff™ Mini Fiber Cable 6 Fibers

...
FX Indoor OS2 OptiTuff™ Mini Fiber Cable 6 Fibers OFNP Non-Unitized Yellow Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Product Category

OptiTuff™ Mini Fiber Cable

Suitable Applications

Raised floor, Data Centers, POL/POLAN, FTTx

Fiber Specifications

Fiber Type

OS2

Fiber Core Diameter

8.2/125 µm

Fiber Diameter

250 µm

Fiber Count

6

Fiber Color Coding

TIA-598-D

Armor Specifications

Armor Type and Material

ADA - All-Dielectric Armor

Outer Jacket Specifications

Strength Member

Aramid Yarns

Jacket Material

PVDF - Polyvinylidene Fluoride

Nom. Diameter

0.157 in (4.0 mm)

Color

Yellow

Optical Characteristics
Wavelength 1310 nm 1550 nm
Max. Attenuation 0.40 dB/km 0.30 dB/km
Mode Field Diameter 9.2 µm 10.4 µm
1 Gigabit Ethernet Performance 5,000 m --
10 Gigabit Ethernet Performance 10,000 m 40,000 m
Mechanical Characteristics

Min. Bend Radius During Installation

3.75x Cable OD

Min. Bend Radius During Operation

3.75x Cable OD

Max. Tensile Strength During Installation

100 N (25 lbf)

Max. Tensile Strength During Operation

45 N (10 lbf)

Crush Resistance

220 N/cm

Crush Resistance (Recoverable Signal <lt/> +0.5 dB)

2500 N/cm

Bulk Cable Weight

8 lbs/kft (12 kg/km)

Temperature Range

Installation Temperature Range

-10°C to +60°C

Operating Temperature Range

-20°C to +70°C

Storage Temperature Range

-40°C to +70°C

Standards and Compliance

Environmental Suitability

Indoor, Sunlight Resistance

Flammability / Reaction to Fire

OFNP, FT6

ICEA Compliance

S-83-596

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.99 Revision Date: 10-05-2023
