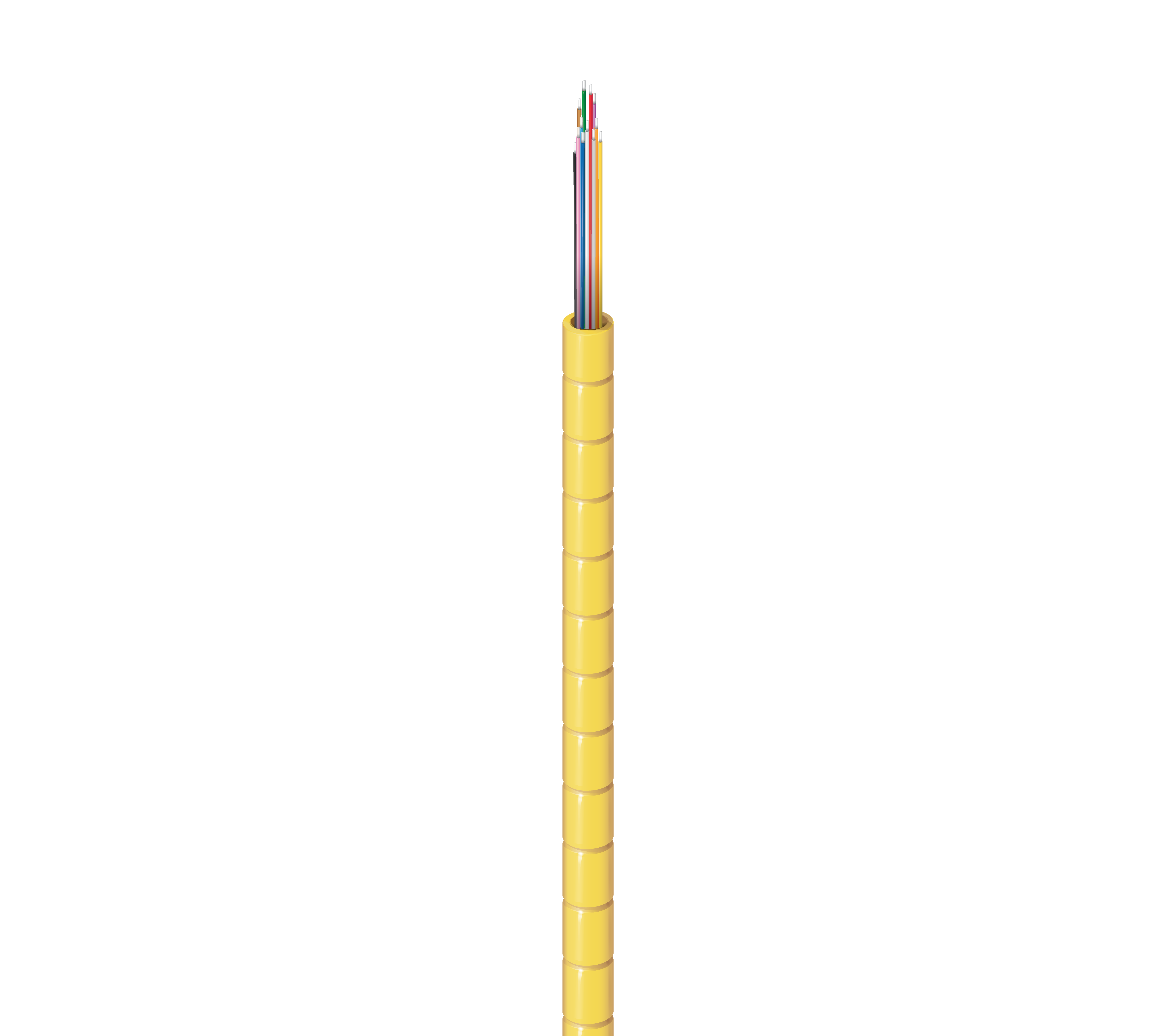

Product Number: FISX012W0

Indoor OptiTuff™ Mini Fiber OS2 12 Fibers OFNP Non-Unitized

FX Indoor, OptiTuff™ Mini Fiber, OS2, 12 Fibers, OFNP, Non-Unitized, Yellow Jacket

  • Availability:
    Americas
  • Status:
    Active
FISX012W0
5 of 5

Specifications

Expand All

Product Category

OptiTuff™ Mini Fiber Cable

Suitable Applications

Raised floor, Data Centers, POL/POLAN, FTTx

Fiber Type

OS2, G.657.A1, G.652.D

Fiber Diameter

250 µm

Fiber Count

12

Fiber Color Coding

TIA-598-D

Armor Type and Material

ADA - All-Dielectric Armor

Strength Member

Aramid Yarns

Jacket Material

PVDF - Polyvinylidene Fluoride

Nom. Diameter

0.156 in (4.0 mm)

Outer Jacket Color

Yellow

Optical Characteristics

Wavelength 1310 nm 1550 nm
Max. Attenuation 0.40 dB/km 0.30 dB/km
10 Gigabit Ethernet Performance 10,000 m 50,000 m
40 Gigabit Ethernet Performance 10,000 m --
100 Gigabit Ethernet Performance 10,000 m --

Minimum Bend Radius During Installation

3.75x Cable OD

Minimum Bend Radius During Operation

3.75x Cable OD

Max. Tensile Strength During Installation

100 N (25 lbf)

Max. Tensile Strength During Operation

45 N (10 lbf)

Crush Resistance

220 N/cm

Crush Resistance (Recoverable Signal <lt/> +0.5 dB)

2500 N/cm

Bulk Cable Weight

8 lbs/kft (12 kg/km)

Installation Temperature Range

-10°C to +60°C

Operating Temperature Range

-20°C to +70°C

Storage Temperature Range

-40°C to +70°C

Environmental Suitability

Indoor

Flammability / Reaction to Fire

NFPA 262

NEC / UL Compliance

OFNP

CEC / C(UL) Compliance

FT6

ICEA Compliance

S-83-596

TIA/EIA Compliance

568.3, 598-D

Telcordia Compliance

GR-409

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment)

Update and Revision

Revision Number: 0.205 Revision Date: 05-05-2026

Update and Revision

Revision Number: 0.205 Revision Date: 05-05-2026


Report An Error

Part Numbers

Item # Color Putup Type
FISX012W0 Yellow Reel
