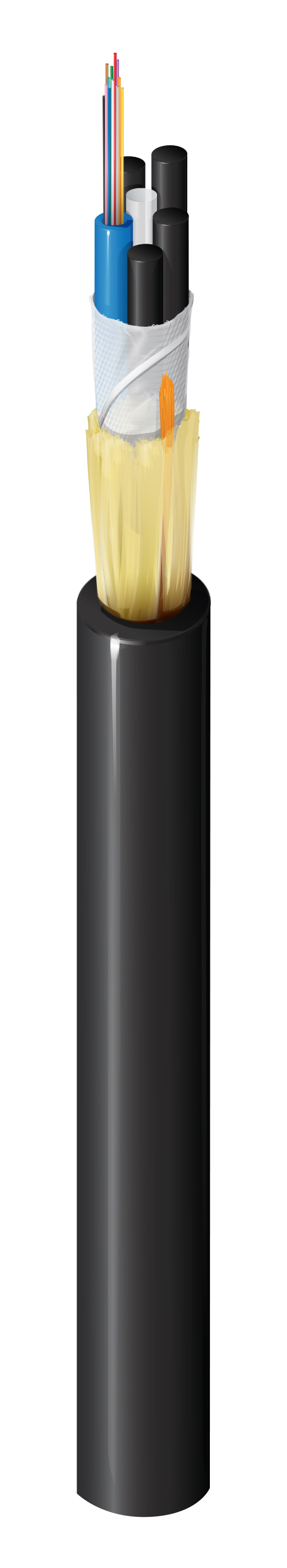

Product Number: FSSL012ND
Loose Tube OS2 12F OSP Unitized
FX Outdoor Loose Tube OS2 12 Fibers OSP Sub-Units(12F) Dry Black
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Campus Area Network, Long Haul, Backbone |
|---|
Fiber Specifications
|
Fiber Type |
OS2 |
|---|---|
|
Fiber Core Diameter |
8.2/125 µm |
|
Fiber Diameter |
250 µm |
|
Fiber Count |
12 |
|
Fiber Color Coding |
TIA-598-D |
Cable Construction
|
Number of Active Subunits |
1 |
|---|---|
|
Number of Fillers |
4 |
|
Fibers Per Subunit |
12 |
|
Subunit Waterblocking |
Gel Free |
|
Subunit Diameter |
0.098 in (2.5 mm) |
|
Subunit Color |
TIA-598-D |
|
Central Strength Member |
GRP |
|
Cable Core Waterblocking |
Waterblock Tape |
Inner Jacket Specifications
|
Material |
PE - Polyethylene |
|---|
Outer Jacket Specifications
|
Strength Member |
Waterblocking Fiberglass Yarns |
|---|---|
|
Jacket Material |
PE - Polyethylene |
|
Nom. Diameter |
0.386 in (9.8 mm) |
|
Color |
Black |
|
Number of Ripcords |
1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.35 dB/km | 0.25 dB/km |
| Mode Field Diameter | 9.2 µm | 10.4 µm |
| 1 Gigabit Ethernet Performance | 5,000 m | -- |
| 10 Gigabit Ethernet Performance | 10,000 m | 40,000 m |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
2670 N (600 lbf) |
|
Max. Tensile Strength During Operation |
800 N (180 lbf) |
|
Crush Resistance |
220 N/cm |
|
Bulk Cable Weight |
59 lbs/kft (88 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
-30°C to +60°C |
|---|---|
|
Operating Temperature Range |
-40°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Outdoor, Sunlight Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
ICEA Compliance |
S-87-640 |
|
TIA/EIA Compliance |
ANSI/ICEA S-87-640 |
|
Telcordia Compliance |
Telcordia GR-20 |
History
|
Update and Revision |
Revision Number: 0.70 Revision Date: 11-09-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.70 Revision Date: 11-09-2022 |
|---|
Part Numbers
| Item # | Color | Putup Type | UPC |
|---|---|---|---|
| FSSL012ND | Black | Reel | 612825399117 |
