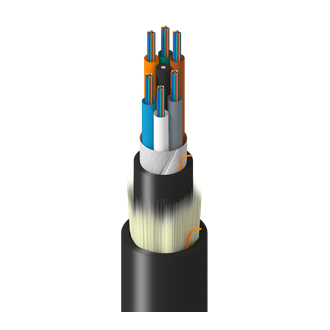

Fiber Multi-Loose Tube Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations
Fiber Core Diameter
Fiber Color Coding
Number of Active Subunits
Fibers Per Subunit
0.110 in (2.8 mm)
Central Strength Member
PVC - Polyvinyl Chloride
0.406 in (10.3 mm)
0.541 in (13.7 mm)
Min. Bend Radius During Installation
15x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
2670 N (600
Max. Tensile Strength During Operation
800 N (180 lbf)
Bulk Cable Weight
126 lbs/kft (188 kg/km)
Installation Temp Range
-10°C to +60°C
Operating Temp Range
-50°C to +70°C
Storage Temp Range
Indoor/Outdoor, Sunlight Resistance, Oil Resistance
CA Prop 65
Flammability / Reaction to Fire
Update and Revision
Revision Number: 0.17 Revision Date: 12-15-2021
