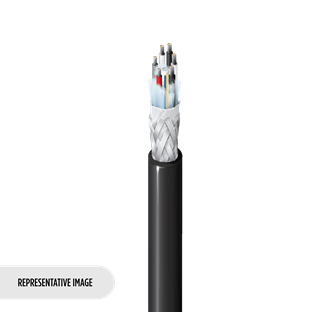

Indoor/Outdoor Stadium Cable, 3-Channel SMPTE, 6 Fiber, 6 Conductor 18 AWG, 6 Conductor 24 AWG, CPE Jacket
|
Suitable Applications |
3 Channel Composite Camera Cable |
|---|
| Element | No. of Conductors | AWG | Stranding | Material | Nominal Conductor DCR | Insulation Material | Insulation Nominal Diameter |
|---|---|---|---|---|---|---|---|
| Quad 1, Quad 2, Quad 3 | 6 | 24 | 7x32 | TC - Tinned Copper | 23.3 Ohm/1000ft | PVC - Polyvinyl Chloride | 0.038 in |
| Quad 1, Quad 2, Quad 3 | 6 | 18 | 19x30 | TC - Tinned Copper | 6.67 Ohm/1000ft | PVC - Polyvinyl Chloride | 0.080 in |
| Description | Color |
|---|---|
| Quad 1 - 24AWG | Red |
| Quad 1 - 24AWG | Gray |
| Quad 1 - 18AWG | White |
| Quad 1 - 18AWG | Black |
| Quad 2 - 24AWG | Red/Yellow |
| Quad 2 - 24AWG | Gray/Yellow |
| Quad 2 - 18AWG | White/Yellow |
| Quad 2 - 18AWG | Black/Yellow |
| Quad 3 - 24AWG | Red/Orange |
| Quad 3 - 24AWG | Gray/Orange |
| Quad 3 - 18AWG | White/Orange |
| Quad 3 - 18AWG | Black/Orange |
| Layer | Inner Shield Type | Inner Shield Material | Inner Shield Coverage | Drainwire AWG | Drainwire Stranding | Drainwire Material | Drainwire Position |
|---|---|---|---|---|---|---|---|
| Each Quad | Tape | Al/poly (Foil in) | 100 % | 22 | 7x30 | TC - Tinned Copper | Under Each Quad's Shield Tape |
| UL Description | UL Voltage Rating |
|---|---|
| 24 AWG | 300 V RMS |
| 18 AWG | 300 V RMS |
| Fiber Type | Fiber Count |
|---|---|
| OS2, G.657.A2 | 6 |
|
Fiber Color Coding |
Yellow Printed |
|---|
| Buffer Material | Buffer Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 900 µm |
|
Number of Active Subunits |
6 |
|---|---|
|
Number of Subunit Positions |
6 |
|
Fibers Per Subunit |
1 |
|
Mode Field Diameter |
9.2 µm |
|
Wavelength@Optical SM1 |
1310 nm, 1550 nm |
|
Max. Attenuation at 1310 nm |
0.50 dB/km |
|
Max. Attenuation at 1550 nm |
0.50 dB/km |
|
Conductor Material: |
Tinned Copper |
|---|
|
Jacket |
CPE |
|---|---|
|
Nominal Diameter@OuterJacket1 1_CP_OV |
0.555 in |
|
Operating Temperature Range |
-40°C to 70°C |
|
Installation Temperature Range |
-10°C to 70°C |
|
Storage Temperature Range |
-40°C to 70°C |
|
Max. Pull Tension |
2700 N |
|
Bulk Cable Weight |
134 lbs/1000ft |
|
NEC/(UL) Compliance |
CMR |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
CA Prop 65 (CJ for Wire and Cable) |
Yes |
|
China RoHS II (GB/T 26572-2011) |
Yes |
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
|
UL Flammability |
UL1666 Vertical Shaft |
|---|
|
Plenum (Y/N) |
No |
|---|
|
Notes |
Copper conductor quads are individually shielded with individual drain wire |
|---|
|
Update and Revision |
Revision Number: 0.145 Revision Date: 11-27-2023 |
|---|
| Item # | Color | UPC | Length |
|---|---|---|---|
| 2824RW 005CUT | Green | ||
| 2824RW 0051000 | Green, Dark | 612825400066 | 1,000 ft |
| 2824RW 0055000 | Green, Dark | 612825400073 | 5,000 ft |
