3076F

Fieldbus, 1 Pr #18 Str TC, PP Ins, OS, PVC Jkt, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM

...

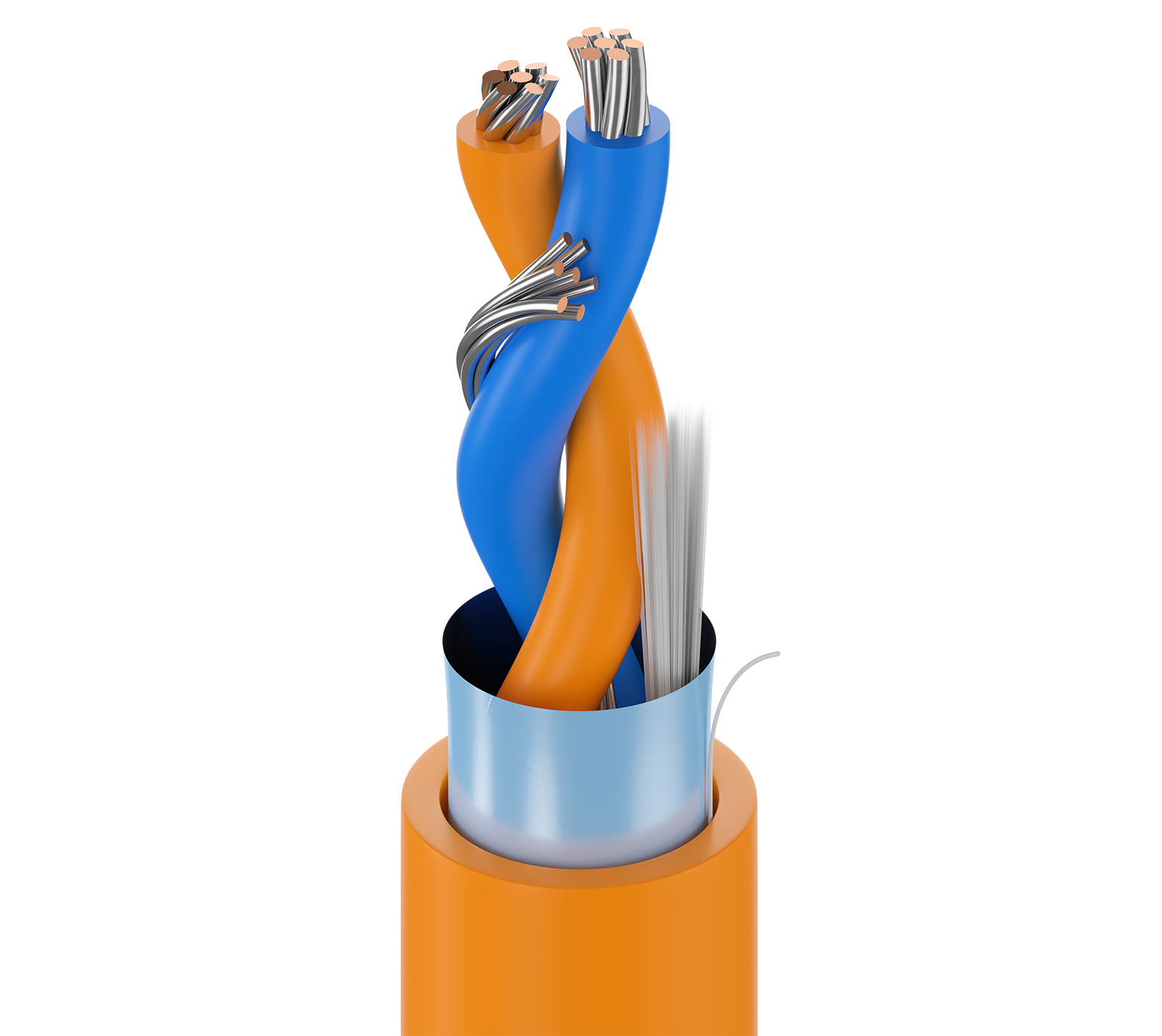

Fieldbus, 1 Pair 18AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

exposure to rodent, crush, or cut through force, harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details
Conductor
Element Number of Element Size Stranding Material
Pair(s) 1 18 AWG 7x26 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP - Polypropylene 0.022 in (0.56 mm) 0.088 in (2.2 mm) Blue & Orange
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7x28) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.050 in (1.3 mm) 0.280 in (7.11 mm)

Table Notes

Jacket OD +/- 0.010

Overall Cable Diameter (Nominal)

0.280 in (7.11 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Max. Capacitance Unbalance Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 7.2 Ohm/1000ft 1.2 pF/ft (3.9 pF/m) 45 pF/ft 100 Ohm 66% 5.2 Amps per Conductor at 25ºC

Nom. Outer Shield DCR

8.5 Ohm/1000ft (28 Ohm/km)

High Frequency (Nominal/Typical)
Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 0.039 0.08 dB/100ft
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Max./Min. Input Impedance (unFitted) [Ohm]
0.031 0.091 dB/100ft 100
Voltage
UL Voltage Rating
300 V (CM, PLTC-ER), 150 V (ITC-ER)
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -40°C to +105°C
Bend Radius
Stationary Min. Installation Min.
6.5 in (170 mm) 6.5 in (170 mm)

Max. Pull Tension

60 lbs (27 kg)

Bulk Cable Weight

44 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance, Burial

Flammability / Reaction to Fire

UL 1685 UL Loading, FT4, FT4, IEEE 1202, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 727, Article 800, CMG, ITC, PLTC, TC

CEC / C(UL) Compliance

CMG

ISO/IEC Compliance

IEC 61158-2

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Other Standard Compliance(s)

ISA/SP-50 Type A

Product Notes

Notes

Fieldbus: Orange jacket. Profibus PA: Intrinsically Safe Blue jacket. Jacket diameter tolerance: +/- .010

History

Update and Revision

Revision Number: 0.485 Revision Date: 08-09-2022

Part Numbers
Item # Color Putup Type Length UPC
3076F 0061000 Blue, Light Reel 1,000 ft 612825140269
3076F 00310000 Orange 612825140214
3076F 003250 Orange Reel 250 ft 612825140221
3076F 003500 Orange Reel 500 ft 612825140245
3076F 0031000 Orange Reel 1,000 ft 612825140207
3076F 0032500 Orange Reel 2,500 ft 612825140238
3076F 0035000 Orange Reel 5,000 ft 612825140252
