Product Number: 9842LS

RS-485, 2 Pr #24 Str TC, PO ins, F/B, LSNH Jkt, 300V, SWA, Eca

RS-485, 2 Pair 24AWG Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, LSZH / FRNC jacket , 300V, SWA, CPR Eca

  • Availability:
    Global
  • Status:
    Active

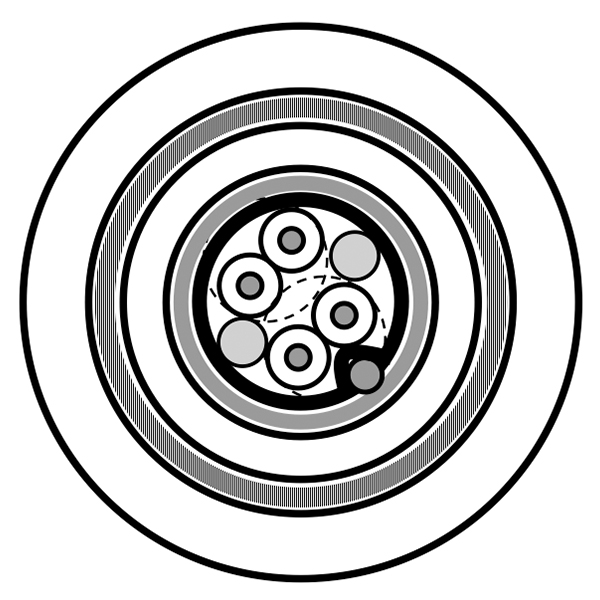

9842LS
  • 9842LS
1 of 1

Specifications

Expand All

Suitable Applications

RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 2 24 AWG 7x32 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PE - Polyethylene 0.56 mm (0.022 in) 1.73 mm (0.0681 in) White/Blue & Blue/White, White/Orange & Orange/White

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Braid Tinned Copper (TC) 90%

Inner Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.1 mm (0.043 in) 8.65 mm (0.341 in)

Armor

Armor Type & Material Armor Thickness Coverage
SWA - Steel Wire Armor 0.9 mm (0.035 in) Min. 95%

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.35 mm (0.0531 in) 13.1 mm (0.516 in)

Overall Cable Diameter (Nominal)

13.1 mm (0.516 in)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 78.7 Ohm/km (24.0 Ohm/1000ft) 42 pF/m (13 pF/ft) 75.5 pF/m 120 Ohm 66% 2.1 Amps per Conductor

Nom. Outer Shield DCR

7.2 Ohm/km (2.2 Ohm/1000ft)

High Frequency (Nominal/Typical)

Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 1 1.97 dB/100m

Voltage

Voltage Rating
300 V

Temperature

Operating Installation Storage
-45°C To +80°C -15°C To +80°C -45°C To +80°C

Bend Radius

Stationary Min. Installation Min.
130 mm (5.1 in) 196 mm (7.72 in)

Max. Pull Tension

500 N (110 lbf)

Bulk Cable Weight

322 kg/km (216 lbs/1000ft)

Environmental Suitability

Indoor<multisep/>Indoor/Outdoor<multisep/>Outdoor<multisep/>Indoor/Outdoor - Euroclass Eca, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Eca

ISO/IEC Compliance

IEC 61034-2 - Smoke Density Min Transmittance = 60%

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark

UK Regulation Compliance

UKCA Mark

Other Standard Compliance(s)

DMX-512

Update and Revision

Revision Number: 0.256 Revision Date: 04-07-2025

Update and Revision

Revision Number: 0.256 Revision Date: 04-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
9842LS.00152 Black Reel 152 m 8719605023094
9842LS.00500 Black Reel 500 m 8719605023124
9842LS.01500 Black Reel 500 m 8719605023162
9842LS.001000 Black Reel 1,000 m 8719605023056
9842LS.011000 Black Reel 1,000 m 8719605023131
9842LS.001200 Black Reel 1,200 m 8719605023063
9842LS.001280 Black Reel 1,280 m 8719605023070
9842LS.001500 Black Reel 1,500 m 8719605023087
9842LS.011500 Black Reel 1,500 m 8719605023148
9842LS.002000 Black Reel 2,000 m 8719605023100
9842LS.012000 Black Reel 2,000 m 8719605023155
9842LS.002600 Black Reel 2,600 m 8719605023117
9842LS.02500 Green Reel 500 m 8719605023186
9842LS.03500 Green Reel 500 m 8719605023193
9842LS.021000 Green Reel 1,000 m 8719605023179
