7116W

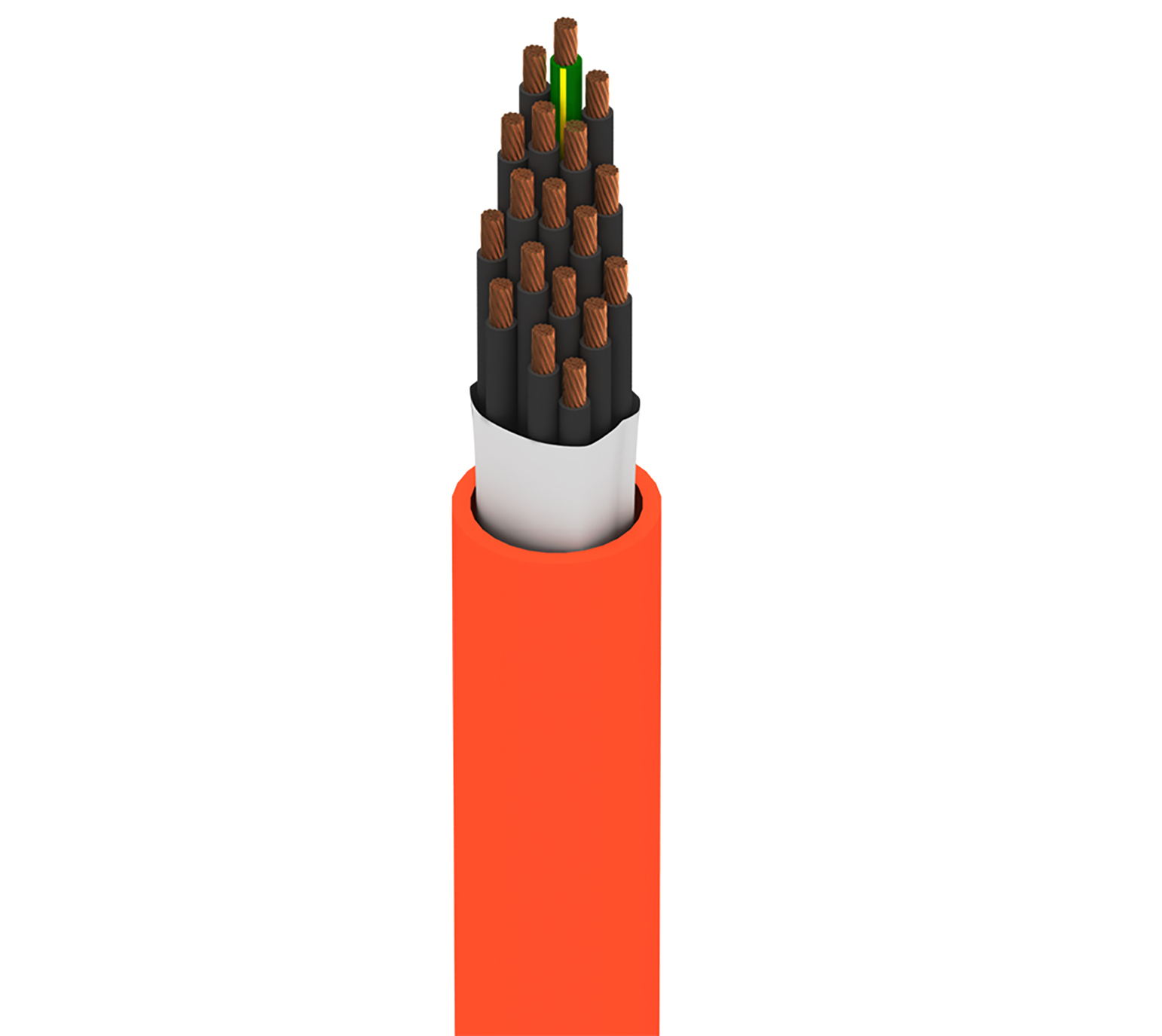

MachFlex™, 17+1G C #18 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER

...
MachFlex™ for High Flex, 17+1G Conductor 18AWG (105x38) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
Request Sample Get Product Alerts
Specifications
Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material No. of Conductors
18 105x38 BC - Bare Copper 17
Ground Wire 18 105x38 BC - Bare Copper 1

Conductor Count

18

Insulation
Material Nominal Diameter
PVC/Nylon - Polyvinyl Chloride + Nylon 0.089 in
Color Chart
Number Color
1 Black and Numbered 1
2 Black and Numbered 2
3 Black and Numbered 3
4 Black and Numbered 4
5 Black and Numbered 5
6 Black and Numbered 6
7 Black and Numbered 7
8 Black and Numbered 8
9 Black and Numbered 9
10 Black and Numbered 10
11 Black and Numbered 11
12 Black and Numbered 12
13 Black and Numbered 13
14 Black and Numbered 14
15 Black and Numbered 15
16 Black and Numbered 16
17 Black and Numbered 17
18 Green/Yellow
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
TPE - Thermoplastic Elastomer 0.576 in 0.063 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
5.7 Ohm/1000ft
Voltage
UL Voltage Rating
1000 V RMS
600 V RMS
Temperature Range

UL Temp Rating

75°C Dry, 90°C Wet

Other Temp Range

Flexing: -5°C To +90 °C

Mechanical Characteristics

Oil Resistance

Yes

Flex Cycle Rating

10 Million Flexes

Bulk Cable Weight

189 lbs/1000ft

Max. Pull Tension

414 lbs

Min. Bend Radius (Continuous Flexing)

5.8 in

Standards

NEC/(UL) Compliance

TC-ER, WTTC

CEC/C(UL) Compliance

CIC, TC

UL AWM Style Compliance

20328

CSA AWM Compliance

AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

Yes - Oil Res II

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

CSA Flammability

FT4

IEEE Flammability

1202

UL voltage rating

1000 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP.

History

Update and Revision

Revision Number: 0.371 Revision Date: 08-27-2021

Part Numbers
Item # Color Put-Up Type Length UPC
7116W 003250 Orange Reel 250 ft 612825182252
7116W 0035000 Orange Reel 5,000 ft 612825182269
