7129WS

MachFlex™, 24+1G C #16 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, TPE Jkt, 1000V WTTC, 600V TC-ER

...

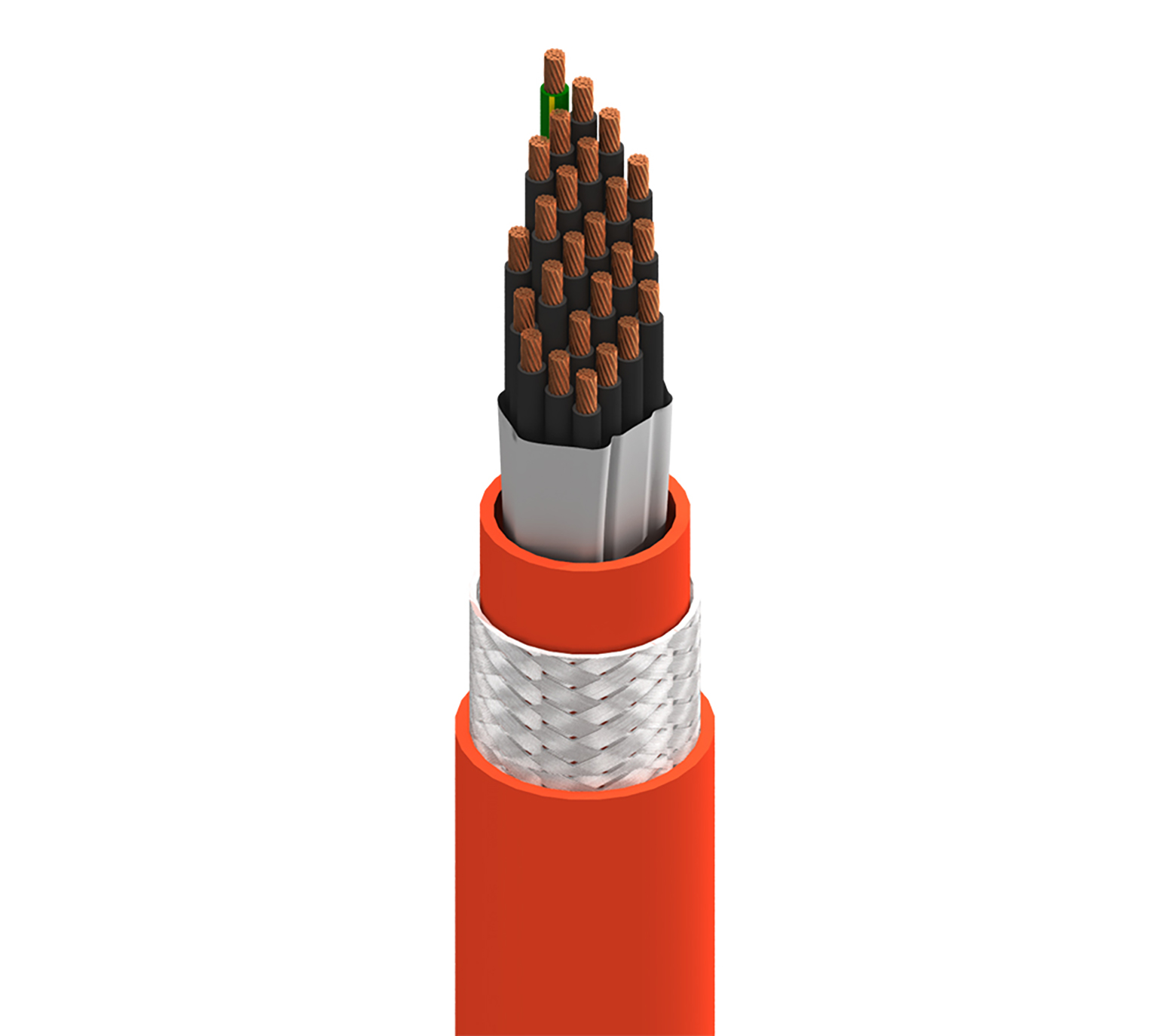

MachFlex™ for High Flex, 24+1G Conductor 16AWG (168(7x24) x38) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Robotics, Robot, Continuous Flex

Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material No. of Conductors
16 168x38 BC - Bare Copper 24
Ground Wire 16 168x38 BC - Bare Copper 1

Conductor Count

25

Insulation
Material Nominal Diameter
PVC/Nylon - Polyvinyl Chloride + Nylon 0.109 in
Color Chart
Number Color
1 Black and Numbered 1
2 Black and Numbered 2
3 Black and Numbered 3
4 Black and Numbered 4
5 Black and Numbered 5
6 Black and Numbered 6
7 Black and Numbered 7
8 Black and Numbered 8
9 Black and Numbered 9
10 Black and Numbered 10
11 Black and Numbered 11
12 Black and Numbered 12
13 Black and Numbered 13
14 Black and Numbered 14
15 Black and Numbered 15
16 Black and Numbered 16
17 Black and Numbered 17
18 Black and Numbered 18
19 Black and Numbered 19
20 Black and Numbered 20
21 Black and Numbered 21
22 Black and Numbered 22
23 Black and Numbered 23
24 Black and Numbered 24
25 Green/Yellow
Inner Jacket
Material Nominal Wall Thickness
TPE - Thermoplastic Elastomer 0.025 in
Outer Shield
Type Material Coverage [%]
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
TPE - Thermoplastic Elastomer 0.918 in 0.083 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
5.7 Ohm/1000ft
Voltage
UL Voltage Rating
1000 V RMS
600 V RMS
Temperature Range

UL Temp Rating

75°C Dry, 90°C Wet

Other Temp Range

Flexing: -5°C To +90 °C

Mechanical Characteristics

Oil Resistance

Yes

UV Resistance

Yes

Flex Cycle Rating

10 Million Flexes

Bulk Cable Weight

513 lbs/1000ft

Max. Pull Tension

950 lbs

Min. Bend Radius (Continuous Flexing)

9.2 in
Standards

NEC/(UL) Compliance

TC-ER, WTTC

CEC/C(UL) Compliance

CIC, TC

UL AWM Style Compliance

AWM 20328

CSA AWM Compliance

AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

Yes - Oil Res II

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

CSA Flammability

FT4

IEEE Flammability

IEEE 1202

UL voltage rating

1000 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.194 Revision Date: 01-10-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
7129WS 003250 Orange Reel 250 ft 612825182481
7129WS 0031000 Orange Reel 1,000 ft 612825182474
7129WS 0035000 Orange Reel 5,000 ft 612825182498
