7401W

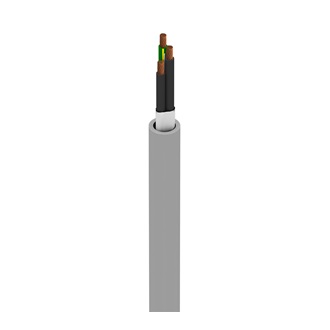

MachFlex™, 2+1G C #20 Str BC, PVC Ins, TPE Jkt, PLTC

...
MachFlex™ for High Flex, 2+1G Conductor 20AWG (19x32) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC
Request Sample Get Product Alerts
Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
20 19x32 BC - Bare Copper 2
20 19x32 BC - Bare Copper 1

Conductor Count

3

Insulation
Material Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.015 in
Color Chart
Number Color
1 Black and Numbered 1
2 Black and Numbered 2
3 Green/Yellow
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
TPE - Thermoplastic Elastomer 0.211 in 0.037 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
8.8 Ohm/1000ft
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

90°C

Operating Temp Range

-40°C (-5°C Flexing) To +90°C

Other Temp Range

Flexing: -5°C To +90 °C

Mechanical Characteristics

Oil Resistance

Yes

Flex Cycle Rating

1 Million Flexes

Bulk Cable Weight

29 lbs/1000ft

Max. Pull Tension

39 lbs

Min. Bend Radius (Continuous Flexing)

2.2 in

Standards

NEC/(UL) Compliance

PLTC

UL AWM Style Compliance

20327

CSA AWM Compliance

AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

Yes - Oil Res II

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

CSA Flammability

FT4

IEEE Flammability

1202

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP.

History

Update and Revision

Revision Number: 0.358 Revision Date: 08-27-2021

Part Numbers
Item # Color Put-Up Type Length UPC
7401W 060250 Chrome Reel 250 ft 612825185284
7401W 0601000 Chrome Reel 1,000 ft 612825185277
7401W 0605000 Chrome Reel 5,000 ft 612825185291
