7416W

MachFlex™, 17C+1G #18 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER

...

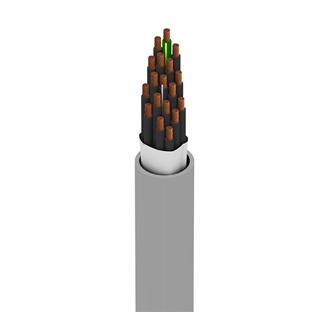

MachFlex™ for High Flex, 17+1G Conductor 18AWG (16x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

C-Track Systems, Automated Assembly systems, Material Handling Systems, Pick and Place Systems,Gantry Systems, Multi-Axis Machining

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 17 18 AWG 16x30 BC - Bare Copper
Ground 1 18 AWG 16x30 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC/Nylon - Polyvinyl Chloride + Nylon 0.021 in (0.53 mm) 0.089 in (2.3 mm) Black and Numbered
Ground PVC/Nylon - Polyvinyl Chloride + Nylon 0.021 in (0.53 mm) Green / Yellow Stripe
Outer Jacket
Material Nom. Thickness Nom. Diameter
TPE - Thermoplastic Elastomer 0.063 in (1.6 mm) 0.576 in (14.6 mm)

Overall Cable Diameter (Nominal)

0.576 in (14.6 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR
Conductor(s) 6.5 Ohm/1000ft (21 Ohm/km)
Ground 6.5 Ohm/1000ft (21 Ohm/km)
Voltage
UL Voltage Rating
1000 V RMS (WTTC), 600 V (TC-ER, UL AWM 20328)
Mechanical Characteristics
Temperature
UL Temperature Operating
90°C Dry, 75°C Wet -40°C to +90°C
Bend Radius
Stationary Min. Installation Min. Flexing Min.
2.3 in (58 mm) 2.3 in (58 mm) 5.8 in (150 mm)

Max. Pull Tension

414 lbs (188 kg)

Bulk Cable Weight

195 lbs/1000ft (290 kg/km)

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL1685 (UL Loading), 1202

NEC / UL Compliance

Article 336, Article 760, TC-ER, WTTC

AWM Compliance

20328, I/II A/B

CEC / C(UL) Compliance

CIC, TC

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.337 Revision Date: 10-27-2021

Part Numbers
Item # Color Putup Type Length UPC
7416W 060250 Chrome Reel 250 ft 612825186007
7416W 0601000 Chrome Reel 1,000 ft 612825185994
