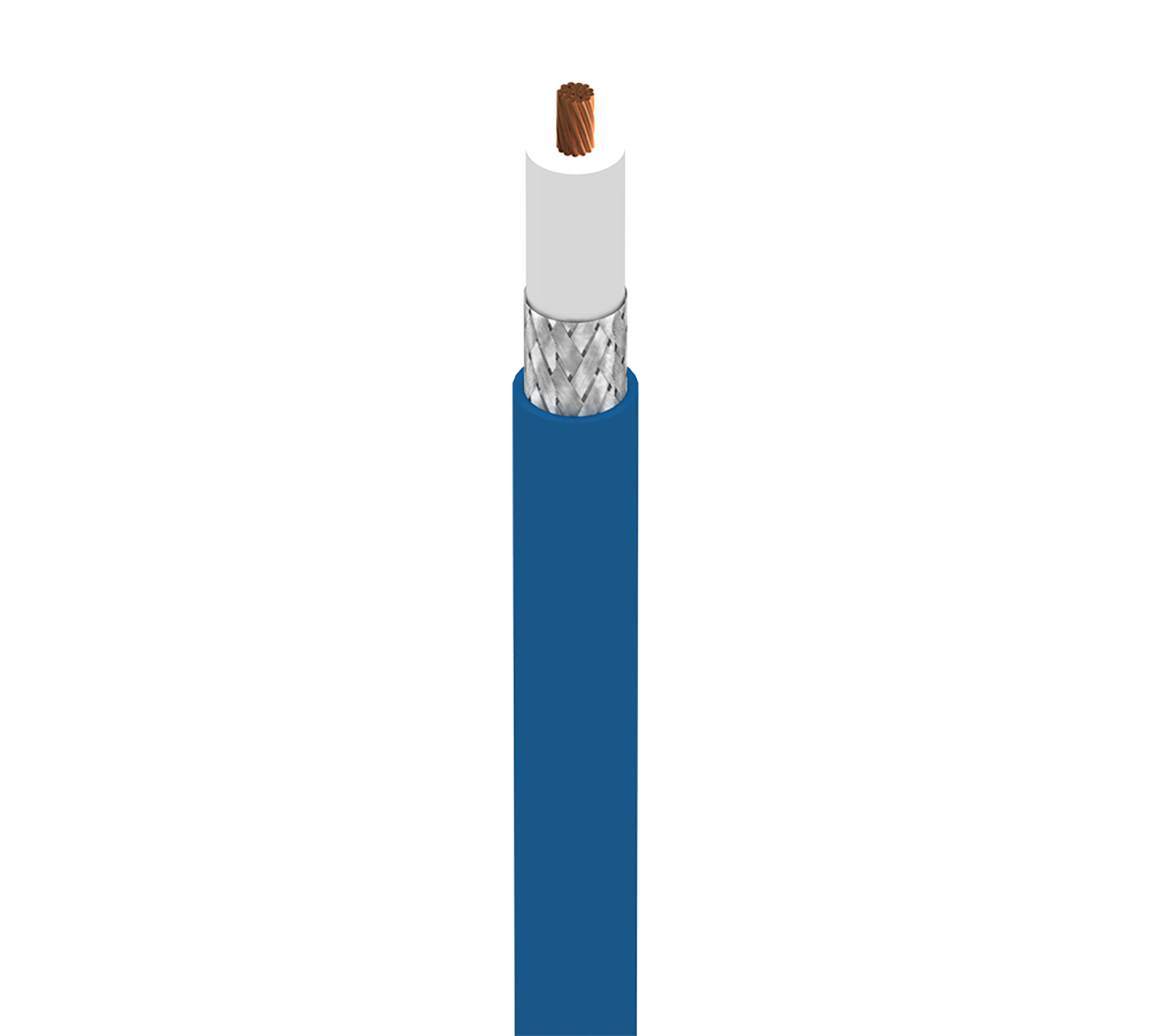

Product Number: 7503A

MachFlex™, Vision Coax 75Ω, #20 Str BC, PO Ins, OA TC Brd, PVC Jkt, AWM 1354

MachFlex™ for High Flex, 1 Conductor 20AWG (105(7x15)x40) Bare Copper, PO Insulation, Overall Tinned Copper Braid(95%) Shield, PVC Outer Jacket, AWM 1354

  • Availability:
    Global
  • Status:
    Active
7503A
  • 7503A
1 of 1

Specifications

Expand All

Conductor

AWG Stranding Material Nominal Diameter No. of Coax
20 7x15x40 BC - Bare Copper 0.04 in 1

Conductor Count

1

Insulation

Material Nominal Diameter
PE - Polyethylene (Foam) 0.185 in

Outer Shield

Type Material Coverage [%]
French Braid Tinned Copper (TC) 95%

Outer Jacket

Material Material Trade Name Nominal Diameter
PVC - Polyvinyl Chloride Belflex® 0.275 in

Conductor DCR

Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
8.1 Ohm/1000ft 11 Ohm/1000ft 11 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Shield
17.3 pF/ft

Inductance

Nominal Inductance
0.097 µH/ft

Impedance

Nominal Characteristic Impedance
75 Ohm

High Frequency (Nominal/Typical)

Frequency [MHz] Nom. Insertion Loss
2.2 MHz 0.3 dB/100ft
5 MHz 0.4 dB/100ft
10 MHz 0.6 dB/100ft
30 MHz 1.1 dB/100ft
50 MHz 1.5 dB/100ft
100 MHz 2.2 dB/100ft

Delay

Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.3 ns/ft 80%

High Frequency

Frequency [MHz]
2.2 MHz
5 MHz
10 MHz
30 MHz
50 MHz
100 MHz

Voltage

UL Voltage Rating
30 V RMS

Non-UL Temp Rating

80°C

Operating Temperature Range

-40°C To +80°C

Bulk Cable Weight

34 lbs/1000ft

Maximum Recommended Pulling Tension

35 lbs

Minimum Continuous Flexing Bend Radius

5.5 in

Minimum Minor Axis Bend Radius

2.75 in

UL AWM Style Compliance

AWM 1354

CSA AWM Compliance

AWM I/II A/B

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

UL voltage rating

30 V RMS

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Update and Revision

Revision Number: 0.394 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.394 Revision Date: 02-03-2025


Report An Error

Part Numbers

Item # Color Put-Up Type Length UPC
7503A G7X500 Blue, Matte Reel 500 ft 612825187325
7503A G7X1000 Blue, Matte Reel 1,000 ft 612825187301
