Product Number: 4000FE

Security & Sound, 2 Conductor 12 AWG BC, LSZH, Shielded, Eca

Security & Commercial Audio Cable, 2-12 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Eca

  • Availability:
    Global
  • Status:
    Active

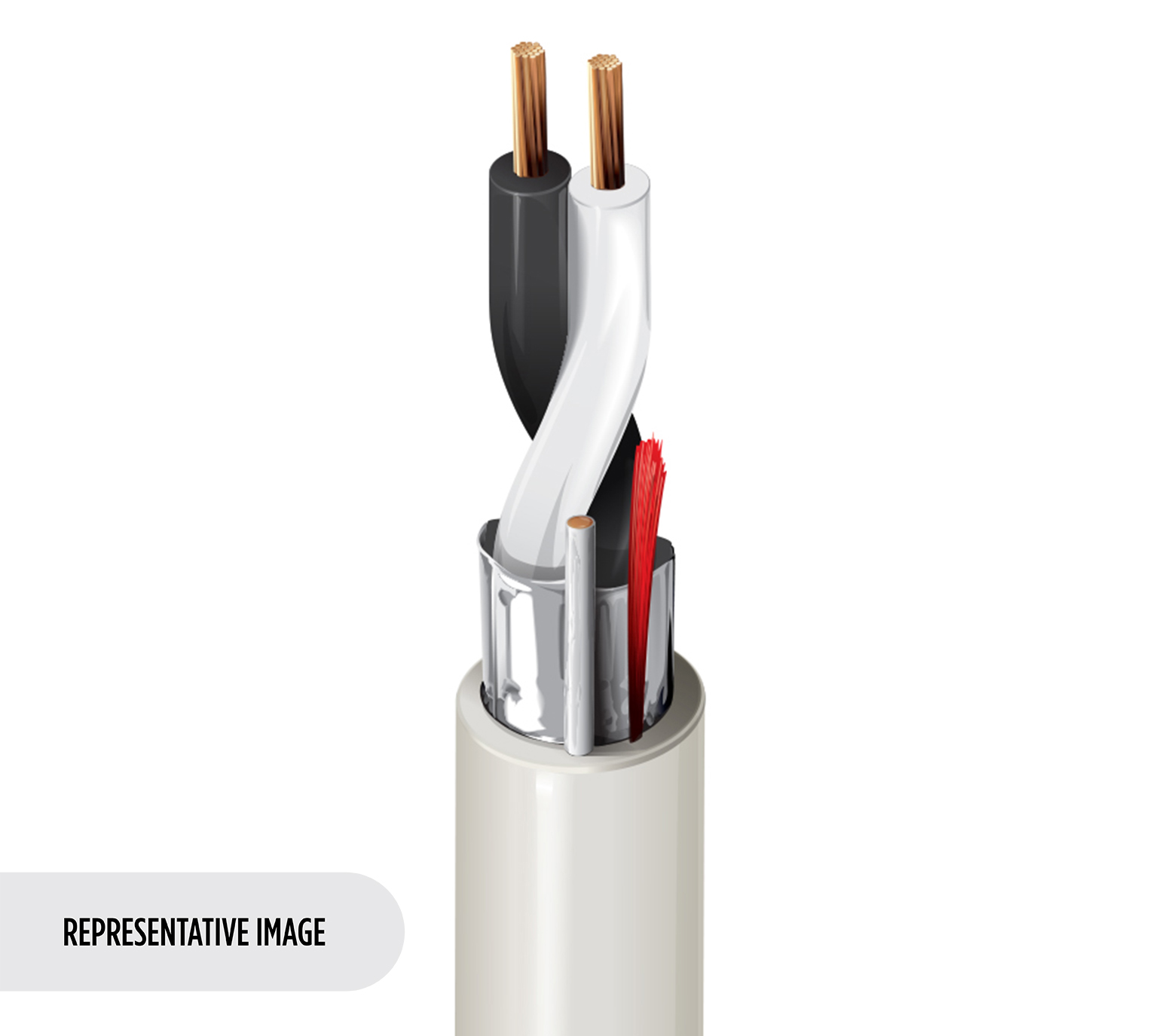

4000FE
  • 4000FE
1 of 1

Specifications

Expand All

Suitable Applications

Commercial applications

Conductor

Size Stranding Material
12 AWG 19x25 BC - Bare Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter Color Code
PP - Polypropylene 0.35 mm (0.014 in) 3 mm (0.12 in) Black, White

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.38 mm (0.015 in) 7.1 mm (0.28 in) Yes

Outer Jacket1 Table Notes

Ripcord provided under sheath

Overall Cable Diameter (Nominal)

7.1 mm (0.28 in)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
5.2 Ohm/km (1.6 Ohm/1000ft) 105 pF/m (32.0 pF/ft) 380 pF/m (120 pF/ft) 12 A

Nom Outer Shield DCR

23.3 Ohm/km (7.10 Ohm/1000ft)

Temperature

Operating Installation Storage
-20°C To +70°C -20°C To +70°C -30°C To +70°C

Bend Radius

Installation Min.
71 mm (2.8 in)

Max. Pull Tension

420 N (94 lbf)

Environmental Suitability

Indoor, Indoor, Non-Halogenated

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2)

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.351 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.351 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
4000FE.00500 Gray Reel 500 m 8719605006158
4000FE.001000 Gray Reel 1,000 m 8719605006141
