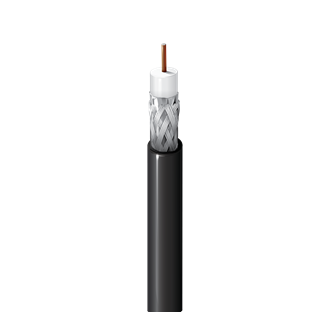

1829A

Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CM

...
Broadband Coax, Series 6, 18 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CM
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Broadband, Cable Television (CATV), RF drop cable, Direct Broadcast Satellite (DBS), Over-The-Air (OTA) antennas

Construction Details

Series Type

6

Conductor
Size Stranding Nom. Diameter Material
18 AWG Solid 0.040 in BCCS - Bare Copper Covered Steel
Insulation
Material Nom. Insulation Diameter
PE - Polyethylene (Foam) 0.180 in (4.57 mm)
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.270 in (6.86 mm)

Overall Cable Diameter (Nominal)

0.270 in (6.86 mm)

Electrical Characteristics
Return Loss
Frequency Min. Structural Return Loss
950 - 2250 MHz 15 dB
2250 - 3000 MHz 10 dB
Attenuation
Frequency Max. Attenuation
5 MHz 0.58 dB/100ft
55 MHz 1.60 dB/100ft
211 MHz 3.05 dB/100ft
250 MHz 3.30 dB/100ft
270 MHz 3.37 dB/100ft
300 MHz 3.55 dB/100ft
330 MHz 3.74 dB/100ft
350 MHz 3.85 dB/100ft
400 MHz 4.15 dB/100ft
450 MHz 4.40 dB/100ft
500 MHz 4.66 dB/100ft
550 MHz 4.90 dB/100ft
600 MHz 5.10 dB/100ft
750 MHz 5.65 dB/100ft
870 MHz 6.11 dB/100ft
1000 MHz 6.55 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
28 Ohm/1000ft (92 Ohm/km) 9 Ohm/1000ft (30 Ohm/km) 16.2 pF/ft (53.1 pF/m) 75 Ohm 83%
Voltage
UL Voltage Rating
300 V (CM)
Mechanical Characteristics
Temperature
Operating
-40°C to +75°C
Bend Radius
Installation Min.
2.7 in

Max. Pull Tension

150 lbs (68 kg)

Bulk Cable Weight

27 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor, Sunlight Resistance

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

CM, CATV

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

ANSI/SCTE 74

History

Update and Revision

Revision Number: 0.359 Revision Date: 04-08-2022

Part Numbers
Item # Color Putup Type Length UPC
1829A 0101000 Black Reel 1,000 ft 612825123910
1829A 010U1000 Black UnReel 1,000 ft 612825123903
1829A 0081000 Gray Reel 1,000 ft 612825123873
1829A 008U1000 Gray UnReel 1,000 ft 612825123866
1829A 0091000 White Reel 1,000 ft 612825123897
1829A 009U1000 White UnReel 1,000 ft 612825123880
1829A Q5H1000 White, Neutral Reel 1,000 ft 612825123859
1829A Q5HU1000 White, Neutral UnReel 1,000 ft 612825123842
