FX Fusion OM3-4 SC Simplex 900

Fusion Splice-On Connector, OM3-4 SC Simplex 900μm

...

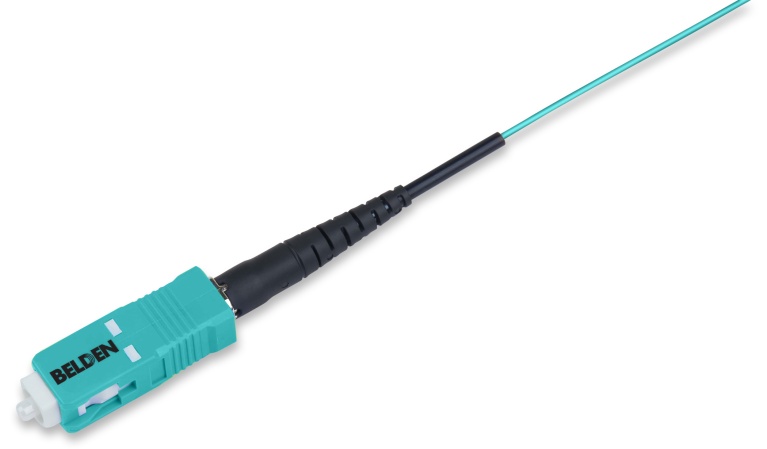

FX Fusion Splice-On Connector, OM3-4, SC Simplex, 900µm Tight Buffer, Aqua Housing
Get Product Alerts
Specifications
Product Overview

Environmental Space

Indoor, Outdoor

Suitable Applications

Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units).

Construction
Fiber Cable Construction
Fiber Type
OM3

Weight

0.021 kg

Height

9.652 mm

Width

6.096 mm

Length

79.756 mm

Mechanical Characteristics
Mechanical Specifications
Test TIA 568.3-D (MM)
Intermateability Requirement FOCIS compliant with latest revision of TIA-604-3 (SC)
Operating Temp Range -40° to 85°C
Storage Temp Range -40° to 75°C
Durability 500 Insertions
Cable retention, straight pull 0.51 kg
Cable retention, 90 degree pull 0.2 kg
Flex 0.20 kg
Twist 0.20 kg
Transmission with Applied Load 0.7 kgf (0° & 90°), 0.25kgf (135°)

Maximum Insertion Loss

0.2 dB

Minimum Reflectance @ 1550nm

-25 dB

Mechanical Tests
Description

Termination Style

Splice-On

Durabilities@Termination1

500 Insertions

Temperature Range

Operating Temp Range

-40° to 85°C

Storage Temp Range

-40° to 75°C

Product Material
Materials
Description Material Color
Boot Rubber Black
Protective Ferrule Cap Plastic Opaque
Connector Front Housing Plastic Aqua
Connector Rear Housing Nickel plated zinc alloy diecast
Ferrule Zirconia-Ceramic White
Standards

TIA/EIA Compliance

TIA 568.3-D

EU RoHS Compliance Date (yyyy-mm-dd)

2013-01-01

MII Order #39 (China RoHS)

EUP 50

Included Parts

900 µm boot, protective ferrule cap, splice protection sleeve

Related Parts

FX Splice-On Installation Kit, FX Pigtails.

Product Notes

Packaging

One (1) connector per pack, each in a dust and moisture resistant clam-shell package

History

Update and Revision

Revision Number: 0.60 Revision Date: 03-17-2021
