Data Connectors - BRSCCS 8X/9

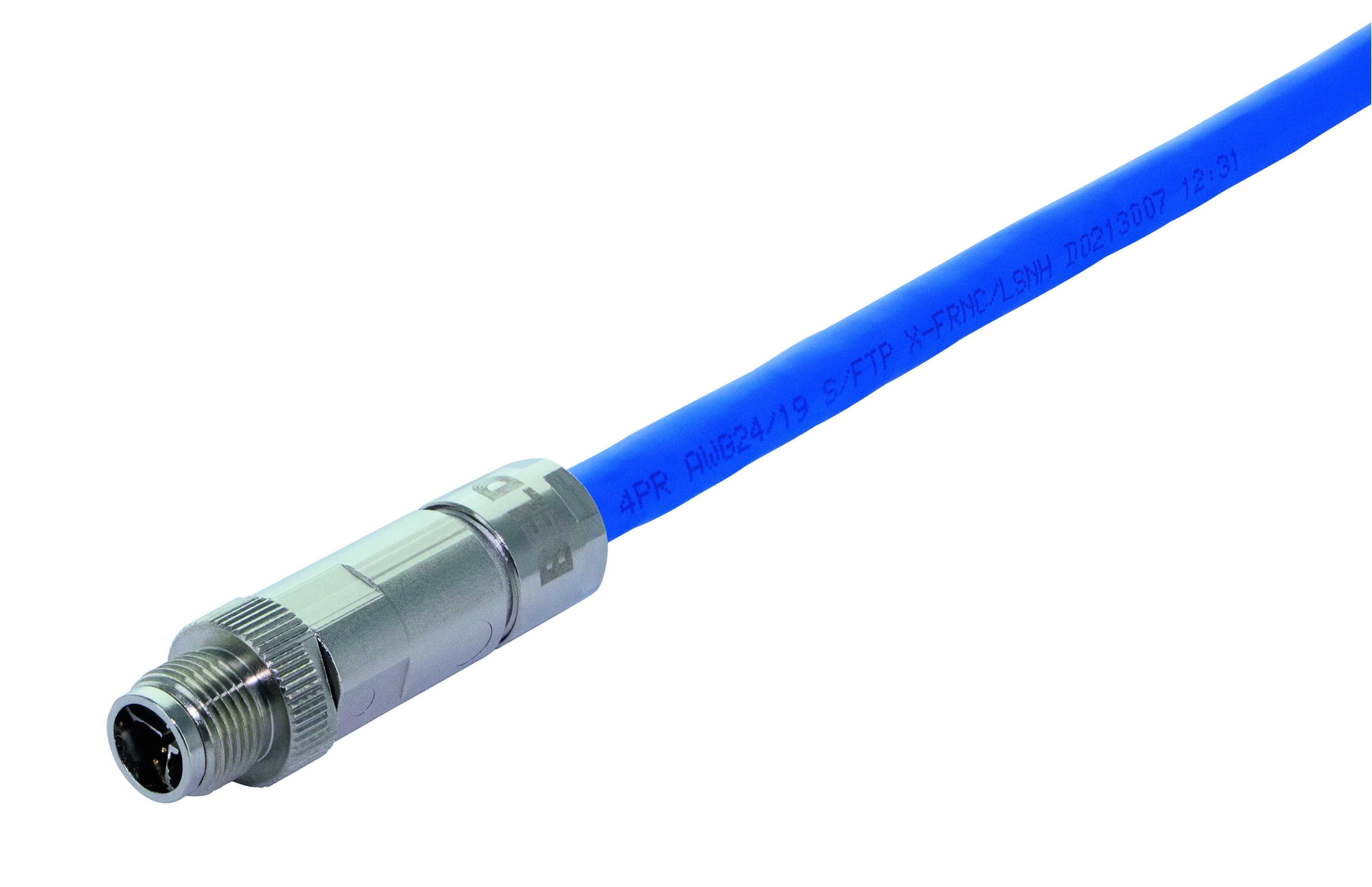

M12 Data Field Attachable, crimp termination, robust metal housing, IP67, 8-pin, X-coded, shielded, straight, 48V, 0.5A, suited for rail application acc. to EN45545, Cat6a

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources
Where to buy

Specifications

Expand All

Face View

Product Family	Data Connector
Side 1 Product Sub Family	Data Connector
Connector Type	Field attachable
Side 1 Type of Contact/Gender	male
Connector Design	straight
Number of Pins	8 (included in the packaging)
Coding, Side 1	X
Shielding Type	Shielded
Attachment Type	Coupling Screw
Voltage Rating	48V
Rated Impulse Voltage	1.5kV
Operating Voltage	50 V AC / 60 V DC
Data Transmission Type	Category 6A
Data Transmission Rate	10 Gbit/s
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^8 Ohm
Mating Cycles	˃ 200
Type of Connection	crimp
Maximum Wire Isolation Diameter	Ø 6 mm to Ø 8,5 mm
Strain-Relief	cable gland
Suitable Cables	gaskets enclosed Ø6 - Ø8.5 mm
Ambient Temperature (Operation)*	-55 °C to +85 °C, notice derating
Protection Degree / IP Rating**	IP67
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	Cu Alloy
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	grey
Flammability Class (Contact Bearer)	UL 94 V-0 / F2
Housing Material	Zamak
Housing Plating	Ni
Housing Color	silver
Cable Gland Material	CuZn
Cable Gland Plating	Ni
Cable Gland Gasket	NBR
Strain-Relief Material	PBT GF
Flammability Class (Strain Relief)	UL 94 V-0 / F2
Attachment Material	CuZn
Attachment Plating	Cu/Ni
Shielding Material	CuZn, plating: Ni

Circuitry

Fastening Torque (Contact Screw)	1.5 -2.0 Nm (max. 3.0Nm), hand-tight

Safety & Environmental Compliance

RoHS Compliant	yes, with exeption

Notes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
