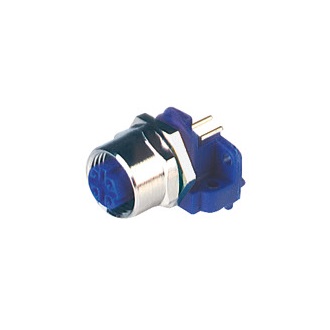

Fast Ethernet Cat5e Data Receptacle Connector: Female, rear mount, M12 - mating side, print contacts - connecting side, 4-pin, D-coded, unshielded, metallic grey housing, 50 V AC / 60 V DC, 4 A

Availability:

Global
Global inventory:

Available

Quote

Specifications
Part numbers
Resources

Specifications

Report An Error

Face View

Product Family	Data Connectors
Product Sub Family	M12 Standard
Mating Side	M12
Connecting Side	Print Contacts
Connector Type	Receptacle
Type of Contact / Gender	Female
Connector Design	Rear Mount
Number of Pins	4
Coding	D
Attachment Type	Screw-Locking
Rated Voltage	60 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Rated Current*	4 A
Data Transmission Rate	Fast Ethernet Cat5e
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Type of Connection	PCB
Thread Material	CuZn
Thread Plating	Nickel-plated
Ambient Temperature (Operation)*	- 25 °C - + 90 °C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	In style of IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	Blue
Flammability Class (Contact Bearer)	UL 94 V-2
Potted	No
Housing Material	CuZn
Housing Plating	Nickel-plated
Housing Color	Silver
Attachment Material	CuZn
Attachment Plating	Nickel-plated
O-Ring Material	FKM

Circuitry

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliant	yes

Notes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	* only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures.
Note	The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-101.

Information

Note Derating	* Notice derating
Protection Degree / IP Rating Note	* only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures.
Note	The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-101.
