Product Number: RKTS 8Y-922

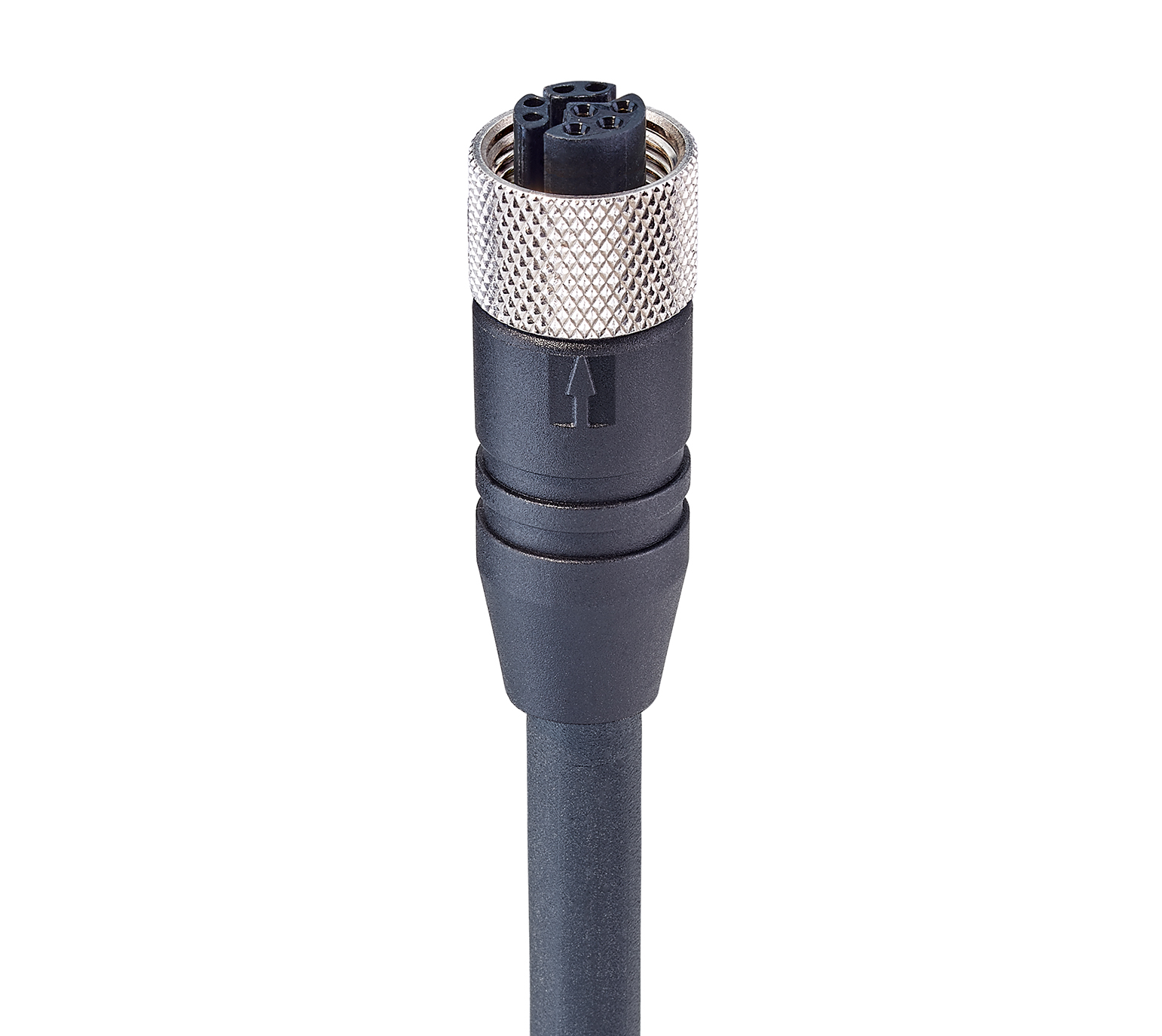

Fast Ethernet Cat5e Data Single-Ended Cordset: M12 Hybrid, female, straight, 8-pin, Y-coded, shielded, black body, 50 V AC/ DC, 0.5 A; PUR black cable, 8-wires, Data: 4x0.15 mm² + Power: 4x0.75 mm²

Fast Ethernet Cat5e Data Single-Ended Cordset: M12 Hybrid, female, straight, 8-pin, Y-coded, shielded, black body, 50 V AC/ DC, 0.5 A; PUR black cable, 8-wires, Data: 4x0.15 mm² + Power: 4x0.75 mm²

  • Availability:
    Global
  • Global inventory:
    Available
RKTS 8Y-922
  • RKTS 8Y-922
1 of 1

Specifications

Report An Error

Face View

Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8
white-orange orange white-green green blue white brown black

Product Family

Data Connectors

Product Sub Family

M12 Hybrid

Connector Type

Cordset, single ended

Type of Contact / Gender

Female

Connector Design

Straight

Number of Pins

8

Coding

Y

Shielding

Shielded

Attachment Type

Coupling Nut

Rated Voltage

50 V

Rated Voltage (UL)

50 V AC/DC

Rated Impulse Voltage

0.8 kV

Operating Voltage

50 V AC/ DC

Rated Current*

Power: 6 A; Data: 0.5 A

Rated Current (UL)*

Power: 6 A; Data: 0.5 A

Data Transmission

Fast Ethernet Cat5e

Data Transmission Rate

100 Mbit/s

Contact Resistance

≤ 10 mOhm

Insulation Resistance

˃ 10^9 Ohm

Mating Cycles

≤ 100

Ambient Temperature (Operation)*

- 40 °C - + 90 °C

Operating Temperature (UL)

max. + 80 °C

Protection Degree / IP Rating**

IP65, IP67, IP69K

Design Standard

IEC 61076-2-113

Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Overvoltage Category

III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material

CuZn

Contact Plating

Cu/Au

Contact Bearer Material

PBT-GF

Contact Bearer Color

Black

Flammability Class (Contact Bearer)

Data: UL 94 V-2 + Power: UL 94 V-0

Molded Body Material

TPU

Molded Body Color

Black

Flammability Class (Molded Body)

UL 94 HB

Attachment Material

CuZn

Attachment Plating

Nickel-plated

Shielding Material

GD-Zn, nickel-plated

Fastening Torque (Attachment)

M 12x1: (50-60) Ncm, hand-tight

Cable Number

922

Conductor Size

Data: 4x0.15 mm² + Power: 4x0.75 mm²

Number of Wires

8

Minimal Bending Radius (Fixed Inst)

˃ 6 x D

Minimal Bending Radius (Flexible Inst)

˃ 10 x D

Cycles (Bending)

˃ 1-2 M

Conductor material

Cu

Cable Jacket Material

PUR

Cable Jacket Color

black matt similarly RAL 9005

Cable Diameter D

ø 8.00 ± 0.3 mm

Wire Insulation Material

PP

Insulated Wire Diameter

Data: ø 1.15 ± 0.03 mm + Power: ø 1.70 ± 0.05 mm

Overall Shield (Cable)

Cu-ETP1 tinned

Element Shield

Shielding Foil

Ambient Temperature (Fixed Installation)

- 40 °C - + 90 °C (UL: + 80 °C)

Ambient Temperature (Flex Installation)

- 30 °C - + 70 °C

UL Cable Type

AWM: 20233

Cable Characteristics

Exclusion of dangerous materials; Exclusion of PVC and Silicone

Core Colors

Data: green, orange, white-green, white-orange + Power: brown, black, white, blue

UL-File

E315587

UL

UL 2238; cULus

RoHS Compliant

yes

Halogenfree

EN 50267-2-1, IEC 60754-1 max. 0,5% HCI

Oil Resistance

IEC 60811-2-1, ASTM 1 standard oil requirement

Note Derating

Notice derating

Protection Degree / IP Rating Note

** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Note

Do not connect or disconnect under load.

Note Derating

Notice derating

Protection Degree / IP Rating Note

** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Note

Do not connect or disconnect under load.

Part Numbers

Item # Item Description Cable Length
934845001 RKTS 8Y-922/2 M 2 m
934845002 RKTS 8Y-922/5 M 5 m
934845003 RKTS 8Y-922/10 M 10 m
934845004 RKTS 8Y-922/15 M 15 m
934845005 RKTS 8Y-922/20 M 20 m
934845006 RKTS 8Y-922/25 M 25 m
